HGA36100U31X - Square D - Molded Case Circuit Breaker

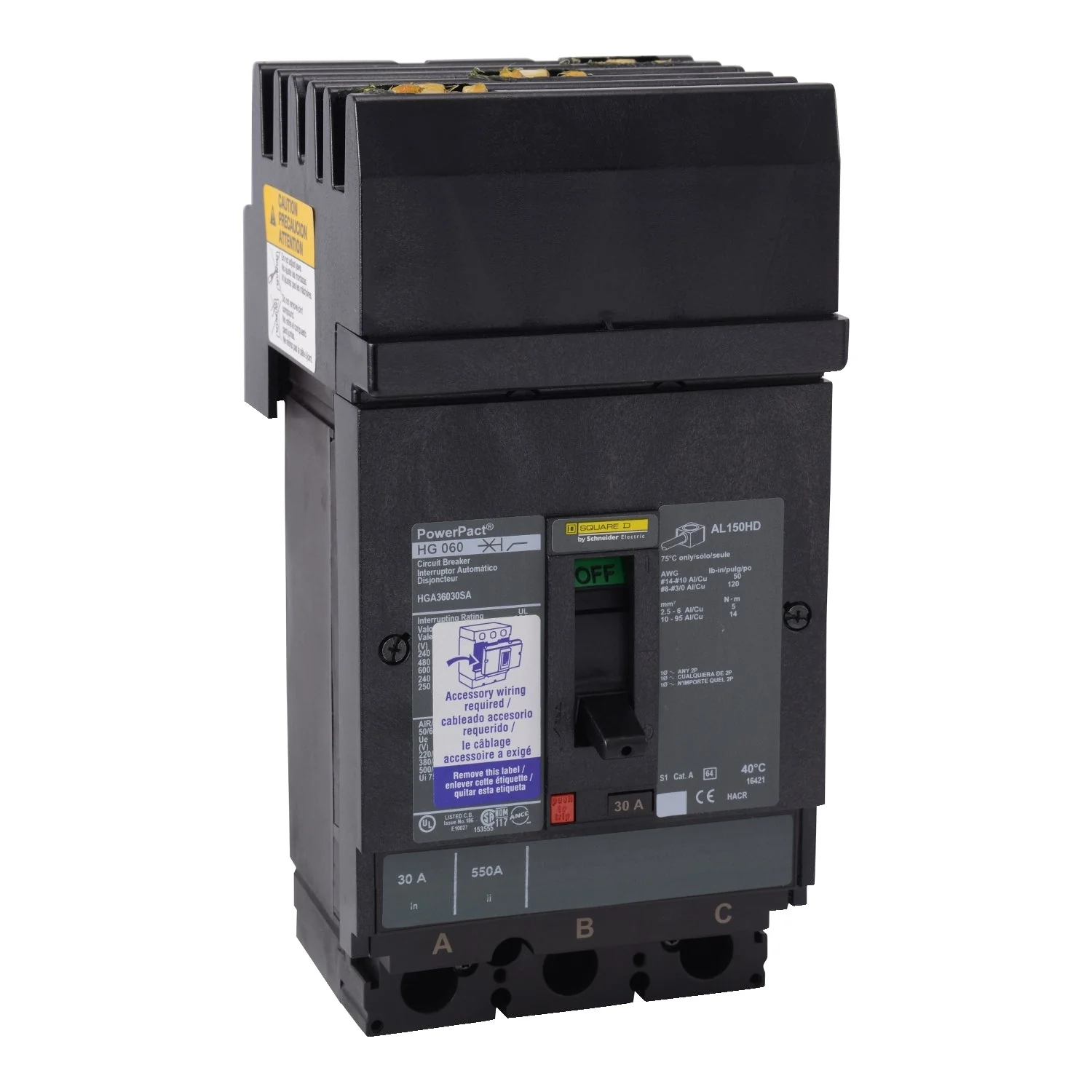

Product image 1
Product image 2

HGA36100U31X - Square D - Molded Case Circuit Breaker

Overview

Product Specifications - HGA36100U31X - Square D Powerpact Circuit Breaker

  • Category:

    Molded Case / 3-Pole

  • Connection:

    I-Line Style Plug-In

  • Type:

    HGA

  • Functions:

    LI - Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    35kA@480V

Dimensions

  • Dimensions (HxWxD):

    9.73" x 4.48" x 4.8"

  • Weight:

    4.85 lbs

Standards

CSA Approved logo

Additional Details

  • Frame Type:

    H-Frame

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    100 A

  • Mounting Mode:

    I-Line bracket

  • Breaking Capacity Code

    G

  • Electrical Connection:

    l-Line Connection line / Lugs load

  • Magnetic Hold Current:

    900 A

  • Continuous Current Rating:

    80%

  • Control Type:

    Toggle

  • AWG Gauge:

    AWG 14...AWG 3/0 aluminium/copper terminal

Product Description - HGA36100U31X - Square D Powerpact Circuit Breaker

Square D Powerpact HGA 3-phase 3-pole ABC connection, 100A 600V, 35kA@480V interrupting capacity, i-line plug-in, UL certified, reverse fed compatible, with non-interchangeable trip, LI function (Long-Time & Instantaneous), thermal-magnetic molded case circuit breakers.
