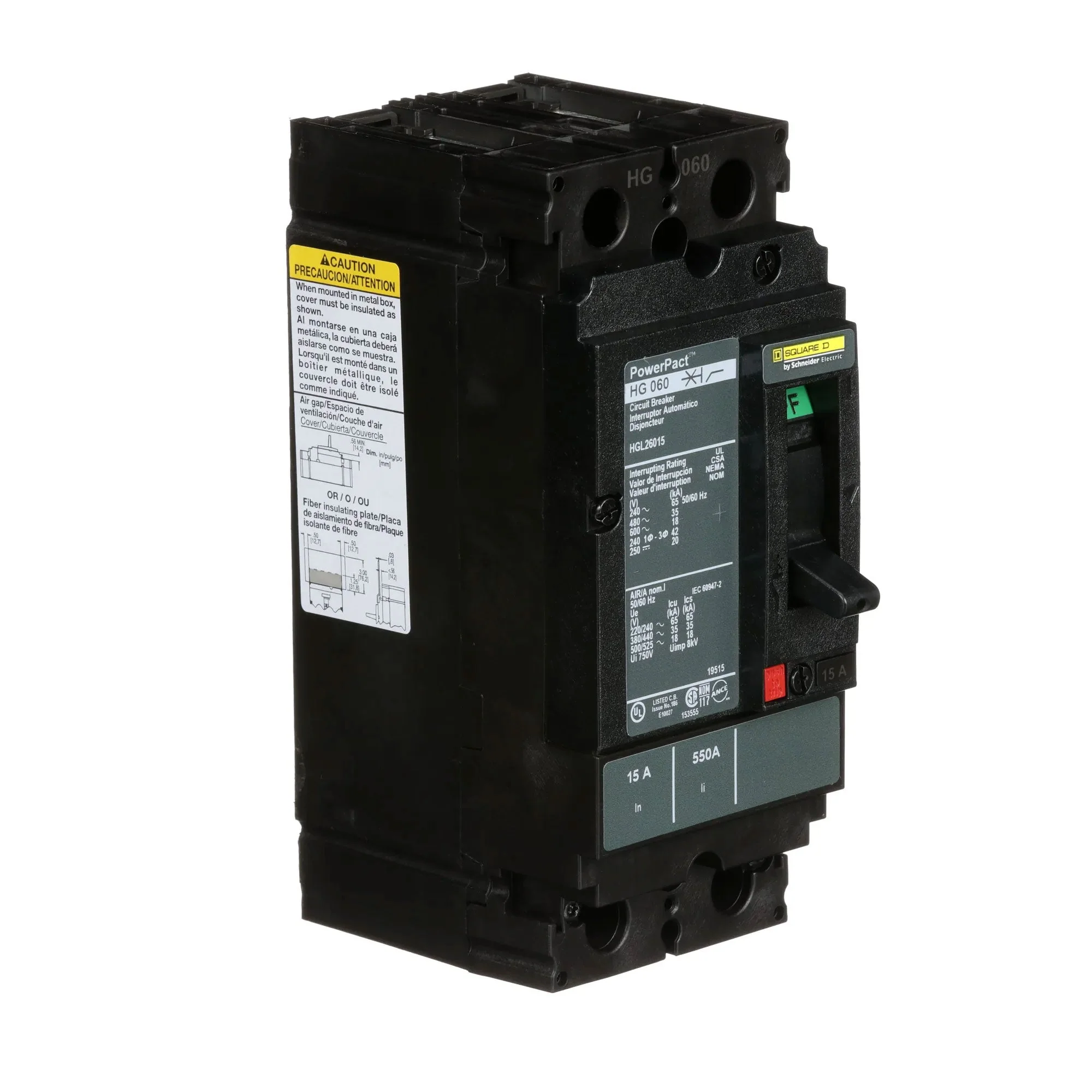

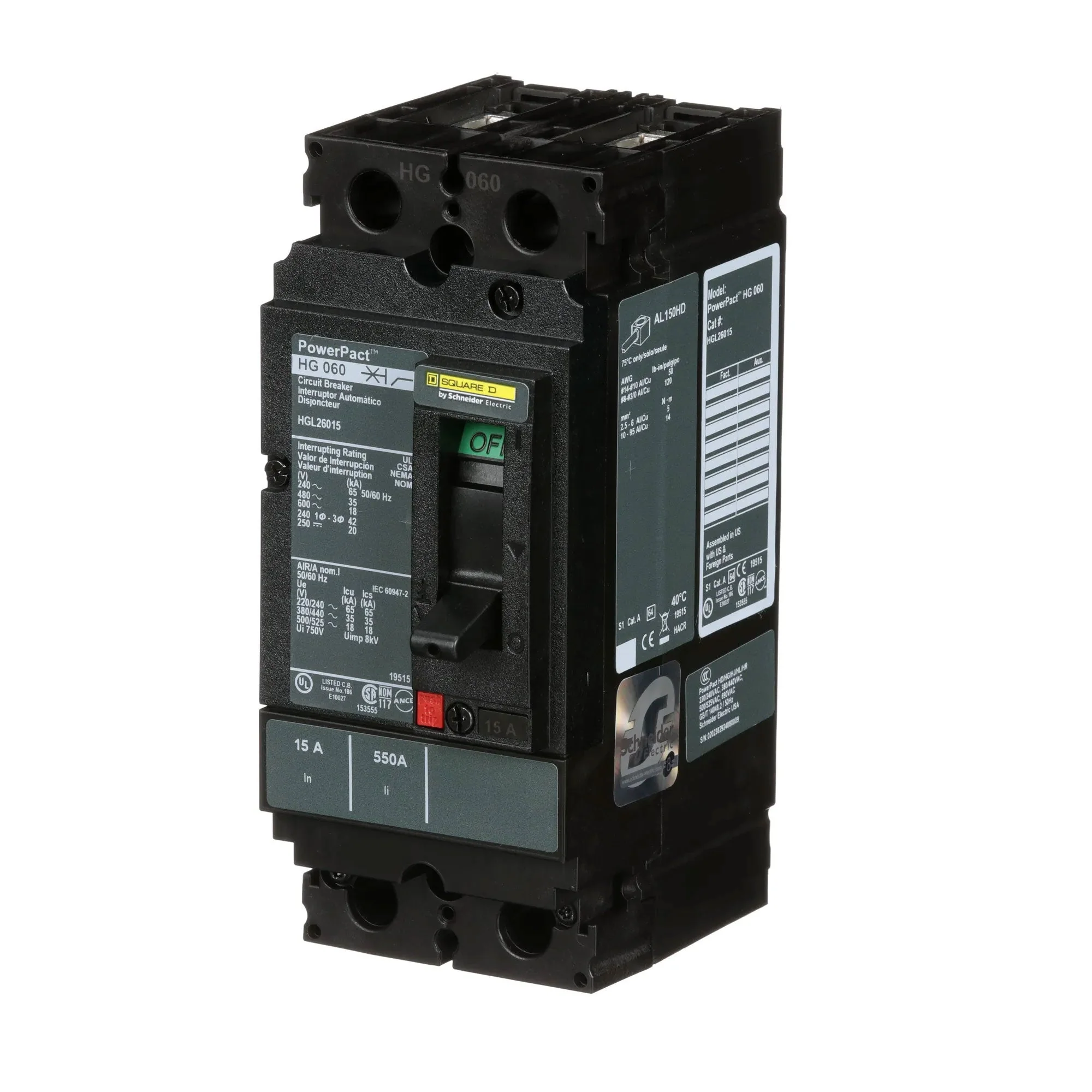

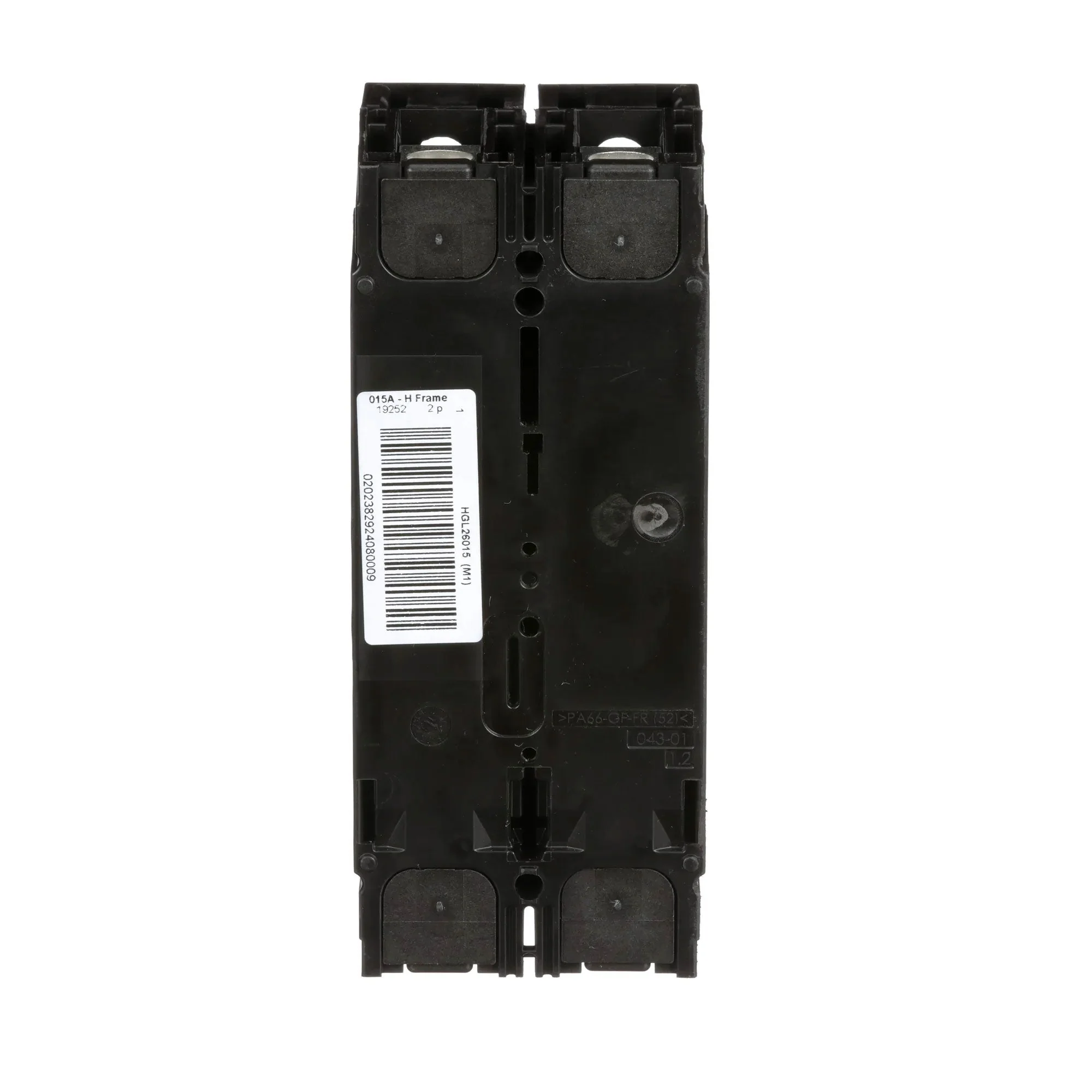

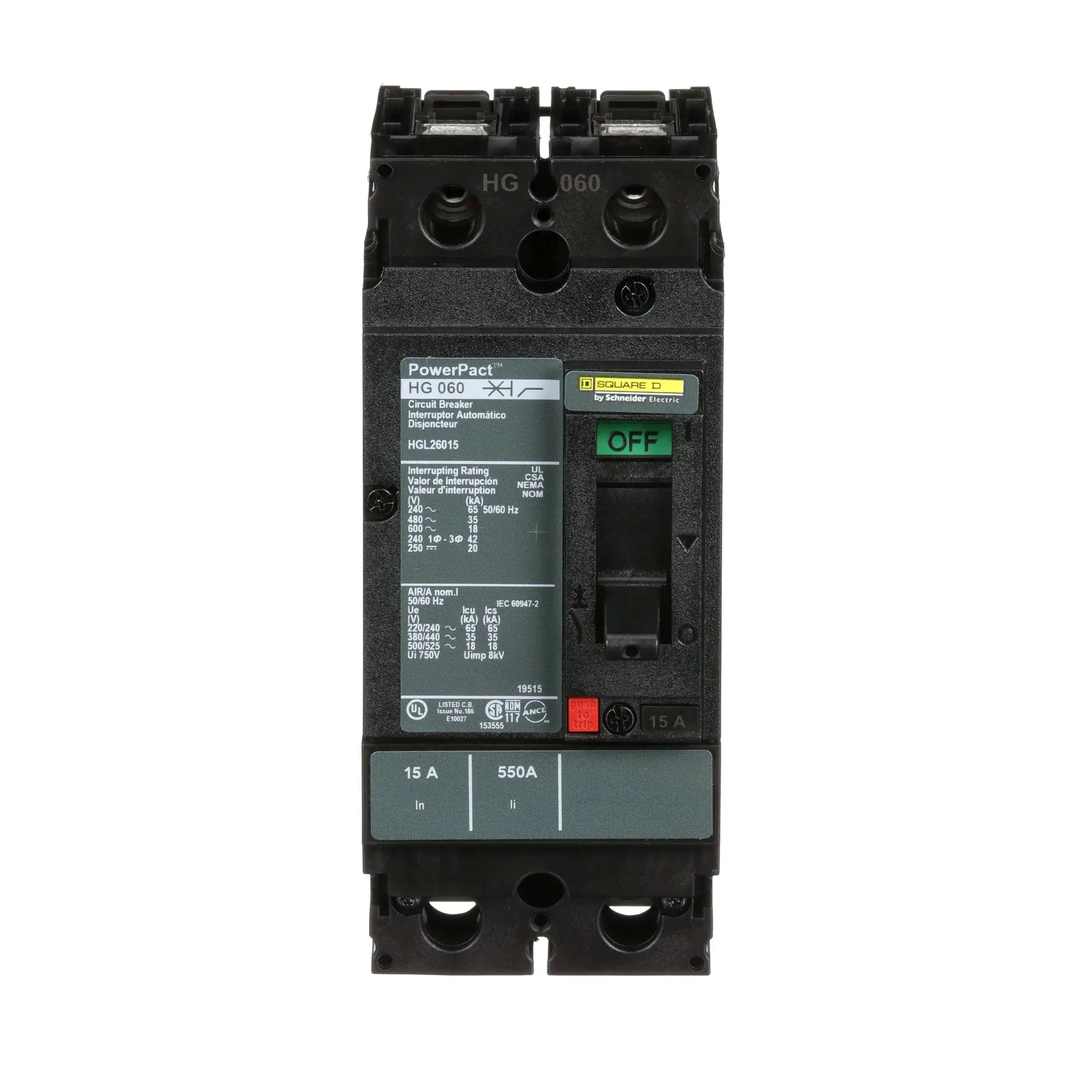

HGL26015 - Square D - Molded Case Circuit Breaker

Overview

Product Specifications - HGL26015 - Square D Powerpact Circuit Breaker

Part Number:

HGL26015
Manufacturer:

Schneider Electric / Square D
Family:

Powerpact
Pole:

2
Amp

15
Volt:

600
Phase:

1

Category:

Molded Case / 2-Pole
Connection:

Feed-Thru
Type:

HGL
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

35kA@480V

Dimensions

Dimensions (HxWxD):

6.4" x 2.74" x 4.36"

Weight:

4.85 lbs

Standards

Additional Details

Frame Type:

H-Frame
Trip Unit Technology:

Thermal-magnetic
Line Rated Current:

15 A
Mounting Mode:

Unit Mount Lug

Breaking Capacity Code

G
Electrical Connection:

Lugs line / Lugs load
Magnetic Hold Current:

350 A
Continuous Current Rating:

80%
Control Type:

Toggle
AWG Gauge:

AWG 14...AWG 3/0 aluminium/copper terminal

Product Description - HGL26015 - Square D Powerpact Circuit Breaker

Schneider Electric / Square D, Powerpact, type HGL, 2P, 1PH, 15A, 600V, 35kA@480V, high interrupting capacity, feed-thru, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers.
