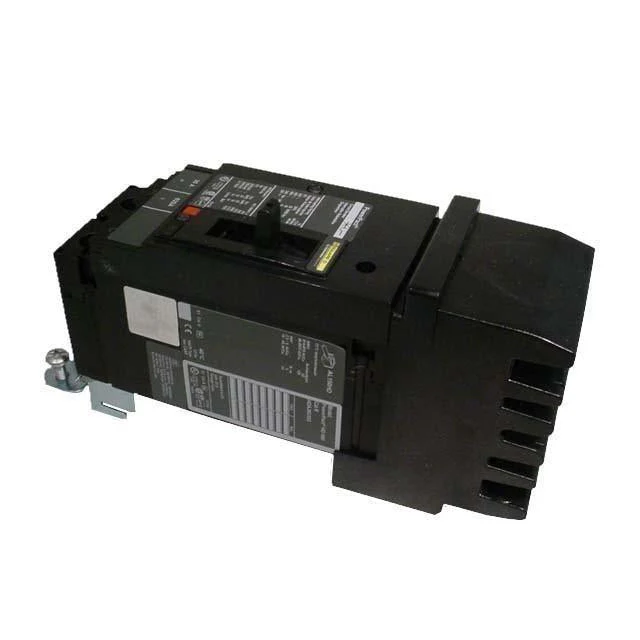

HJA260501 - Square D - Molded Case Circuit Breaker

Overview

Product Specifications - HJA260501 - Square D Molded Case Circuit Breakers

Part Number:

HJA260501
Manufacturer:

Square D
Family:

Powerpact
Pole:

2
Amp

50
Volt:

600
Phase:

1

Category:

Molded Case / 2-Pole
Connection:

I-Line Style Plug-In
Type:

HJA
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

65kA@480V

Dimensions

Dimensions (HxWxD):

9.73" x 2.94" x 4.8"
Weight:

4.85 lbs

Additional Details

Frame Type:

H-Frame
Trip Unit Technology:

Thermal-magnetic
Line Rated Current:

50 Amp
Magnetic Hold Current:

400 A
Mounting Mode:

I-Line bracket

Breaking Capacity Code:

G
Electrical Connection:

I-Line connection line / Lugs load
Continuous Current Rating:

80%
Control Type:

Toggle
AWG Gauge:

AWG 14...AWG 3/0 aluminium/copper terminal

Standards

Product Description - HJA260501 - Square D Molded Case Circuit Breakers

Square D, Powerpact, type HJA, 1PH, 2P, B & C phase connection, 50A, 600V, 65kA@480V, current limiting, i-line style plug-in, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, thermal magnetic, molded case circuit breakers.
