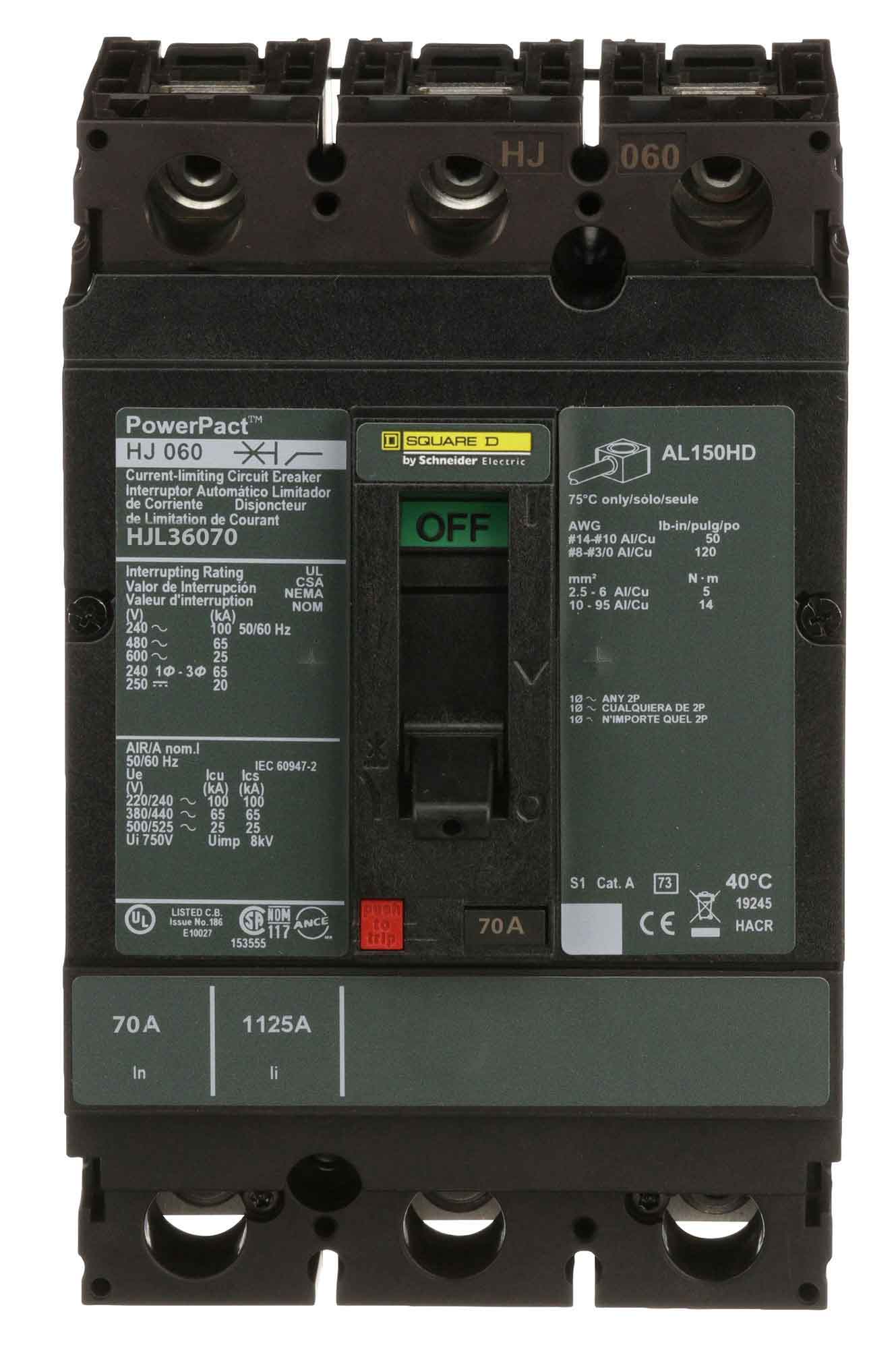

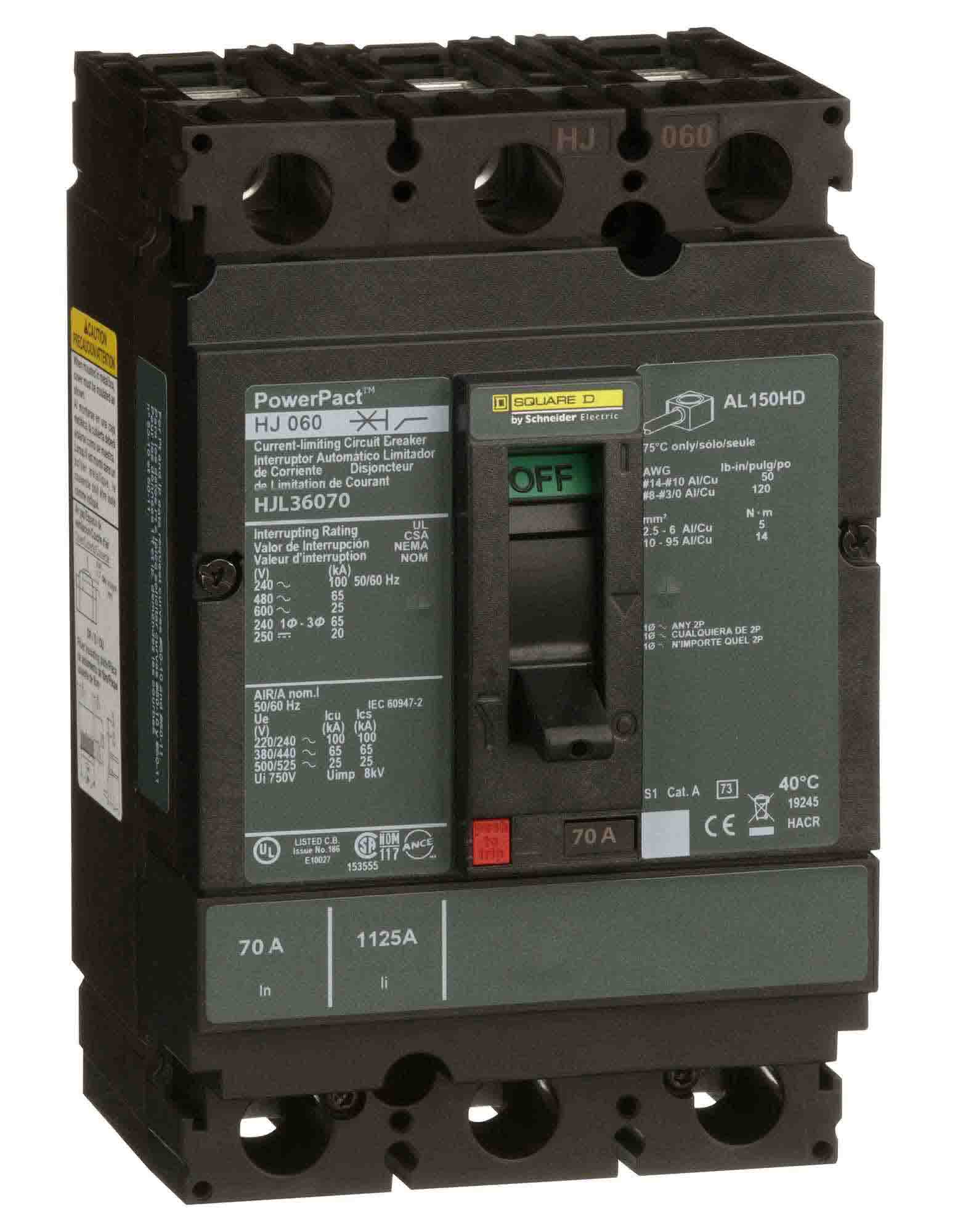

HJL36070 - Square D - Molded Case Circuit Breaker

Overview

Product Specifications - HJL36070 - Square D Powerpact Circuit Breaker

Part Number:

HJL36070
Manufacturer:

Schneider Electric / Square D
Family:

Powerpact
Pole:

3
Amp

70
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

Feed-Thru
Type:

HJL
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

65kA@480V

Dimensions

Dimensions (HxWxD):

6.4" x 4.12" x 4.36"

Weight:

4.85 lbs

Standards

Additional Details

Frame Type:

H-Frame
Trip Unit Technology:

Thermal-magnetic
Line Rated Current:

70 A
Mounting Mode:

Unit mount lug

Breaking Capacity Code

J
Electrical Connection:

Lugs line / Lugs load
Magnetic Hold Current:

800 A
Continuous Current Rating:

80%
Control Type:

Toggle
AWG Gauge:

AWG 14...AWG 3/0 aluminium/copper terminal

Product Description - HJL36070 - Square D Powerpact Circuit Breaker

Schneider Electric / Square D, Powerpact, type HJL, 3P, 3PH, 70A, 600V, 65kA@480V, UL listed, current limiting, feed-thru, suitable for reverse fed applications, complete with non-interchangeable trip.

Documentation

Catalogue

Technical Specification

Select Condition

From $153.00

Original: $509.99

-70%

HJL36070 - Square D - Molded Case Circuit Breaker—

$509.99

$153.00
