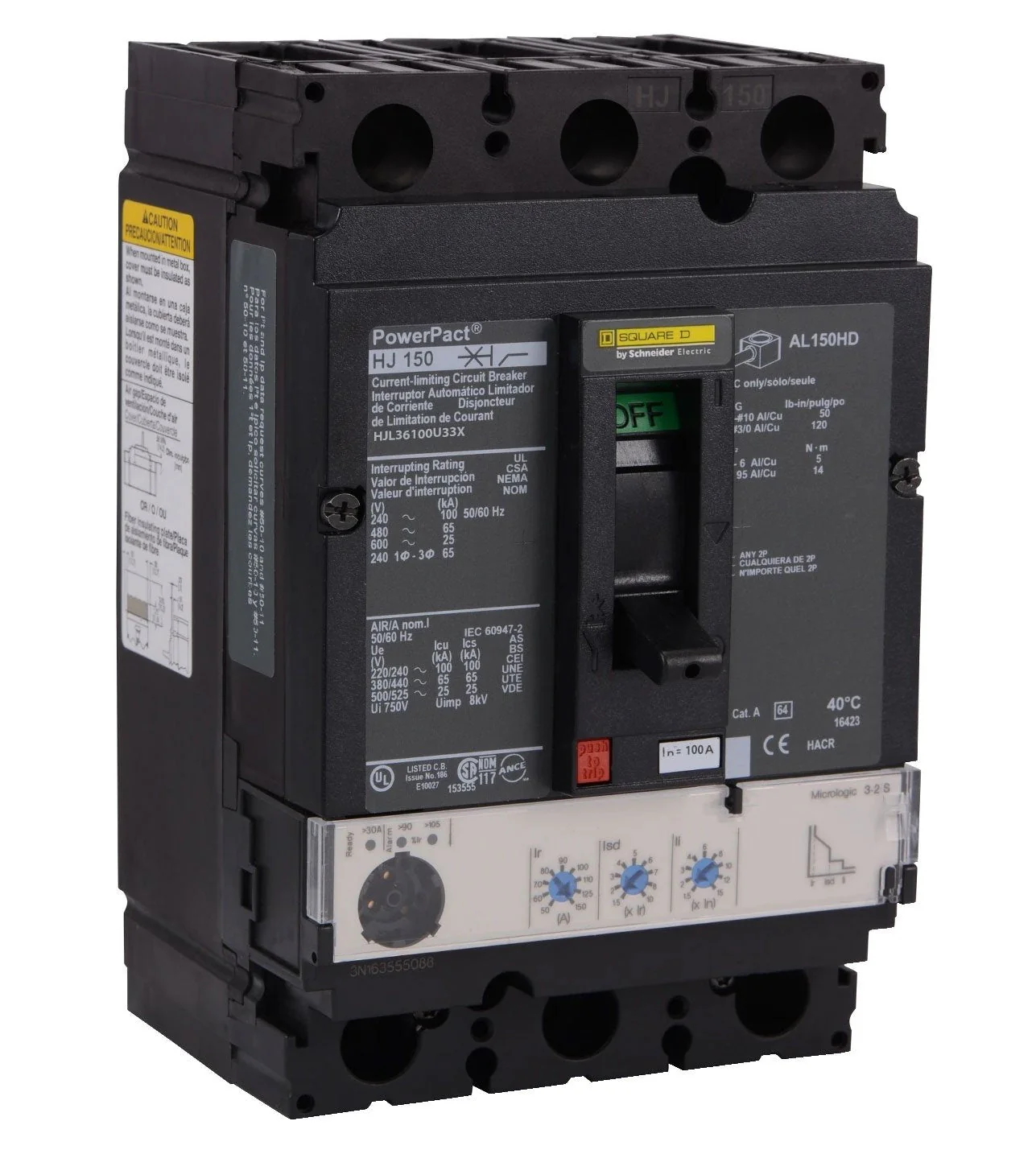

HJL36100U33X - Square D - Molded Case Circuit Breaker

Overview

Product Specifications - HJL36100U33X - Square D Molded Case Circuit Breakers

Part Number:

HJL36100U33X
Manufacturer:
Schneider Electric / Square D
Family:

Powerpact
Pole:

3
Amp

100
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

Feed-Thru
Type:

HJL
Functions:

LSI - Long-Time, Short-Time and Instantaneous
Protection:

Solid State
AIC Ratings:

65kA@480V

Dimensions

Dimensions (HxWxD):

6.42" x 4.09" x 3.39"

Weight:

4.85 lbs

Standards

Additional Details

Trip Unit Technology:

Electronic, standard, MicroLogic 3.2 S, LSI
Line Rated Current:

100 Amp
Mounting Mode:

Unit mount lug

Breaking Capacity Code

J
Electrical Connection:

Lugs line / Lugs load
Continuous Current Rating

80%
Control Type:

Toggle
AWG Gauge:

AWG 14...AWG 3/0 aluminium/copper terminal

Product Description - HJL36100U33X - Square D Molded Case Circuit Breakers

Schneider Electric / Square D, Powerpact, type HJL, 3P, 3PH, 100A, 600V, 25kA@600V, 65kA@480V, 100kA@240V, current limiting, feed-thru, UL listed, suitable for reverse fed applications, can be used for 2P applications, complete with micrologic standard non-interchangeable trip, LSI - Long-Time, Short-Time and Instantaneous trip functions and line & load side lug terminals, solid state electronic, molded case circuit breakers

Documentation

Catalogue

Installation Instructions

Technical Specifications

Select Condition

From $292.50

Original: $974.99

-70%

HJL36100U33X - Square D - Molded Case Circuit Breaker—

$974.99

$292.50
