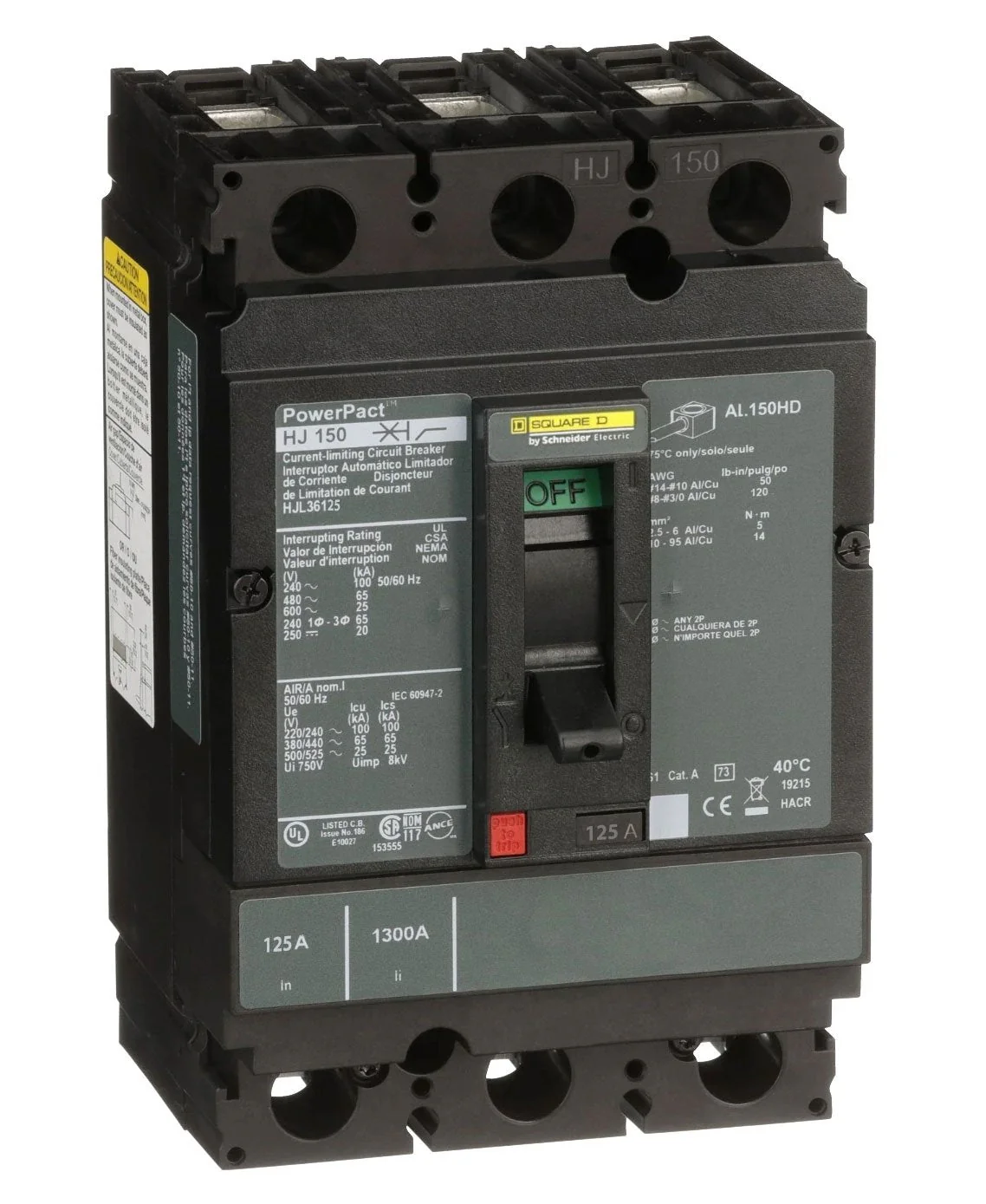

HJL36125 - Square D - Molded Case Circuit Breaker

Overview

Product Specifications - HJL36125 - Square D Molded Case Circuit Breakers

Part Number:

HJL36125
Manufacturer:
Schneider Electric / Square D
Family:

Powerpact
Pole:

3
Amp

125
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

Feed-Thru
Type:

HJL
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

65kA@480V

Dimensions

Dimensions (HxWxD):

6.42" x 4.09" x 3.39"

Weight:

4.85 lbs

Standards

Additional Details

Trip Unit Technology:

Thermal-magnetic
Line Rated Current:

125 Amp
Mounting Mode:

Unit mount lug

Breaking Capacity Code

J
Electrical Connection:

Lugs line / Lugs load
Magnetic Hold Current:

900 Amp
Continuous Current Rating

80%
Control Type:

Toggle
AWG Gauge:

AWG 14...AWG 3/0 aluminium/copper terminal

Product Description - HJL36125 - Square D Molded Case Circuit Breakers

Schneider Electric / Square D, Powerpact, type HJL, 3P, 3PH, 125A, 600V, 65kA@480V, UL listed, current limiting, feed-thru, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers

Documentation

Catalogue

Installation Instructions

Technical Specifications

Select Condition

From $974.99

HJL36125 - Square D - Molded Case Circuit Breaker—

$974.99

Select Condition

From $974.99

HJL36125 - Square D - Molded Case Circuit Breaker—

$974.99
