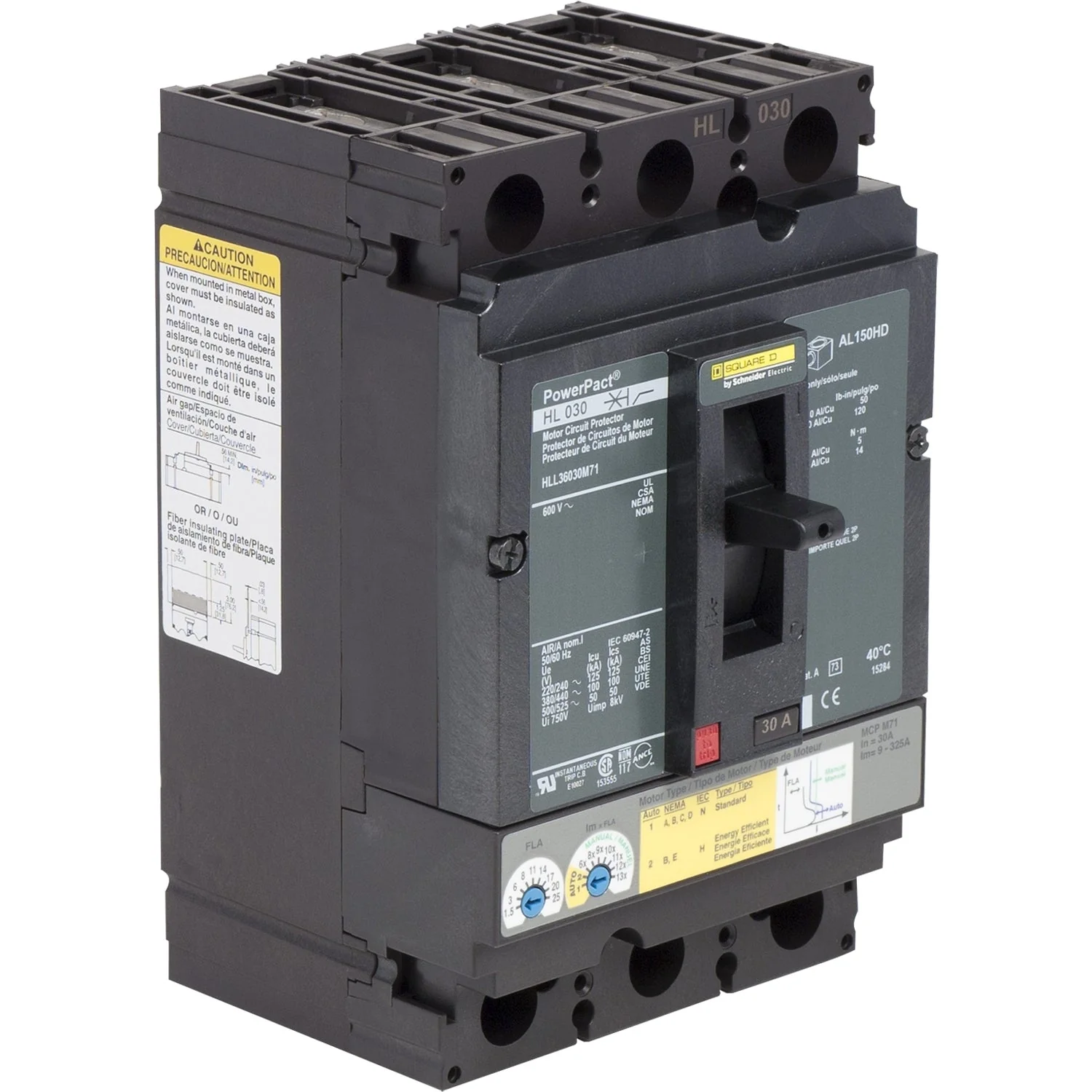

HLL36030M71 - Square D - Molded Case Circuit Breaker

Overview

Product Specifications - HLL36030M71 - Square D Molded Case Circuit Breakers

Part Number:

HLL36030M71
Manufacturer:

Square D
Family:

Powerpact
Pole:

3
Amp

30
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

Feed-Thru
Type:

HLL
Functions:

I - Instantaneous
Protection:

Magnetic Only
AIC Ratings:

100kA@480V

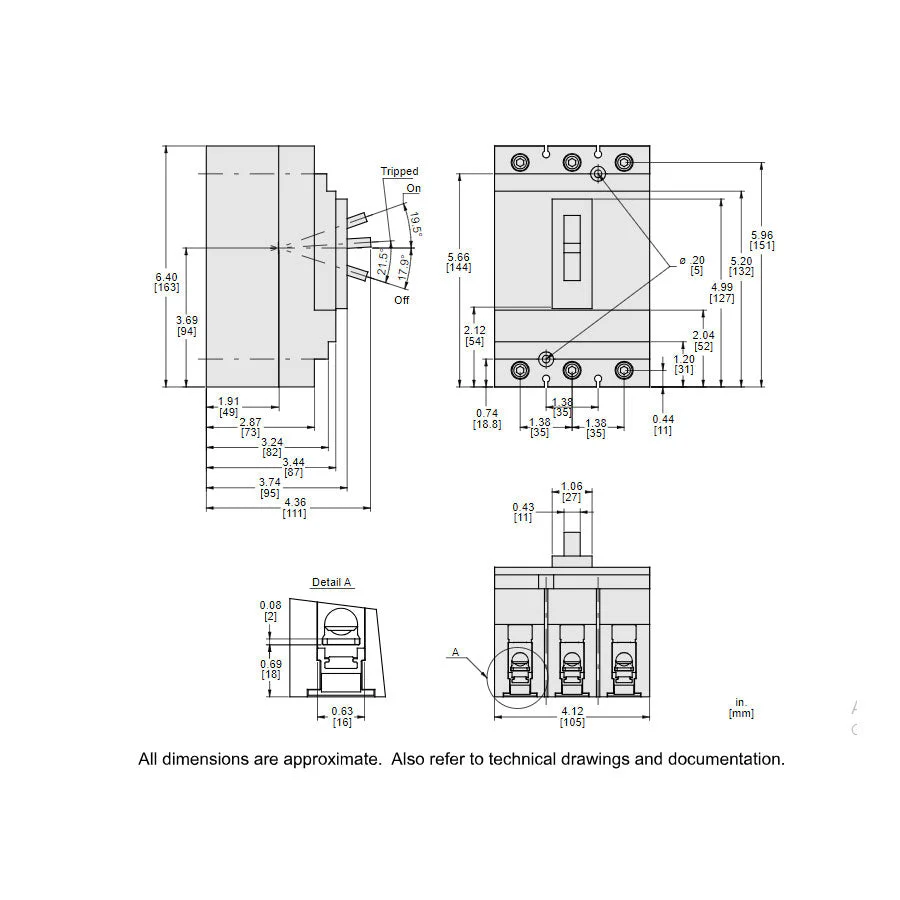

Dimensions

Dimensions (HxWxD):

6.42" x 4.09" x 3.39"
Weight:

4.85 lbs

Additional Details

Frame Type:

H-Frame
Trip Unit Technology:

Thermal-magnetic
Line Rated Current:

30 Amp
Mounting Mode:

Unit Mount

Breaking Capacity Code:

L
Electrical Connection:

Lugs line / Lugs load
Continuous Current Rating:

80%
Control Type:

Toggle
AWG Gauge:

AWG 14...AWG 3/0 aluminium/copper terminal

Standards

Product Description - HLL36030M71 - Square D Molded Case Circuit Breakers

Schneider Electric,Square D, Powerpact, type HLL, 3P, 3PH, 30A, 600V, 100kA@480V, UL listed, current limiting, feed-thru, suitable for reverse fed applications, complete with I - Instantaneous protection only and line & load side lug terminals, MCP, motor circuit protector, magnetic range 9-325A, magnetic only.

Documentation

Catalogue

Technical Specifications
