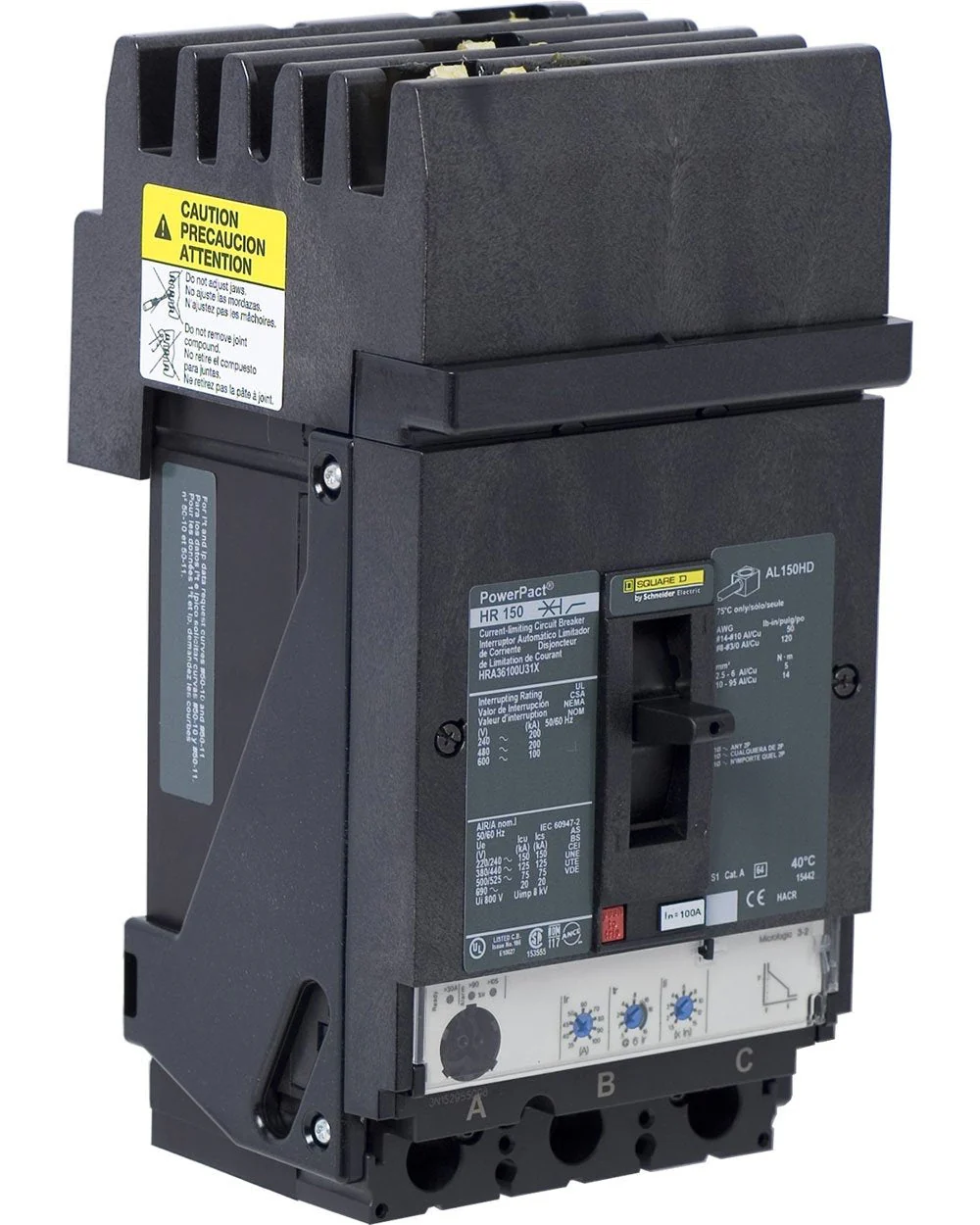

HRA36100U31X - Square D - Molded Case Circuit Breaker
Overview
Product Specifications - HRA36100U31X - Square D Powerpact Circuit Breaker
-
Part Number:
HRA36100U31X -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
100 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
HRA -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
200kA@480V
Dimensions
-
Dimensions (HxWxD):
9.73" x 4.48" x 4.36"
-
Weight:
4.85 lbs
Standards
Additional Details
-
Frame Type:
H-Frame -
Trip Unit Technology:
Electronic, standard, MicroLogic 3.2, LI -
Line Rated Current:
100 A -
Mounting Mode:
I-Line bracket
-
Breaking Capacity Code:
R -
Electrical Connection:
I-Line connection line / Lugs load -
Continuous Current Rating:
80% -
Control Type:
Toggle -
AWG Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Product Description - HRA36100U31X - Square D Powerpact Circuit Breaker
Schneider Electric / Square D, Powerpact, type HRA, 3P, 3PH, 100A, 600V, 2<span data-mce-fragment="1">00kA@48</span><span data-mce-fragment="1">0</span><span data-mce-fragment="1">V,</span> 100kA@600V, UL listed, I-line style plug-in, phase ABC, 80% rated, molded case circuit breakers.
