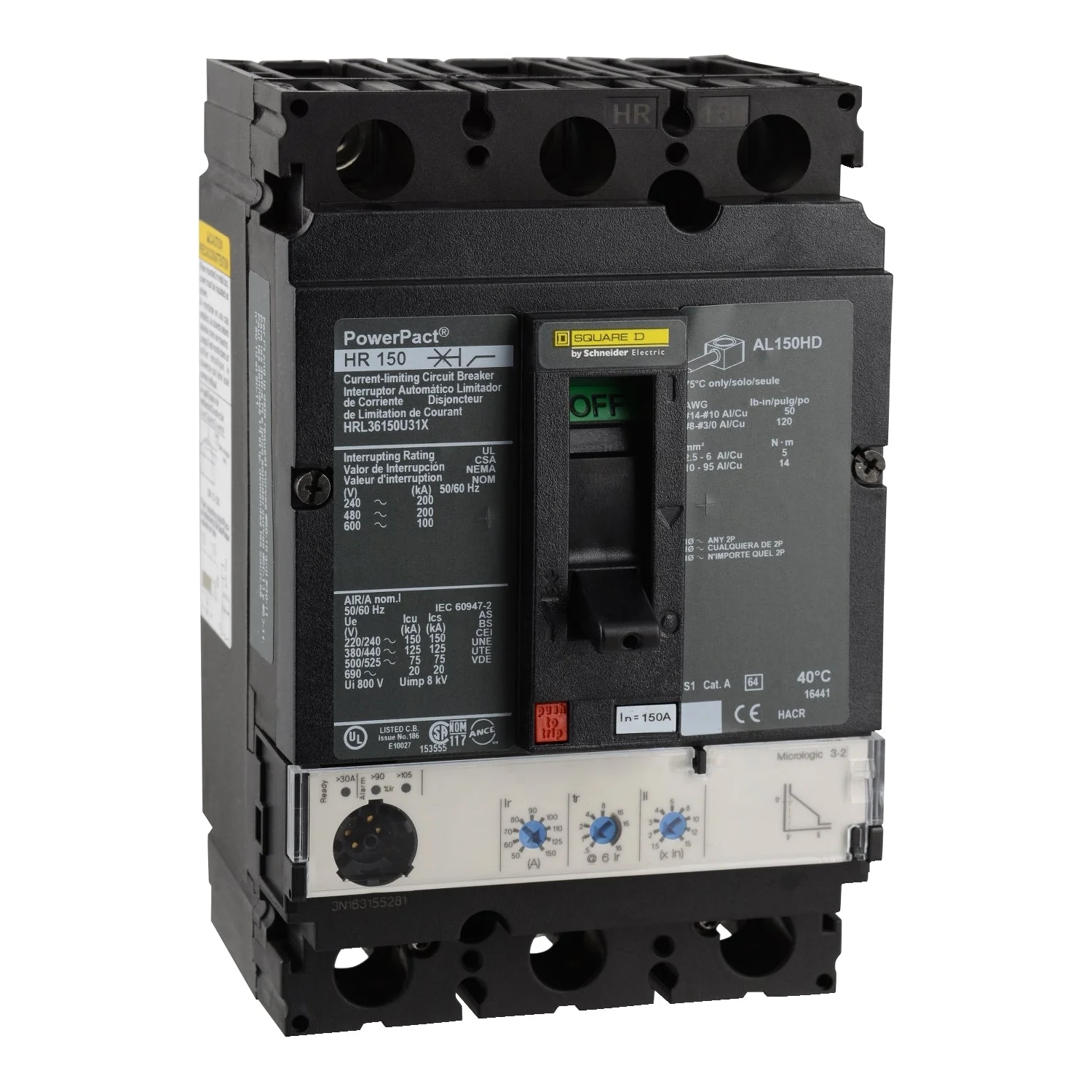

HRL36150U31X - Square D - Molded Case Circuit Breaker

Overview

Product Specifications - HRL36150U31X - Square D Powerpact Circuit Breaker

Part Number:

HRL36150U31X
Manufacturer:

Schneider Electric / Square D
Family:

Powerpact
Pole:

3
Amp

150
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

I-Line Style Plug-In
Type:

HRL
Functions:

LI - Long-Time and Instantaneous
Protection:

Solid State
AIC Ratings:

200kA@480V

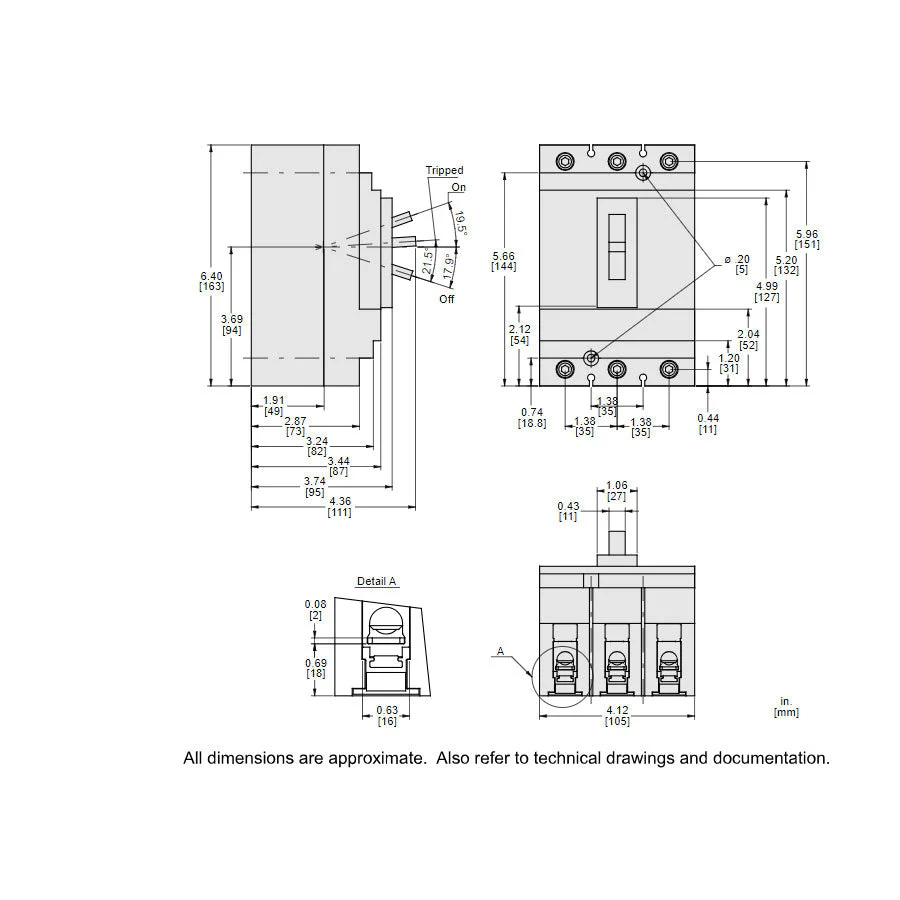

Dimensions

Dimensions (HxWxD):

6.42" x 4.09" x 3.39"

Weight:

4.85 lbs

Standards

Additional Details

Frame Type:

H-Frame
Trip Unit Technology:

Electronic, standard, MicroLogic 3.2, LI
Line Rated Current:

150 A
Mounting Mode:

I-Line bracket

Breaking Capacity Code:

R
Electrical Connection:

I-Line connection line / Lugs load
Continuous Current Rating:

80%
Control Type:

Toggle
AWG Gauge:

AWG 14...AWG 3/0 aluminium/copper terminal

Product Description - HRL36150U31X - Square D Powerpact Circuit Breaker

Square D,Schneider Electric, Powerpact, type HRL, 3P, 3PH, 150A, 600V, 200kA@480V, current limiting, feed-thru, UL listed, suitable for reverse fed applications, can be used for 2P applications, complete with micrologic standard 3.2 non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals.
