JDL36250 - Square D - Molded Case Circuit Breaker

Overview

Product Specifications - JDL36250 - Square D Powerpact Circuit Breaker

Part Number:

JDL36250
Manufacturer:

Schneider Electric / Square D
Family:

Powerpact
Pole:

3
Amp

250
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

Feed-Thru
Type:

JDA
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

18kA@480V

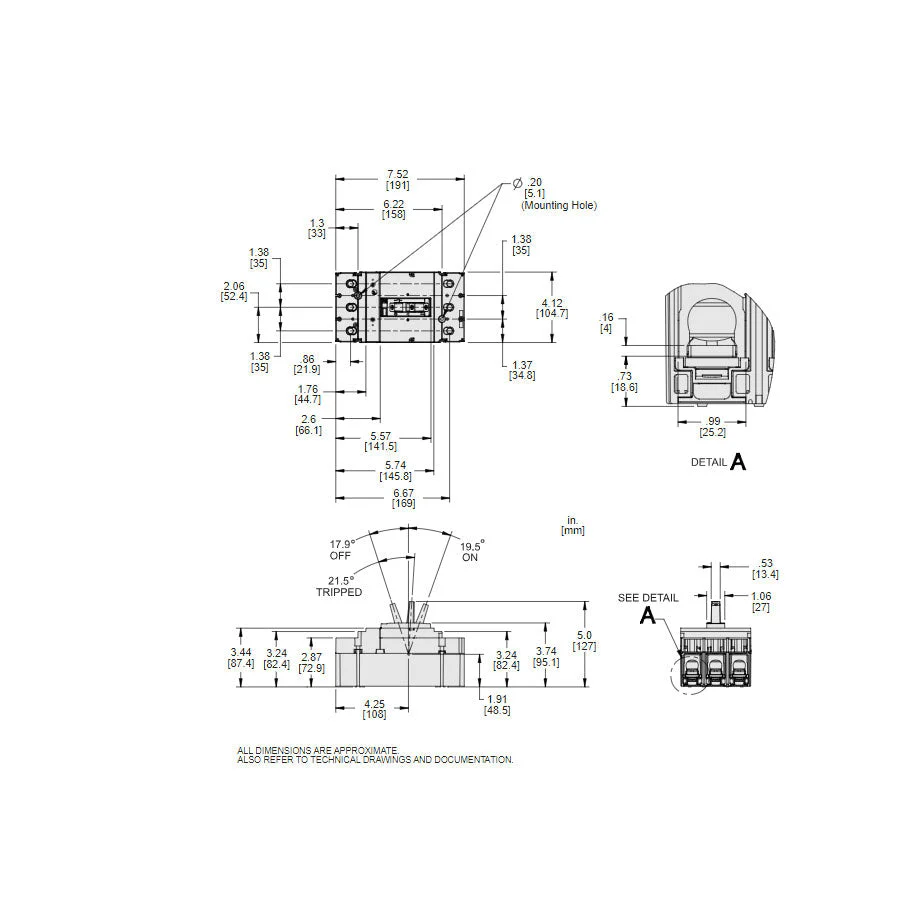

Dimensions

Dimensions (HxWxD):

7.52" x 4.12" x 5"

Weight:

5.29 lbs

Standards

Additional Details

Protection Type:

Overload protection / Short-circuit protection
Frame Type:

J-Frame
Trip Unit Technology:

Thermal-magnetic
Line Rated Current:

250 Amp
Mounting Mode:

Unit Mount Lug

Breaking Capacity Code:

D
Electrical Connection:

Lug line / Lugs load
Magnetic Hold Current:

1250 Amp
Continuous Current Rating:

80%
Control Type:

Toggle
AWG Gauge:

AWG 4...AWG 4/0 aluminium/copper terminal

Product Description - JDL36250 - Square D Powerpact Circuit Breaker

Schneider Electric / Square D, Powerpact, type JDL, 3P, 3PH, 250A, 600V, 18kA@480V, standard interrupting capacity, feed-thru, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers.
