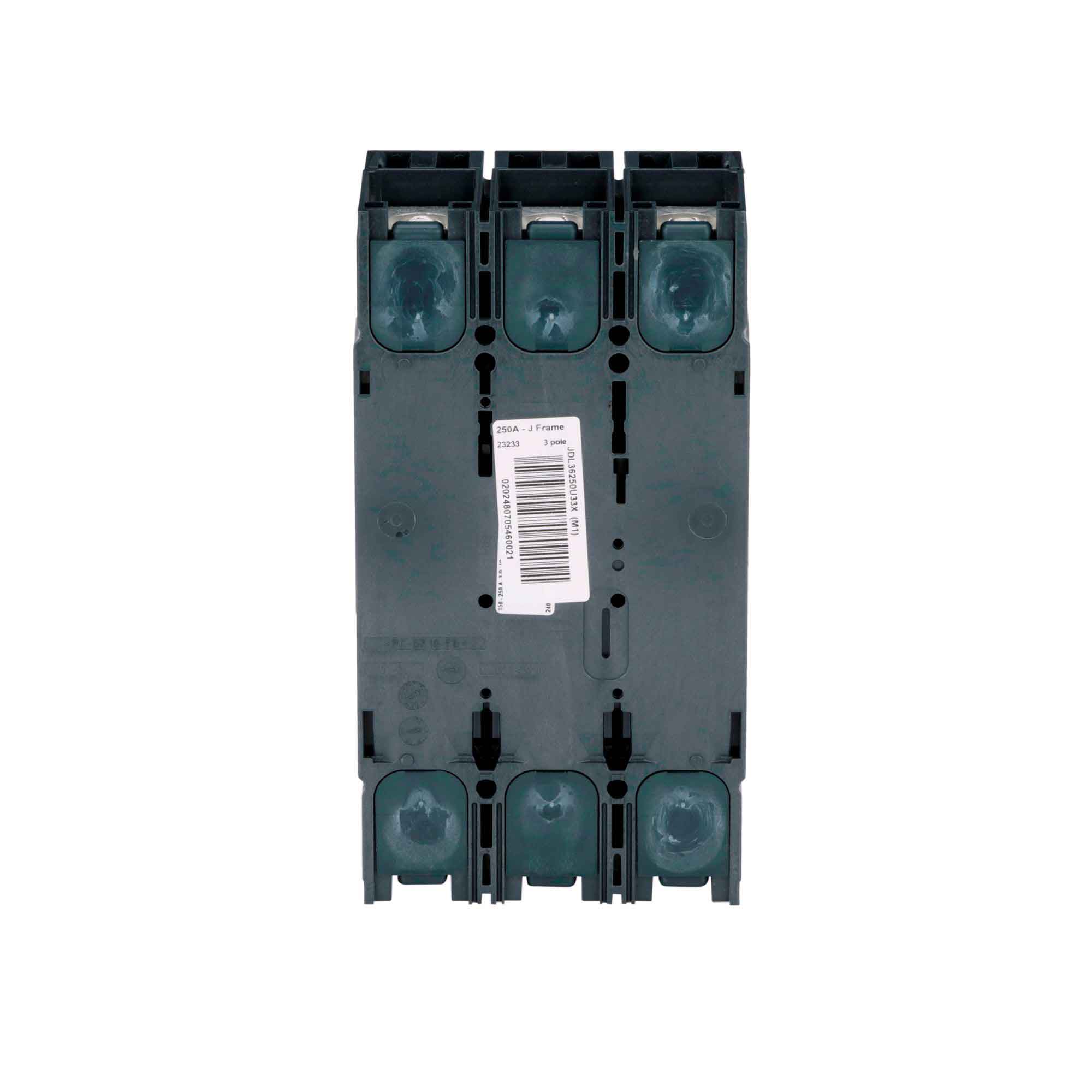

JDL36250U53X - Square D - Molded Case Circuit Breaker

Overview

Product Specifications - JDL36250U53X - Square D Powerpact Circuit Breaker

Part Number:

JDL36250U53X
Manufacturer:

Schneider Electric / Square D
Family:

Powerpact
Pole:

3
Amp

250
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

Feed-Thru
Type:

JDL
Functions:

LSI - Long-Time, Short-Time and Instantaneous
Protection:

Solid State
AIC Ratings:

18kA@480V

Dimensions

Dimensions (HxWxD):

7.52" x 4.09" x 3.29"

Weight:

5.29 lbs

Standards

Additional Details

Protection Type:

Overload protection / Short-circuit protection
Frame Type:

J-Frame
Trip Unit Technology:

Electronic, energy, Micrologic 5.2 E, LSI
Line Rated Current:

250 Amp
Mounting Mode:

Unit Mount Lug

Breaking Capacity Code:

D
Electrical Connection:

Lug line / Lugs load
Continuous Current Rating:

80%
Control Type:

Toggle

Product Description - JDL36250U53X - Square D Powerpact Circuit Breaker

Square D,Schneider Electric, Powerpact, type JDL, 3P, 3PH, 250A, 600V, 18kA@480V, standard interrupting capacity, feed-thru, UL listed, suitable for reverse fed applications, complete with micrologic energy non-interchangeable trip with LSI, LSI - Long-Time, Short-Time and Instantaneous trip functions and line & load side lug terminals, solid state.
