JJA262501 - Square D - Molded Case Circuit Breaker

Overview

Product Specifications - JJA262501 - Square D Powerpact Circuit Breaker

Part Number:

JJA262501
Manufacturer:

Schneider Electric / Square D
Family:

Powerpact
Pole:

2
Amp

250
Volt:

600
Phase:

1

Category:

Molded Case / 2-Pole
Connection:

I-Line Style Plug-In
Type:

JJA
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

65kA@480V

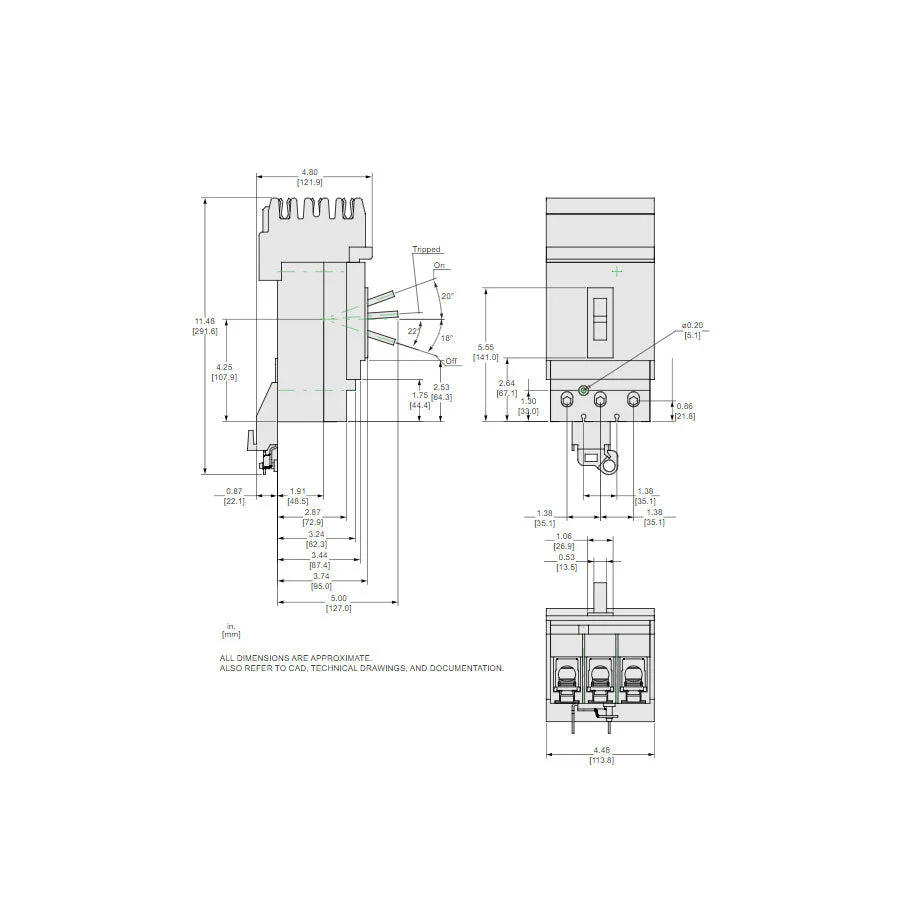

Dimensions

Dimensions (HxWxD):

5.38" x 8.13" x 14.63"
Weight:

5.29 lbs

Standards

Additional Details

Protection Type:

Overload protection / Short-circuit protection
Frame Type:

J-Frame
Trip Unit Technology:

Thermal-magnetic
Line Rated Current:

250 Amp
Mounting Mode:

I-Line bracket

Breaking Capacity Code:

J
Electrical Connection:

I-Line connection line / Lugs load
Magnetic Hold Current:

1250 Amp
Continuous Current Rating:

80%
Control Type:

Toggle
AWG Gauge:

AWG 3/0...350 kcmil aluminium/copper terminals

Product Description - JJA262501 - Square D Powerpact Circuit Breaker

Square D, Powerpact, type JJA, 2P, A & B phase connection, 1PH, 250A, 600V, 65kA@480V, UL listed, current limiting, i-line style plug-in, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, thermal magnetic
