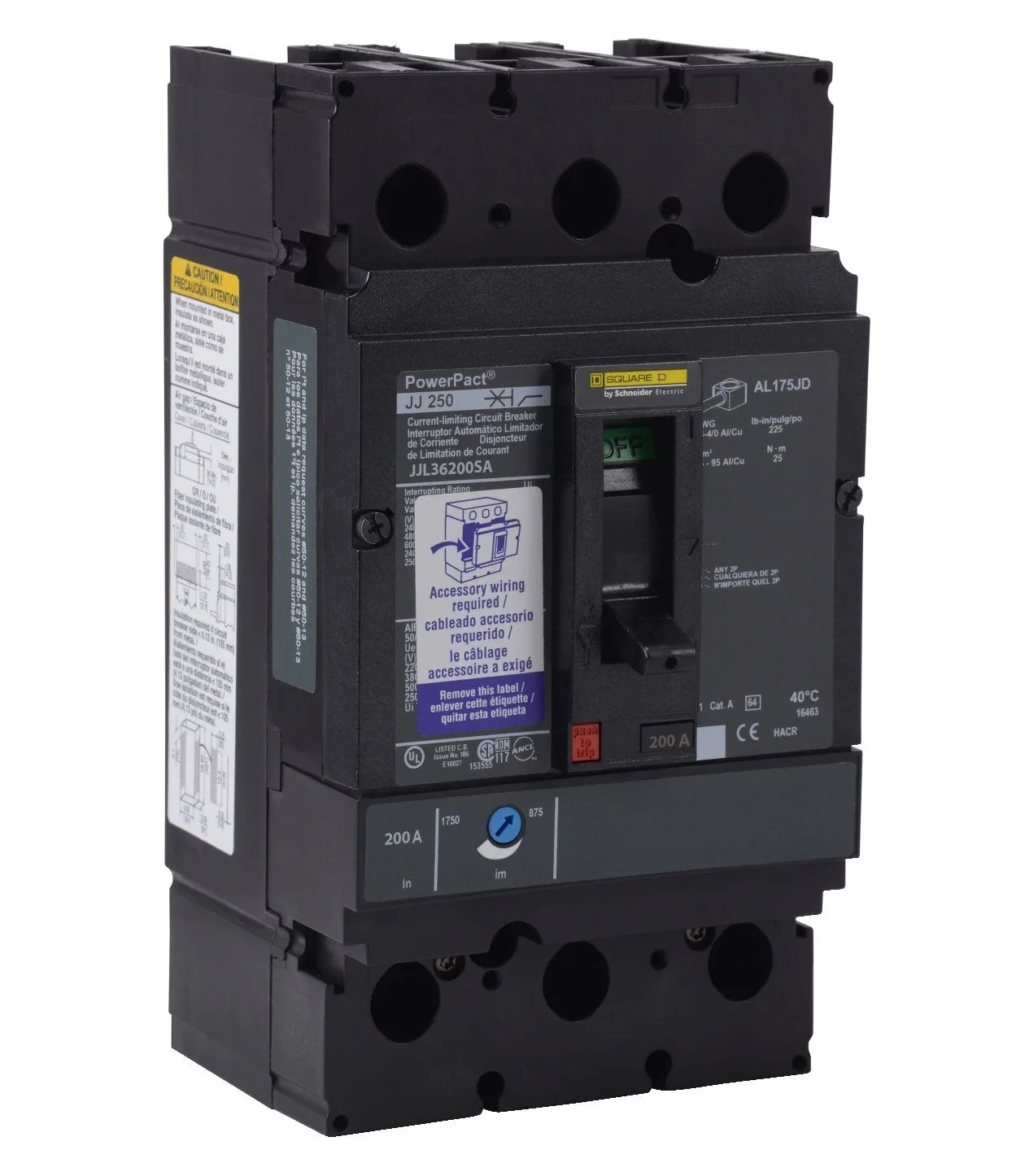

JJL36200SA - Square D - Molded Case Circuit Breaker
Overview
Product Specifications - JJL36200SA - Square D Molded Case Circuit Breakers
-
Part Number:
JJL36200SA -
Manufacturer:
Schneider Electric / Square D -
Family:
Powerpact -
Pole:
3 -
Amp
200 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
JJL -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
65kA@480V
Dimensions
-
Dimensions (HxWxD):
7.52" x 4.09" x 3.39"
-
Weight:
5.29 lbs
Standards
Additional Details
-
Protection Type:
Short-Circuit / Overload -
Trip Unit Technology:
Thermal-magnetic -
Line Rated Current:
200 Amp -
Mounting Mode:
Unit mount lug
-
Breaking Capacity Code
J -
Electrical Connection:
Lugs line / Lugs load -
Magnetic Hold Current:
1000 Amp -
Continuous Current Rating
80% -
Control Type:
Toggle -
AWG Gauge:
AWG 3/0...350 kcmil aluminium/copper terminals
Product Description - JJL36200SA - Square D Molded Case Circuit Breakers
Schneider Electric / Square D, Powerpact, type JJL, 3P, 3PH, 200A, 600V, 25KA@600V, 65kA@480V, 20kA@250V, 100KA@240V, UL listed, current limiting, feed-thru, suitable for reverse fed applications, complete with 110Vac shunt trip, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers
