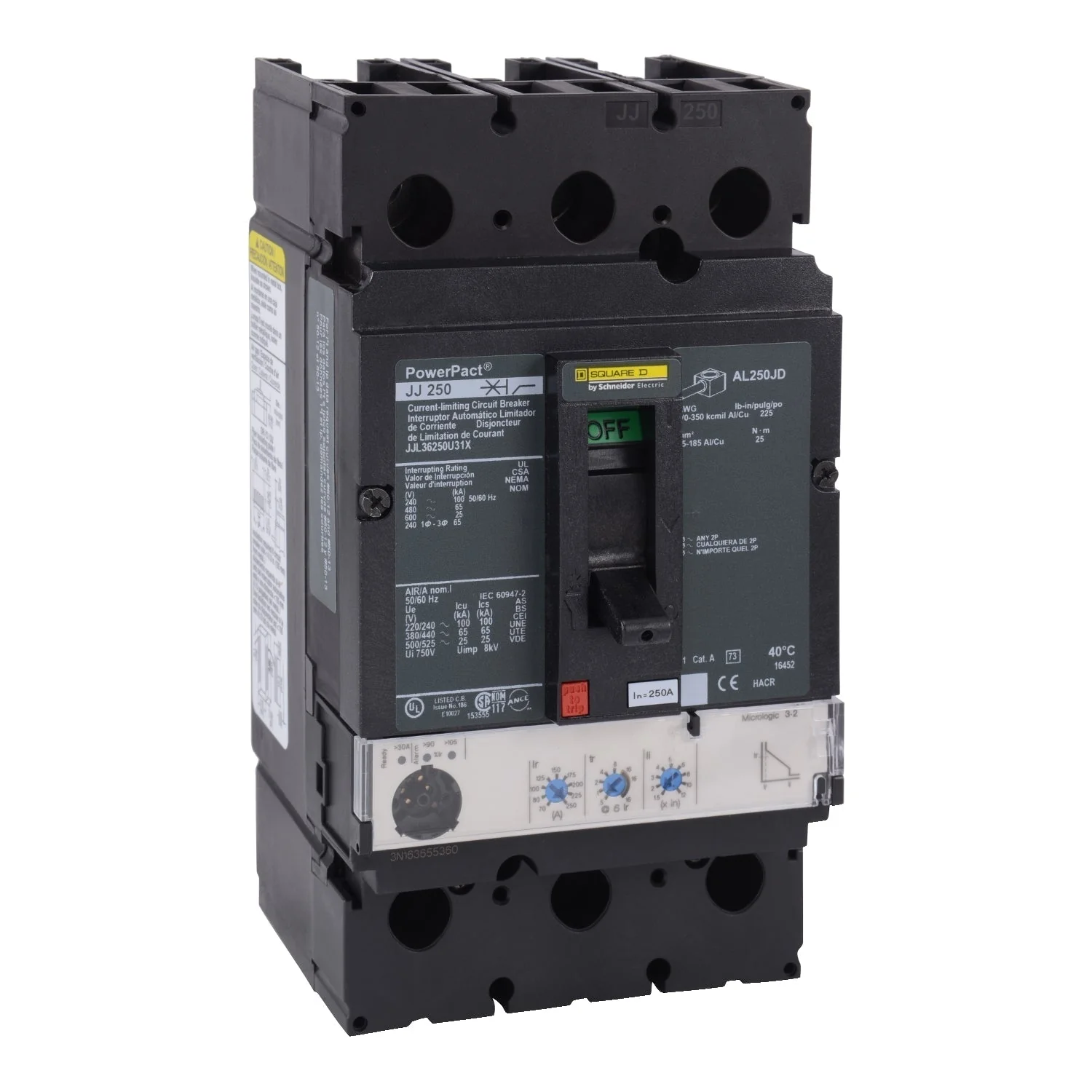

JJL36250U31X - Square D - Molded Case Circuit Breaker

Overview

Product Specifications - JJL36250U31X - Square D Powerpact Circuit Breaker

Part Number:

JJL36250U31X
Manufacturer:

Schneider Electric / Square D
Family:

Powerpact
Pole:

3
Amp

250
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

Feed-Thru
Type:

JJL
Functions:

I - Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

65kA@480V

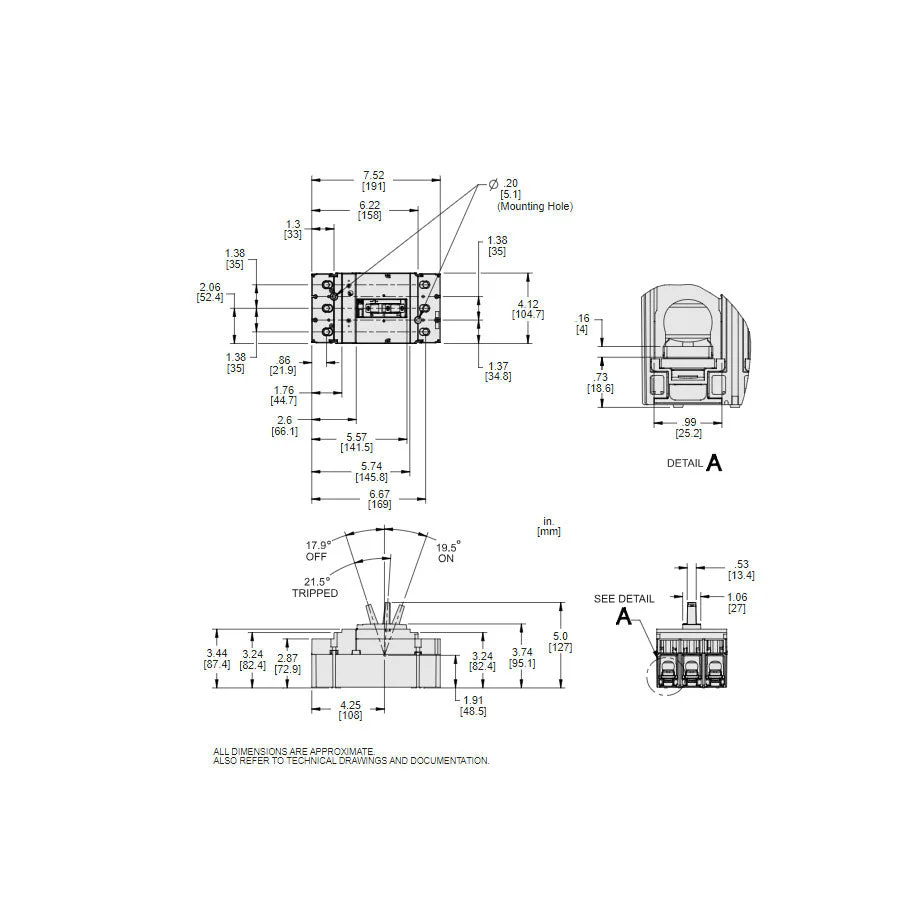

Dimensions

Dimensions (HxWxD):

7.52" x 4.09" x 3.39"
Weight:

5.29 lbs

Standards

Additional Details

Protection Type:

Overload protection / Short-circuit protection
Frame Type:

J-Frame
Trip Unit Technology:

Electronic, standard, MicroLogic 3.2, LI
Line Rated Current:

250 Amp
Mounting Mode:

Unit-Mount Lug

Breaking Capacity Code:

J
Electrical Connection:

Lug line / Lugs load
Continuous Current Rating:

80%
Control Type:

Toggle
AWG Gauge:

AWG 3/0...350 kcmil aluminium/copper terminals

Product Description - JJL36250U31X - Square D Powerpact Circuit Breaker

Schneider Electric,Square D, Powerpact, type JJL, 3P, 3PH, 250A, 600V, 65kA@480V, current limiting, feed-thru, UL listed, suitable for reverse fed applications, can be used for 2P applications, complete with micrologic standard non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, solid state.

Documentation

Catalogue

Technical Specifications
