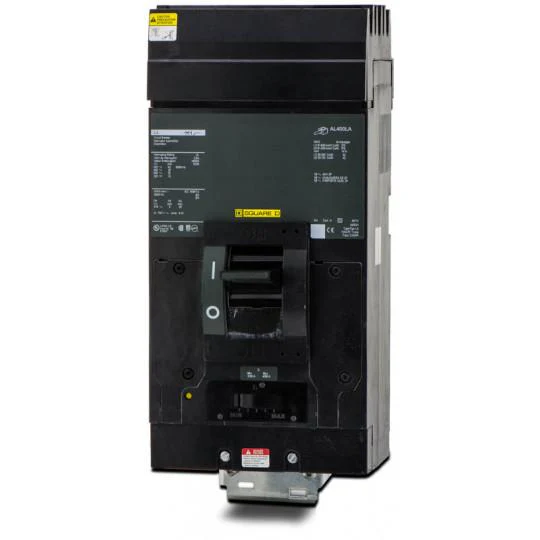

LA36125 - Square D - Molded Case Circuit Breaker

Overview

Product Specifications - LA36125 - Square D Powerpact Circuit Breaker

Part Number:

LA36125
Manufacturer:

Schneider Electric / Square D
Family:

I-Line
Pole:

3
Amp

125
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

I-Line Style Plug-In
Type:

LA
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

30kA@480V

Dimensions

Dimensions (HxWxD):

11" x 6" x 5.84"

Standards

Additional Details

Frame Type:

J-Frame
Trip Unit Technology:

Thermal-magnetic
Line Rated Current:

125 Amp
Mounting Mode:

I-Line

Breaking Capacity Code:

A
Electrical Connection:

I-Line connection line / Lugs load
Magnetic Hold Current:

625 Amp

Product Description - LA36125 - Square D Powerpact Circuit Breaker

Square D, I-Line, type LA, 3P, ABC phase circuit configuration, 3PH, 125A, 600V, 30kA@480V, standard interrupting capacity, i-line style plug-in, complete with LI - Long-Time and Instantaneous trip functions, thermal magnetic molded case circuit breakers.

Documentation

Catalogue

Technical Specifications

Select Condition

From $418.50

Original: $1,394.99

-70%

LA36125 - Square D - Molded Case Circuit Breaker—

$1,394.99

$418.50
