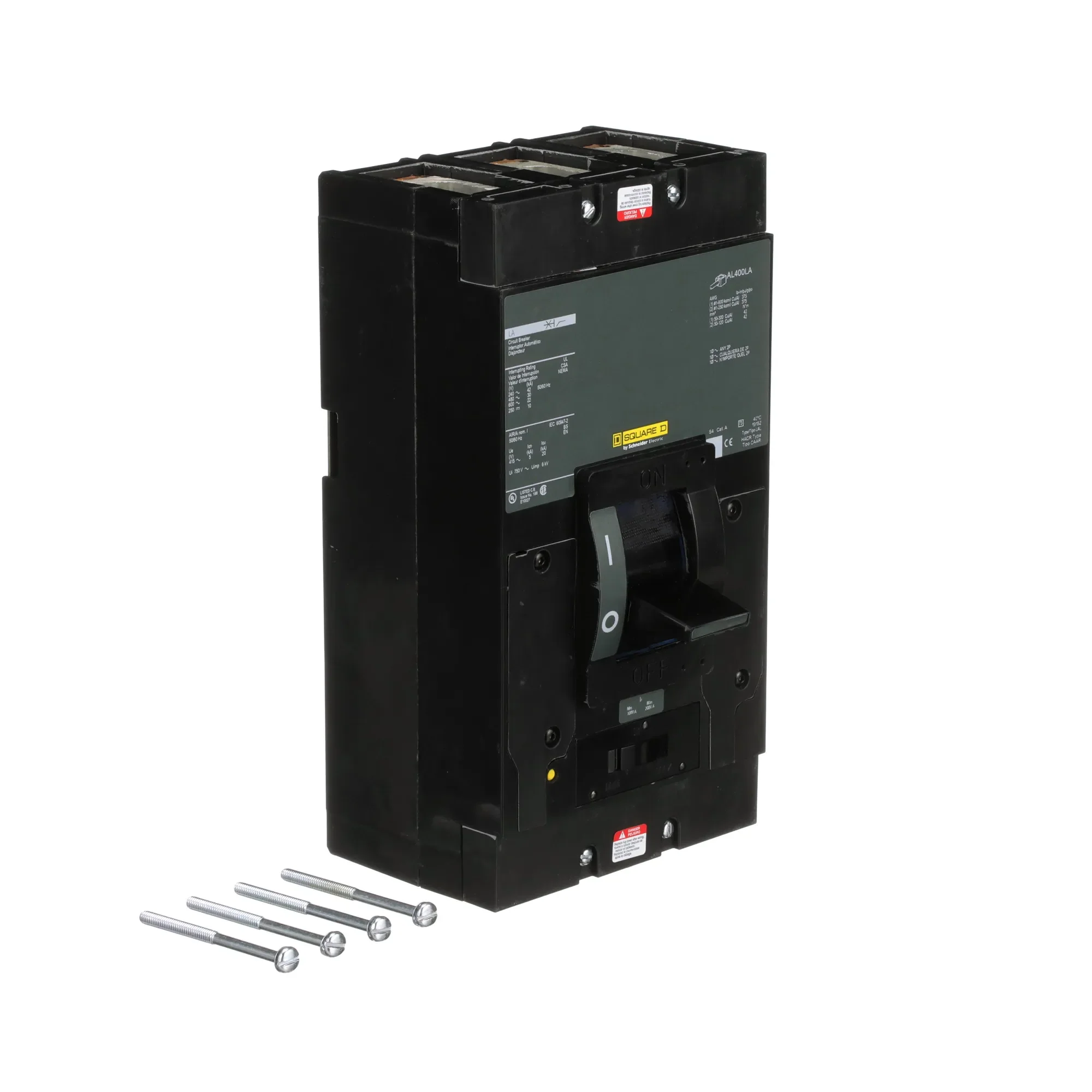

LAL36150 - Square D - Molded Case Circuit Breaker

Overview

Product Specifications - LAL36150 - Square D Powerpact Circuit Breaker

Part Number:

LAL36150
Manufacturer:

Schneider Electric / Square D
Family:

LAL Series
Pole:

3
Amp

150
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

Feed-Thru
Type:

LAL
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

30kA@480V

Dimensions

Dimensions (HxWxD):

11" x 6" x 5.84"

Standards

Additional Details

Frame Type:

J-Frame
Trip Unit Technology:

Thermal-magnetic
Line Rated Current:

150 Amp
Mounting Mode:

Unit Mount

Electrical Connection:

Lugs line / Lugs load
Magnetic Hold Current:

750 Amp

Product Description - LAL36150 - Square D Powerpact Circuit Breaker

Square D, LAL Series, type LAL, 3P, 3PH, 150A, 600V, 30kA@480V, standard interrupting capacity, feed-thru, complete with LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic molded case circuit breakers.

Documentation

Catalogue

Technical Specifications

Installation Instructions

Select Condition

From $389.70

Original: $1,298.99

-70%

LAL36150 - Square D - Molded Case Circuit Breaker—

$1,298.99

$389.70
