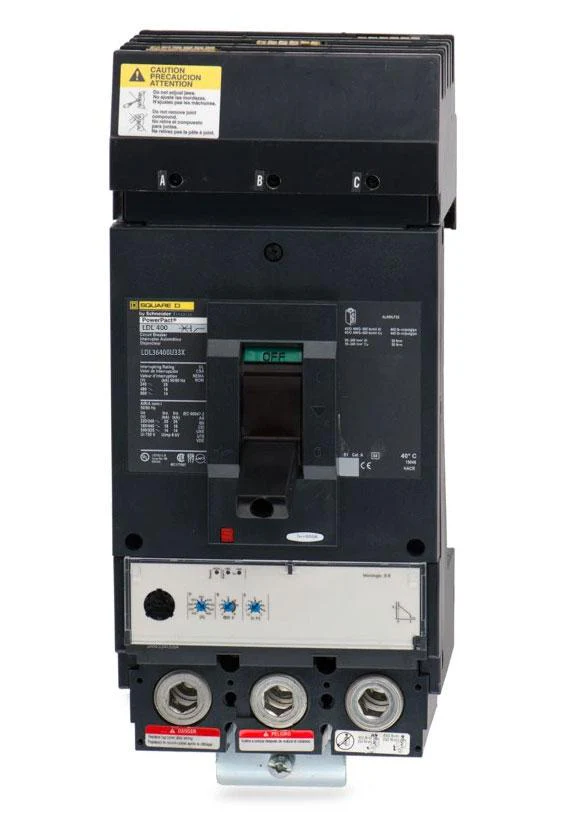

LDL36400U33X - Square D - Molded Case Circuit Breaker

Overview

Product Specifications - LDL36400U33X - Square D Molded Case Circuit Breakers

Part Number:

LDL36400U33X
Manufacturer:
Schneider Electric / Square D
Family:

Powerpact
Pole:

3
Amp

400
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

Feed-Thru
Type:

LDL
Functions:

LSI - Long-Time, Short-Time and Instantaneous
Protection:

Solid State
AIC Ratings:

18kA@480V

Dimensions

Dimensions (HxWxD):

13.39" x 5.51" x 4.33"

Weight:

13.67 lbs

Standards

Additional Details

Trip Unit Technology:

Electronic, standard, MicroLogic 3.3 S, LSI
Line Rated Current:

400 Amp
Mounting Mode:

Unit mount lug

Breaking Capacity Code

D
Electrical Connection:

Lugs line / Lugs load
Continuous Current Rating

80%
Control Type:

Toggle
AWG Gauge:

2 x AWG 2/0...500 kcmil aluminium/copper

Product Description - LDL36400U33X - Square D Molded Case Circuit Breakers

Schneider Electric / Square D, Powerpact, type LDL, 3P, 3PH, 400A, 600V, 14kA@600V, 18kA@480V, 25kA@240V, UL listed, standard interrupting capacity, feed-thru, can used for 2P applications, complete with non-interchangeable micrologic standard 3.3S trip, LSI - Long-Time, Short-Time and Instantaneous trip functions and line & load side lug terminals, solid state electronic, molded case circuit breakers

Documentation

Catalogue

Installation Instructions

Data Sheet

Select Condition

From $519.60

Original: $1,731.99

-70%

LDL36400U33X - Square D - Molded Case Circuit Breaker—

$1,731.99

$519.60
