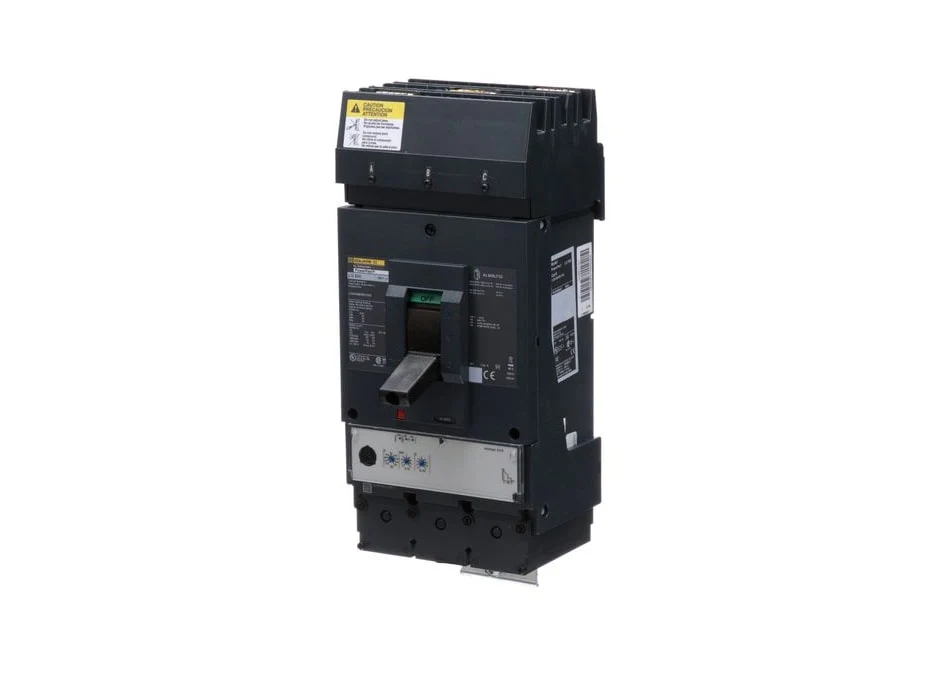

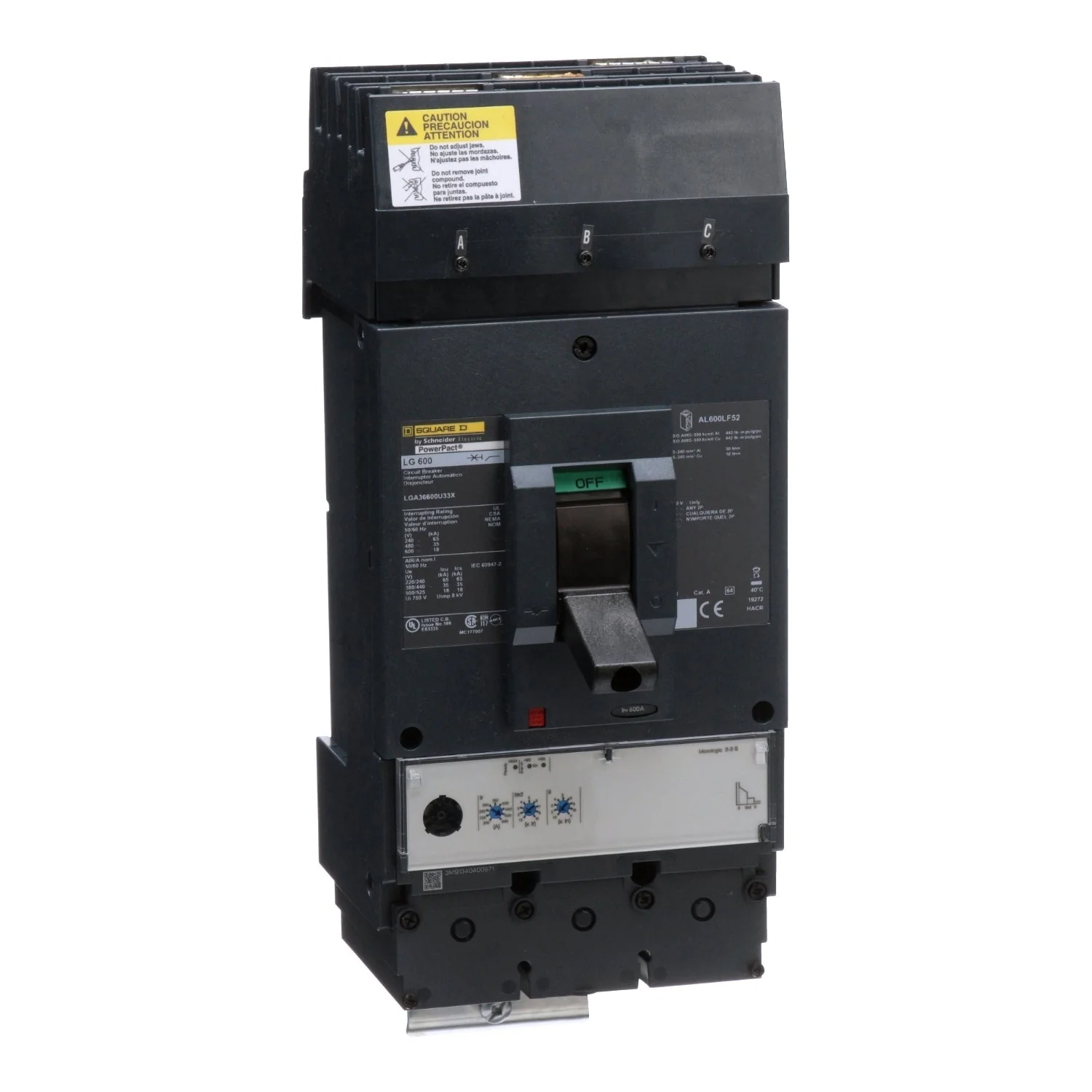

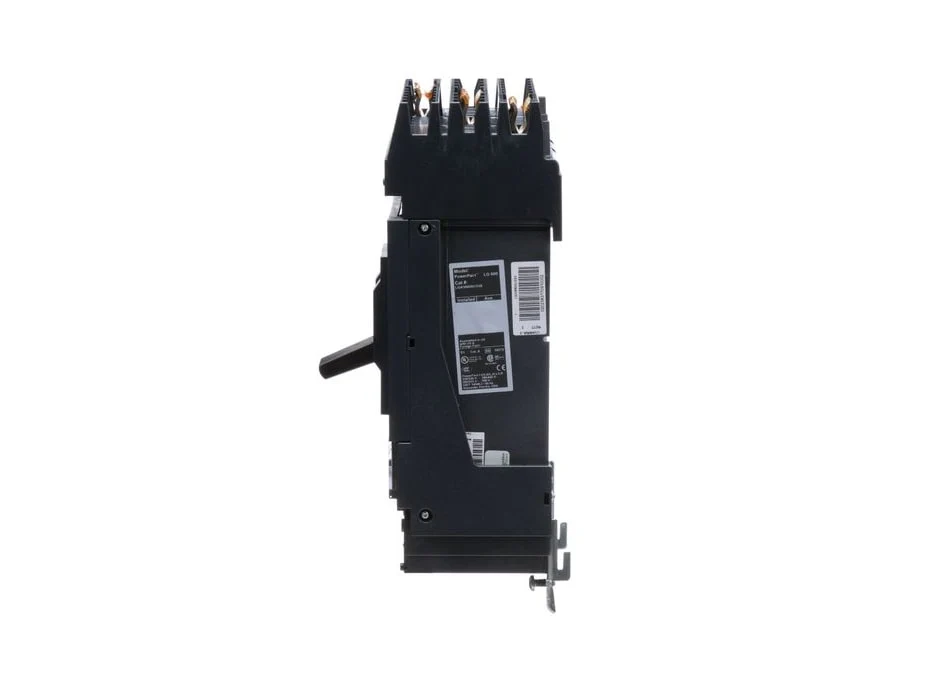

LGA36400U53X - Square D - Molded Case Circuit Breaker
Overview
Product Specifications - LGA36400U53X - Square D Powerpact Circuit Breaker
-
Part Number:
LGA36400U53X -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
400 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
LGA -
Functions:
Electronic, energy, MicroLogic 5.3 E, LSI -
Protection:
Solid State -
Frame Type:
L Frame -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
13.39" x 5.51" x 4.33"
Standards
Additional Details
-
Trip Unit Technology:
Electronic, standard, MicroLogic 3.3, LI -
Line Rated Current:
400 Amp -
Mounting Mode:
I-Line bracket
-
Breaking Capacity Code
G -
Electrical Connection:
I-Line connection line / Lugs load -
Continuous Current Rating
80% -
Control Type:
Toggle -
AWG Gauge:
2 x AWG 2/0...500 kcmil aluminium/copper
Product Description - LGA36400U53X - Square D Powerpact Circuit Breaker
Square Schneider Electric, PowerPact, type LGA, 3P, 3PH, 400A, 600V, 35kA@480V, UL listed, standard interrupting capacity, i-line style plug-in, can used for 2P applications, complete with non-interchangeable MicroLogic 5.3 E, LSI, solid state electronic.
Documentation
Select Condition
From $2,557.99
LGA36400U53X - Square D - Molded Case Circuit Breaker—
$2,557.99
