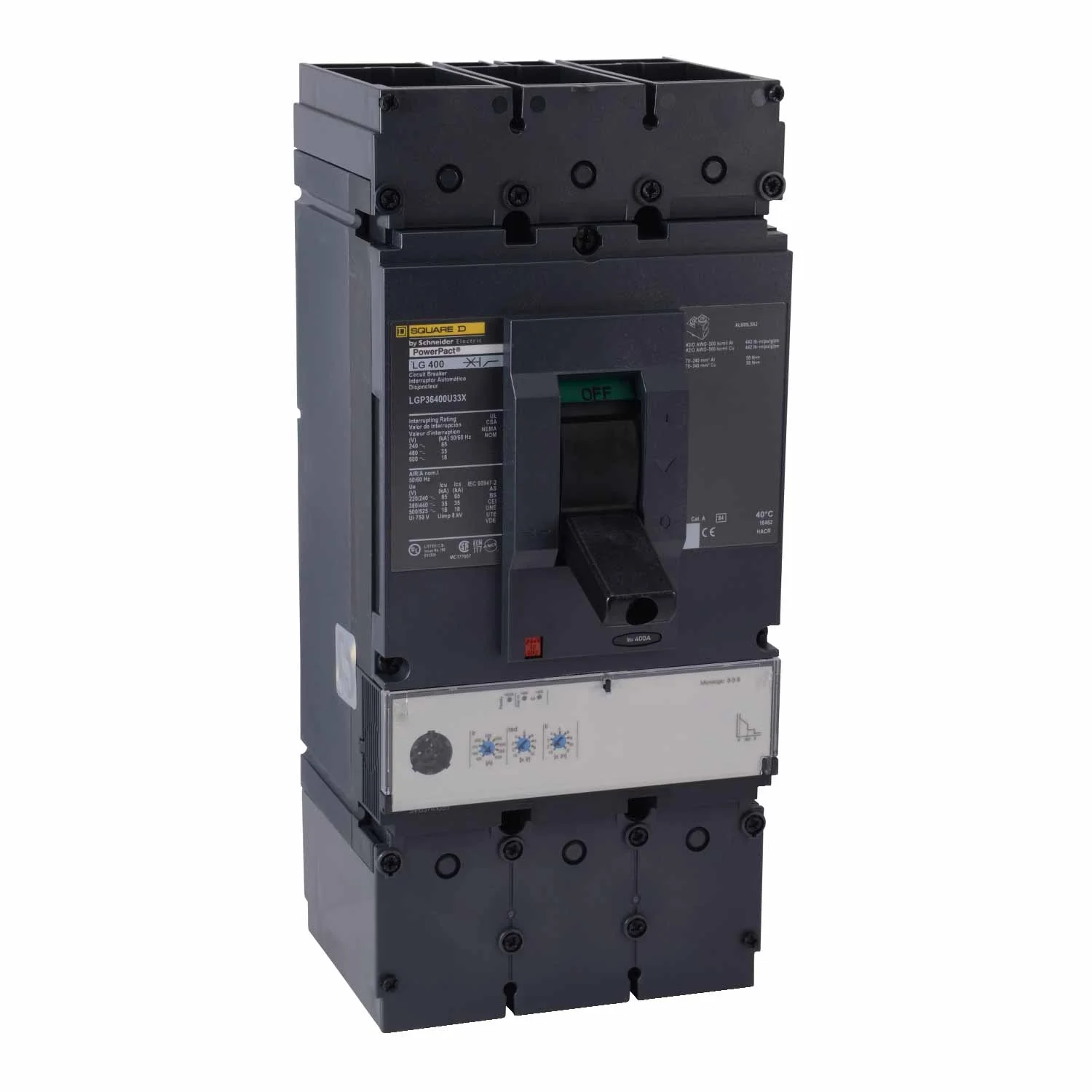

LGP36400CU33X - Square D - Molded Case Circuit Breaker
Overview
Product Specifications - LGP36400CU33X - Square D Molded Case Circuit Breaker
-
Part Number:
LGP36400CU33X -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp:
400 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Bolt-On -
Type:
L Frame -
Functions:
LSI - Long-Time, Short-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
13.39 x 5.51 x 4.33 -
Weight:
13.67 lbs
Standards
Product Description - LGP36400CU33X - Square D Molded Case Circuit Breaker
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 400A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3S trip unit and an LSI function. This unit has terminal nuts on the line side and lugs on the load side. This circuit breaker has a continuous current rating of 100%. This circuit breaker has a continuous current rating of 100%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
