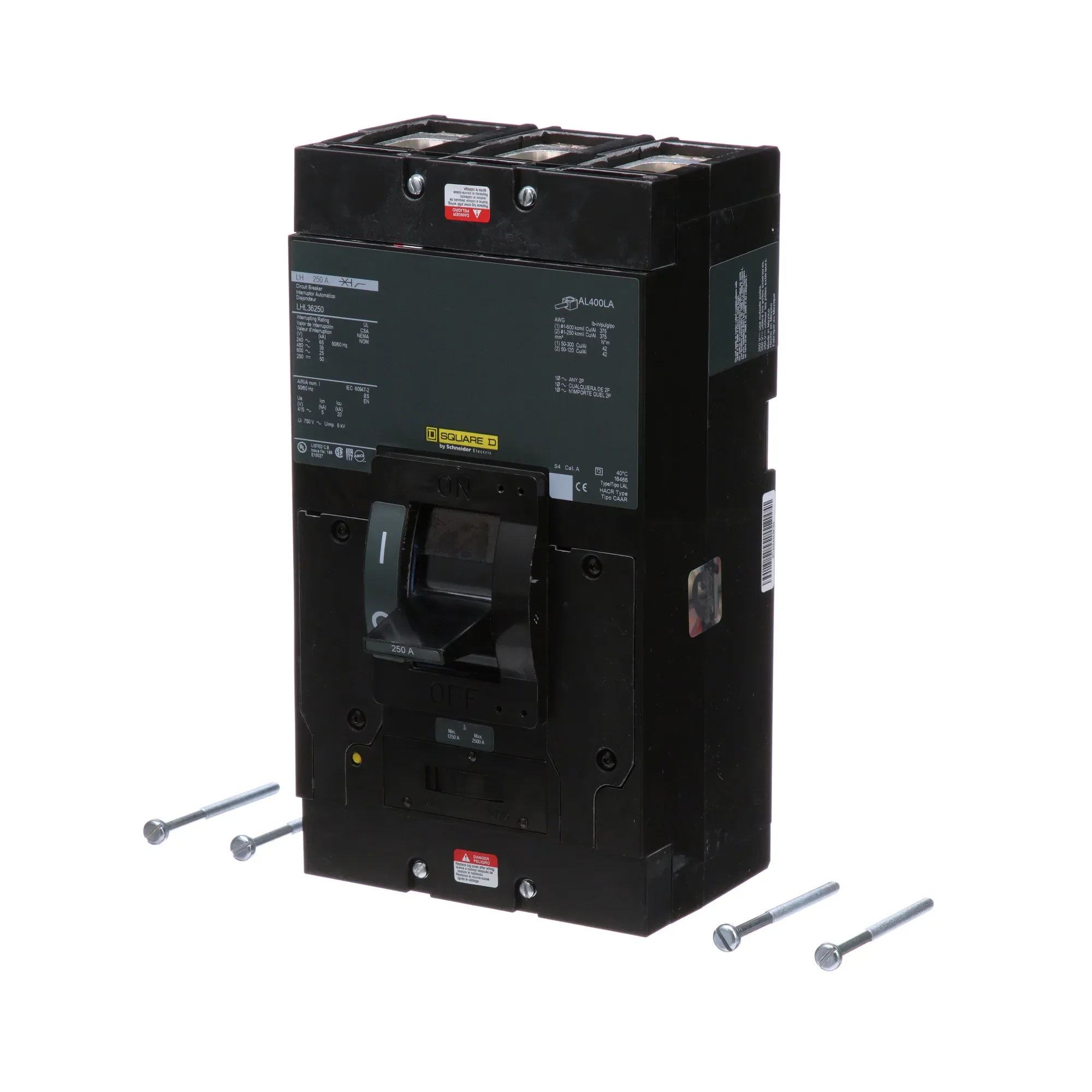

LHL36250 - Square D - Molded Case Circuit Breaker

Overview

Product Specifications - LHL36250 - Square D Powerpact Circuit Breaker

Part Number:

LHL36250
Manufacturer:

Schneider Electric / Square D
Family:

LHL Series
Pole:

3
Amp

250
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

Feed-Thru
Type:

LHL
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
Frame Type:

L Frame
AIC Ratings:

35kA@480V

Dimensions

Dimensions (HxWxD):

11.0" x 6.0" x 5.84"

Standards

Additional Details

Trip Unit Technology:

Thermal-magnetic
Line Rated Current:

250 Amp
Mounting Mode:

Unit Mount

Breaking Capacity Code:

H
Magnetic Hold Current:

1000 A
Electrical Connection:

Lugs line / Lugs load

Product Description - LHL36250 - Square D Powerpact Circuit Breaker

Square D, LHL Series, type LHL, 3P, 3PH, 250A, 600V, 35kA@480V, high interrupting capacity, feed-thru, complete with LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic molded case circuit breakers.

Documentation

Catalogue

Technical Specifications

Installation Instructions

Select Condition

From $409.20

Original: $1,363.99

-70%

LHL36250 - Square D - Molded Case Circuit Breaker—

$1,363.99

$409.20
