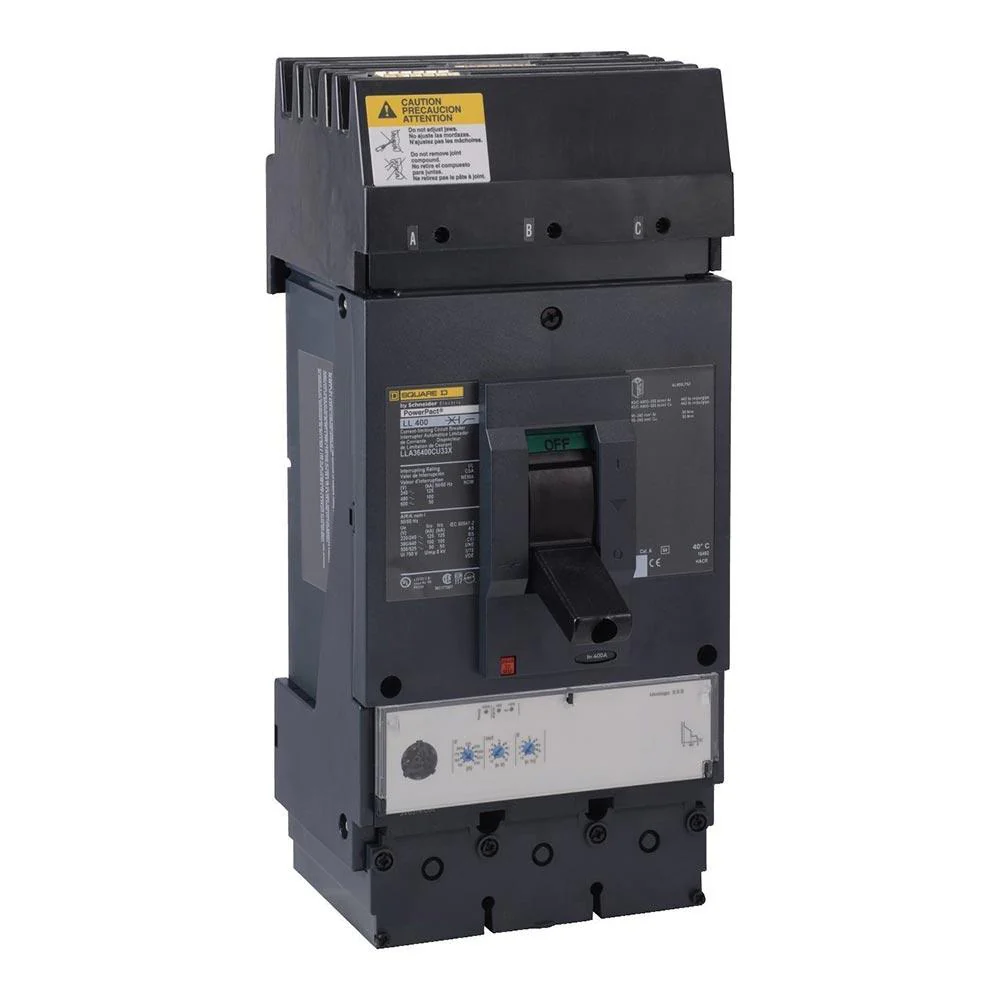

LLA36600U33X - Square D - Molded Case Circuit Breaker

Overview

Product Specifications - LLA36600U33X - Square D Powerpact Circuit Breaker

Part Number:

LLA36600U33X
Manufacturer:

Schneider Electric / Square D
Family:

Powerpact
Pole:

3
Amp

600
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

I-Line Style Plug-In
Type:

LLA
Functions:

LSI - Long-Time, Short-Time and Instantaneous
Protection:

Solid State
AIC Ratings:

100kA@480V

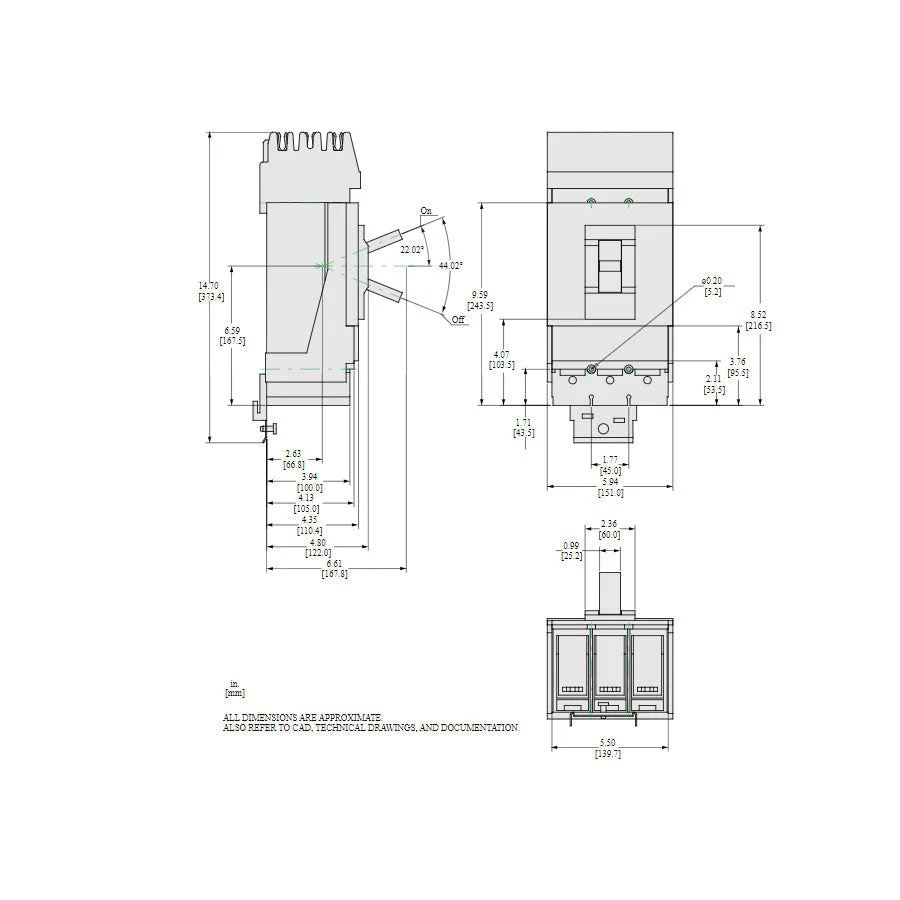

Dimensions

Dimensions (HxWxD):

14.7" x 5.94" x 6.61"
Weight:

13.67 lbs

Standards

Additional Details

Frame Type:

L-Frame
Trip Unit Technology:

Electronic, standard, Micrologic 3.3 S, LSI
Line Rated Current:

600 Amp
Mounting Mode:

I-Line bracket

Breaking Capacity Code:

L
Electrical Connection:

I-Line connection line / Lugs load
Continuous Current Rating:

80%
Control Type:

Toggle
AWG Gauge:

AWG 3/0...500 kcmil aluminium/copper

Product Description - LLA36600U33X - Square D Powerpact Circuit Breaker

Schneider Electric / Square D, Powerpact, type LLA, 3P, 3PH, 600A, 600V, 100kA@480V, UL listed, current limiting, i-line style plug-in, can used for 2P applications, complete with non-interchangeable micrologic standard 3.3S trip unit with LSI - Long-Time, Short-Time and Instantaneous trip functions, solid state electronic, molded case circuit breakers.

Documentation

Catalogue

Data Sheet

Select Condition

From $1,177.80

Original: $3,925.99

-70%

LLA36600U33X - Square D - Molded Case Circuit Breaker—

$3,925.99

$1,177.80
