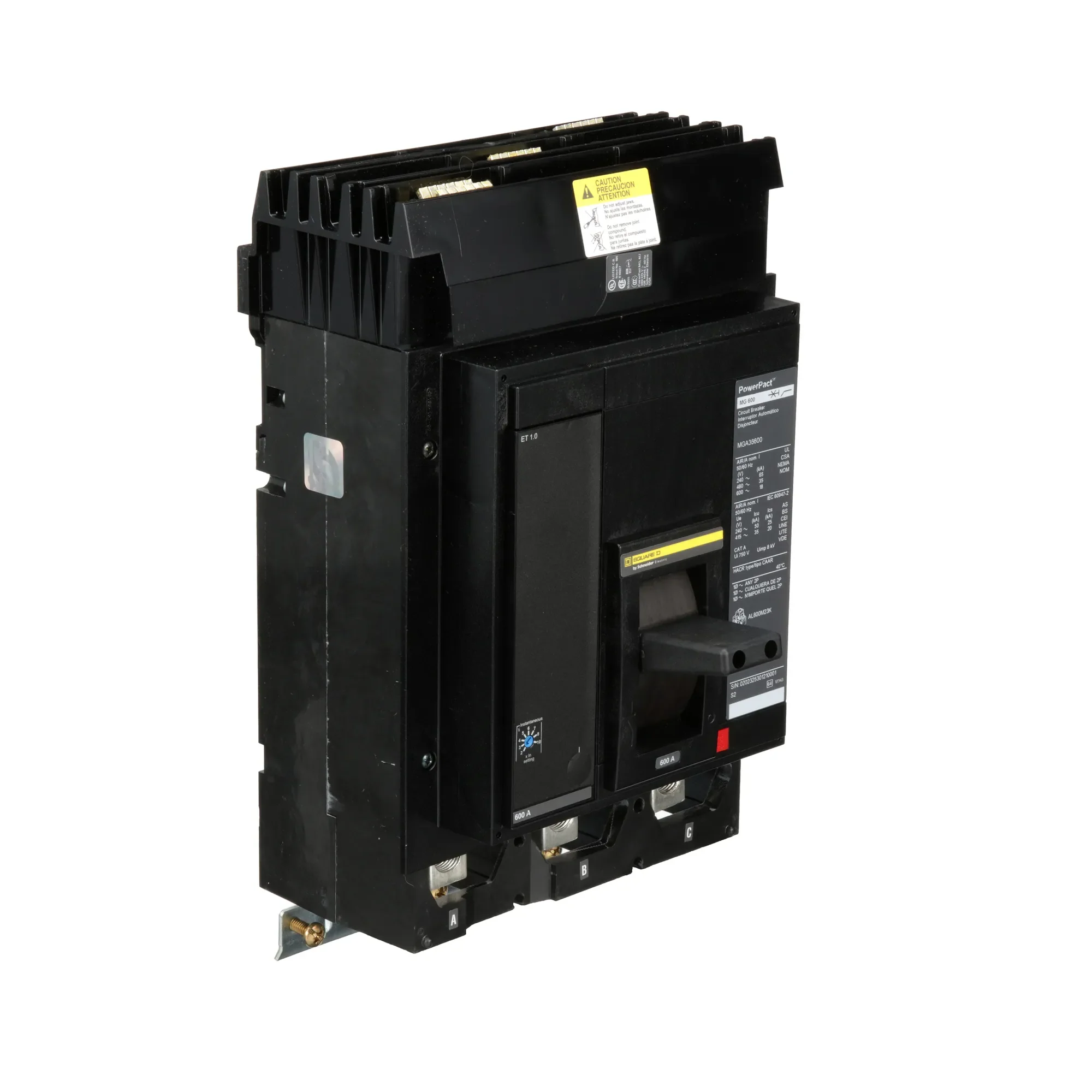

MGA36600 - Square D - Molded Case Circuit Breaker

Overview

Product Specifications - MGA36600 - Square D Powerpact Circuit Breaker

Part Number:

MGA36600
Manufacturer:

Schneider Electric / Square D
Family:

Powerpact
Pole:

3
Amp

600
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

I-Line Style Plug-In
Type:

MGA
Functions:

LI - Long-Time and Instantaneous
Protection:

Solid State
AIC Ratings:

35kA@480V

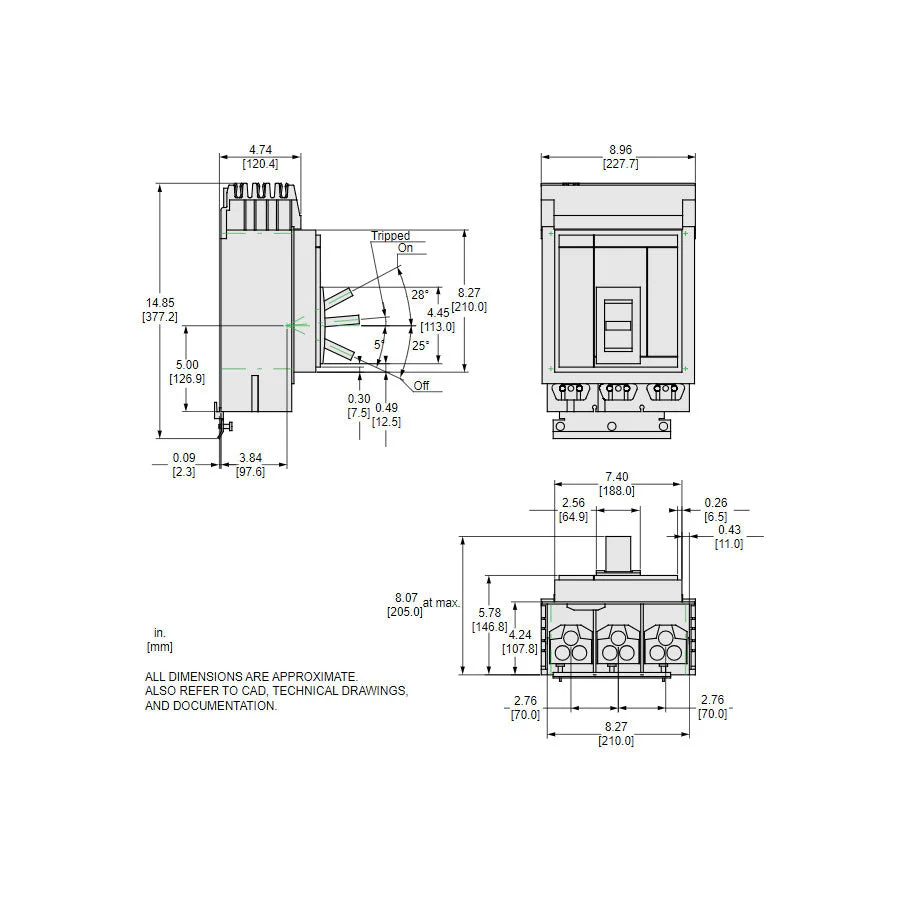

Dimensions

Dimensions (HxWxD):

12.86" x 0.32" x 8.27"
Weight:

29 lbs

Standards

Additional Details

Frame Type:

M-Frame
Trip Unit Technology:

Electronic, basic, ET 1.0,
Line Rated Current:

600 Amp
Mounting Mode:

I-Line bracket

Breaking Capacity Code:

G
Electrical Connection:

I-Line connection line / Lugs load
Continuous Current Rating:

80%
Control Type:

Toggle
AWG Gauge:

3 x AWG 3/0...3 x 500 kcmil aluminium/copper

Product Description - MGA36600 - Square D Powerpact Circuit Breaker

Schneider Electric / Square D, Powerpact, type MGA, 3P, ABC phase connection, 3PH, 600A, 600V, 35kA@480V, UL listed, high interrupting capacity, i-line style plug-in, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, solid state, molded case circuit breakers.

Documentation

Catalogue

Data Sheet

Select Condition

From $1,062.00

Original: $3,539.99

-70%

MGA36600 - Square D - Molded Case Circuit Breaker—

$3,539.99

$1,062.00
