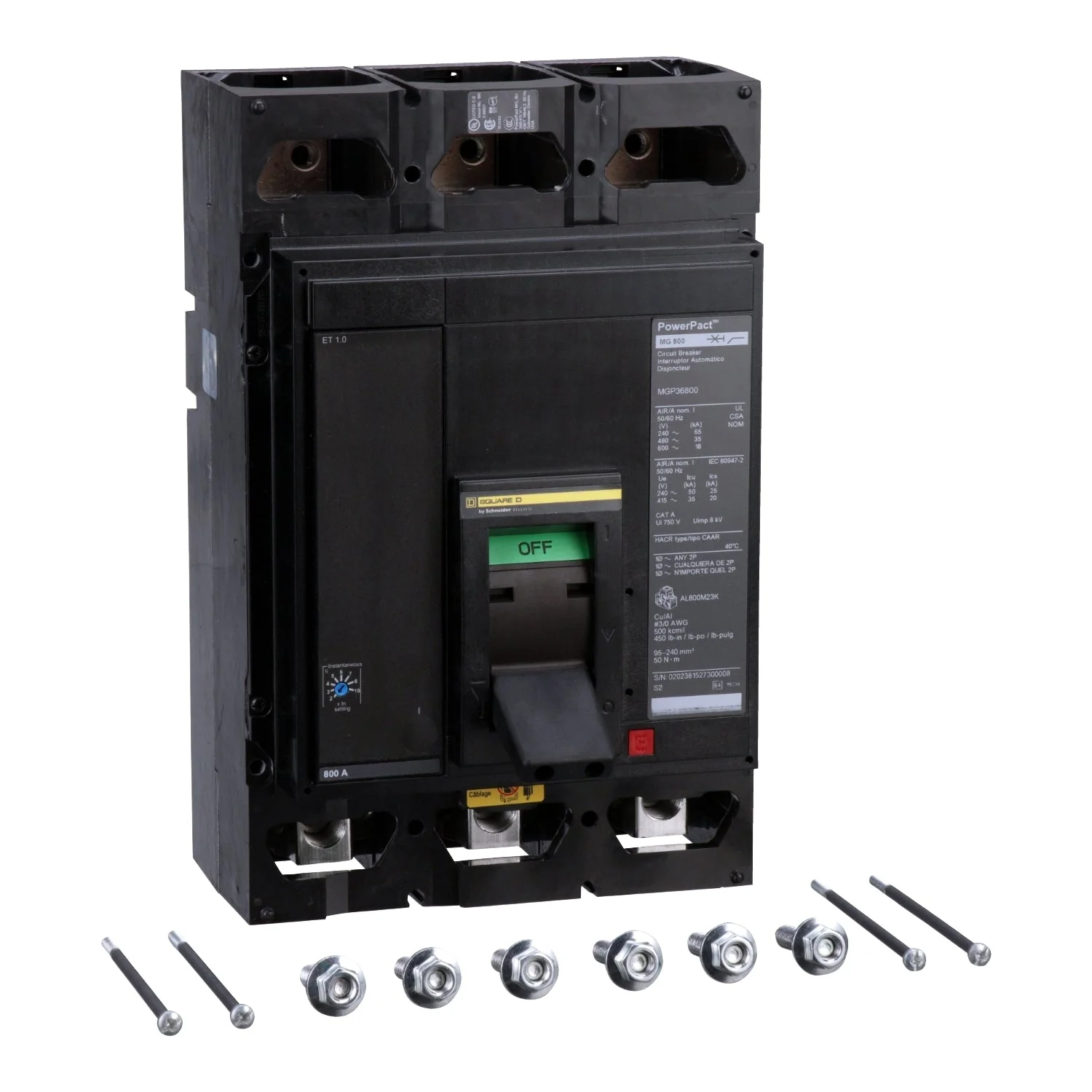

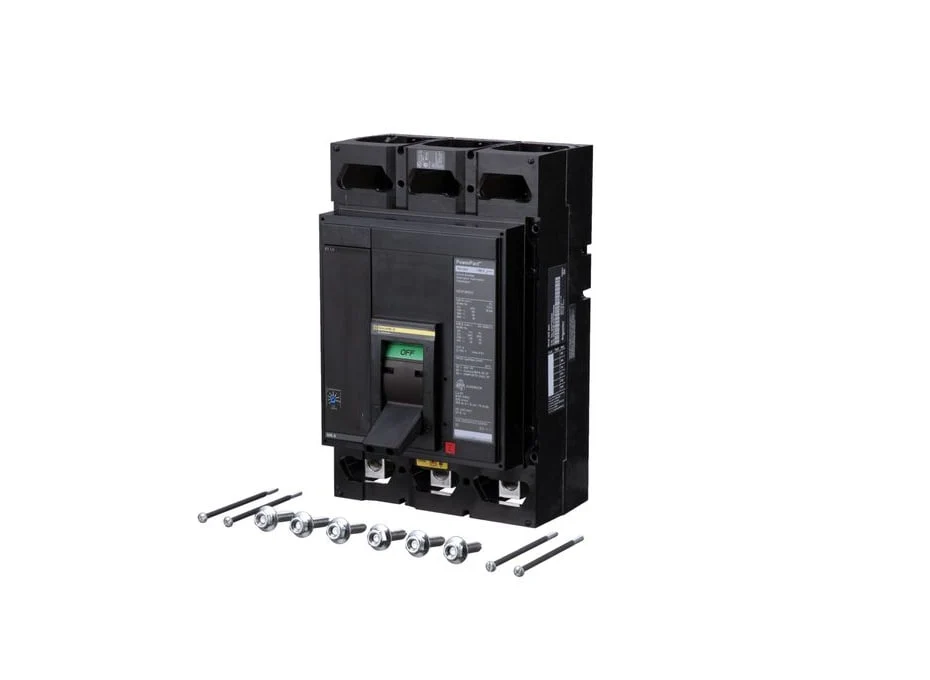

MGP36800 - Square D - Molded Case Circuit Breaker

Overview

Product Specifications - MGP36800 - Square D Powerpact Circuit Breaker

Part Number:

MGP36800
Manufacturer:

Schneider Electric / Square D
Family:

Powerpact
Pole:

3
Amp

800
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

Bolt On
Type:

MGP
Functions:

LI - Long-Time and Instantaneous
Protection:

Solid State
AIC Ratings:

35kA@480V

Dimensions

Dimensions (HxWxD):

12.86" x 8.27" x 8.05"
Weight:

29 lbs

Standards

Additional Details

Frame Type:

M-Frame
Trip Unit Technology:

Electronic, basic, ET 1.0,
Line Rated Current:

800 Amp
Mounting Mode:

Unit Mount Lug

Breaking Capacity Code:

G
Electrical Connection:

Lugs line / Lugs load
Continuous Current Rating:

80%
Control Type:

Operating Handle
AWG Gauge:

3 x AWG 3/0...3 x 500 kcmil aluminium/copper

Product Description - MGP36800 - Square D Powerpact Circuit Breaker

Schneider Electric,Square D, Powerpact, type MGP, 3P, 3PH, 800A, 600V, 35kA@480V, UL listed, high interrupting capacity, bolt-on, load side lugs, solid state electronic.
