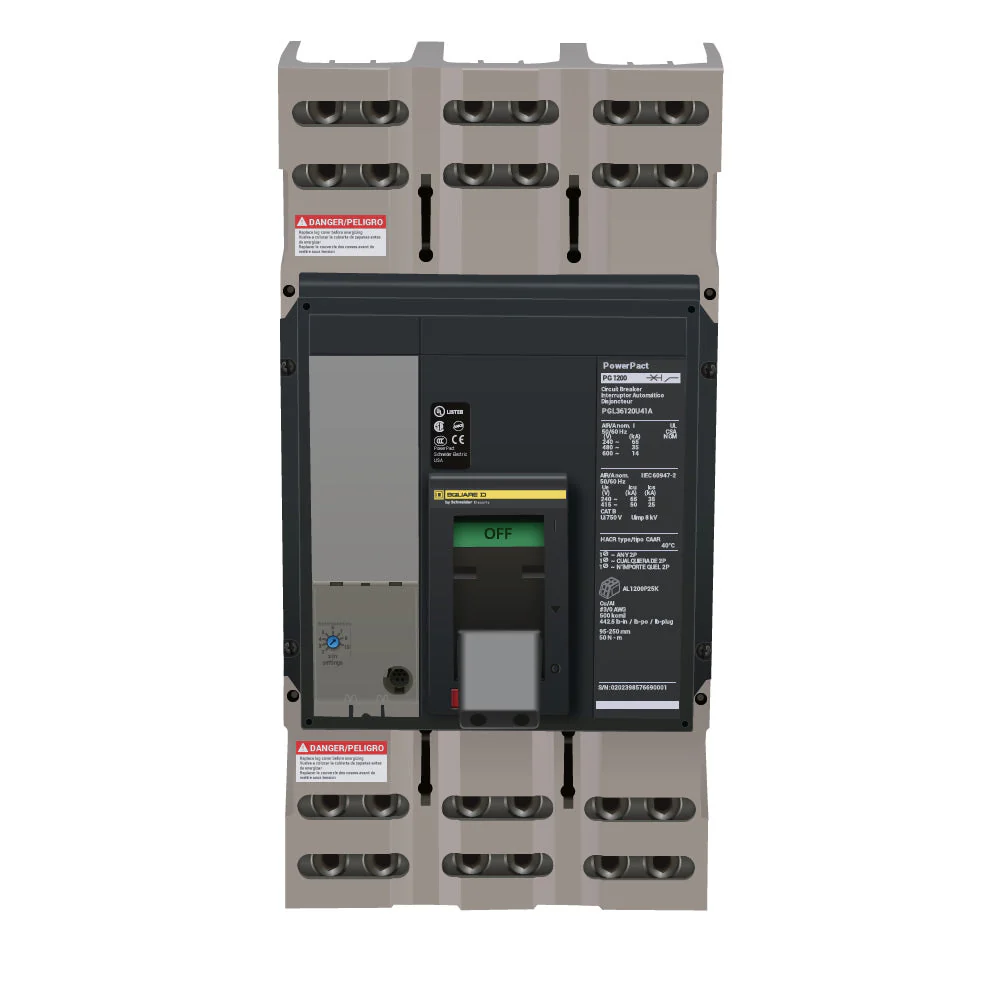

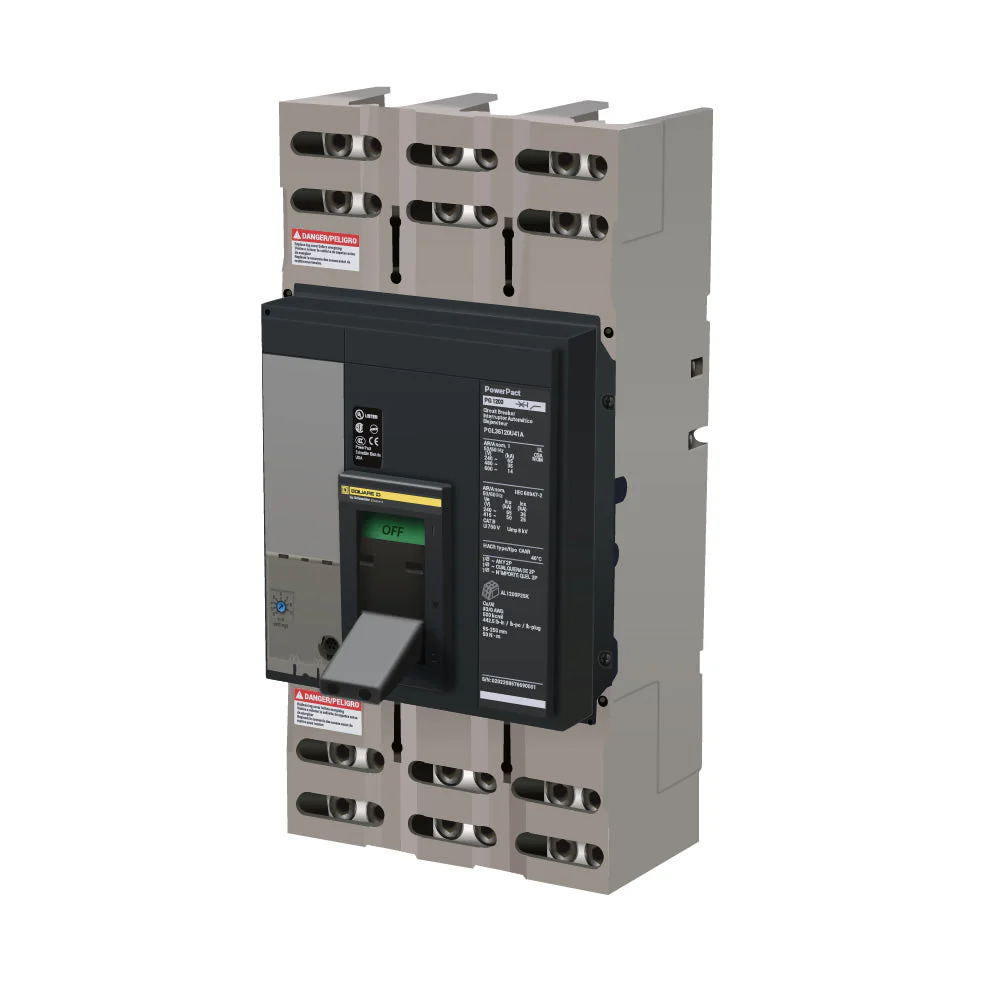

PGL36120U41A - Square D - Molded Case Circuit Breaker

Overview

Product Specifications - PGL36120U41A - Square D Molded Case Circuit Breakers

Part Number:

PGL36120U41A
Manufacturer:
Schneider Electric / Square D
Family:

Powerpact
Pole:

3
Amp

1200
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

Feed-Thru
Type:

PGL
Functions:

LI - Long-Time and Instantaneous
Protection:

Solid State
AIC Ratings:

35kA@480V

Dimensions

Dimensions (HxWxD):

16.16" x 8.27" x 8.05"

Weight:

32 lbs

Standards

Additional Details

Trip Unit Technology:

Electronic, ammeter, MicroLogic 3.0 A, LI
Line Rated Current:

1200 Amp
Breaking Capacity Code

G

Electrical Connection:

Lugs load / Lugs line
Continuous Current Rating

80%
Control Type:

Toggle
AWG Gauge:

4 x AWG 3/0...500 kcmil aluminium/copper

Product Description - PGL36120U41A - Square D Molded Case Circuit Breakers

Schneider Electric / Square D, Powerpact, type PGL, 3P, 3PH, 1200A, 600V, 35kA@480V, UL listed, standard interrupting capacity, feed-thru, complete with micrologic interchangeable ammeter 3.0A trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, solid state electronic, molded case circuit breakers

Documentation

Catalogue

Technical Specifications

Select Condition

From $4,999.99

PGL36120U41A - Square D - Molded Case Circuit Breaker—

$4,999.99

Select Condition

From $4,999.99

PGL36120U41A - Square D - Molded Case Circuit Breaker—

$4,999.99
