QDL22225 - Square D - Molded Case Circuit Breaker
Overview
Product Specifications - QDL22225 - Square D Powerpact Circuit Breaker
-
Part Number:
QDL22225 -
Manufacturer:
-
Family:
Powerpact -
Pole:
2 -
Amp
225 -
Volt:
240 -
Phase:
1
-
Category:
-
Connection:
Feed-Thru -
Type:
QDL -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Thermal Magnetic -
AIC Ratings:
25kA@240V
Dimensions
-
Dimensions (HxWxD):
6.47" x 3" x 3.93"
-
Weight:
4.9 lbs
Standards
Additional Details
-
Frame Type:
Q-Frame -
Trip Unit Technology:
Thermal-magnetic -
Line Rated Current:
225 Amp -
Mounting Mode:
Unit mount lug
-
Breaking Capacity Code:
D -
Electrical Connection:
Lugs load/Lugs line -
Magnetic Hold Current:
1200 Amp -
Continuous Current Rating:
80% -
Control Type:
Operating handle
Product Description - QDL22225 - Square D Powerpact Circuit Breaker

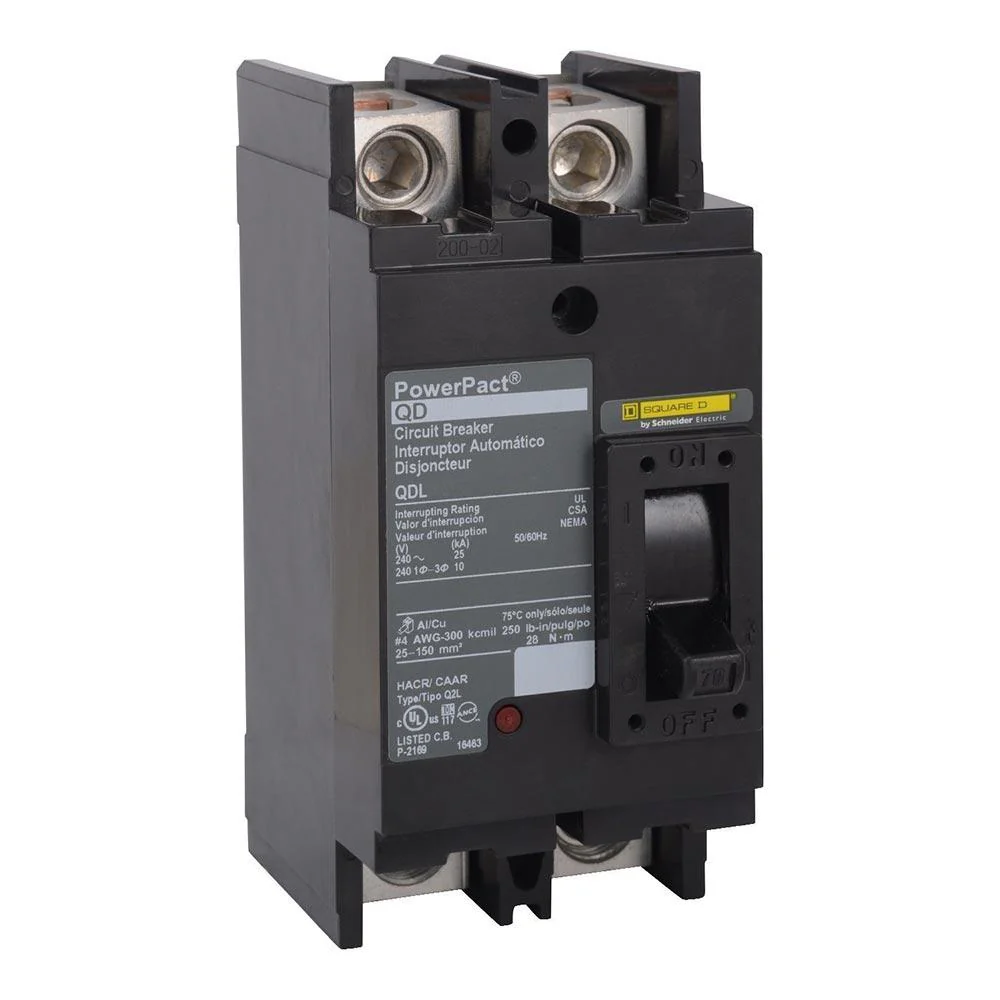

Schneider Electric / Square D, Powerpact, type QDL, 2P, 1PH, 225A, 240V, 25kA@240V, UL listed, standard interrupting capacity, feed-thru, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers.
