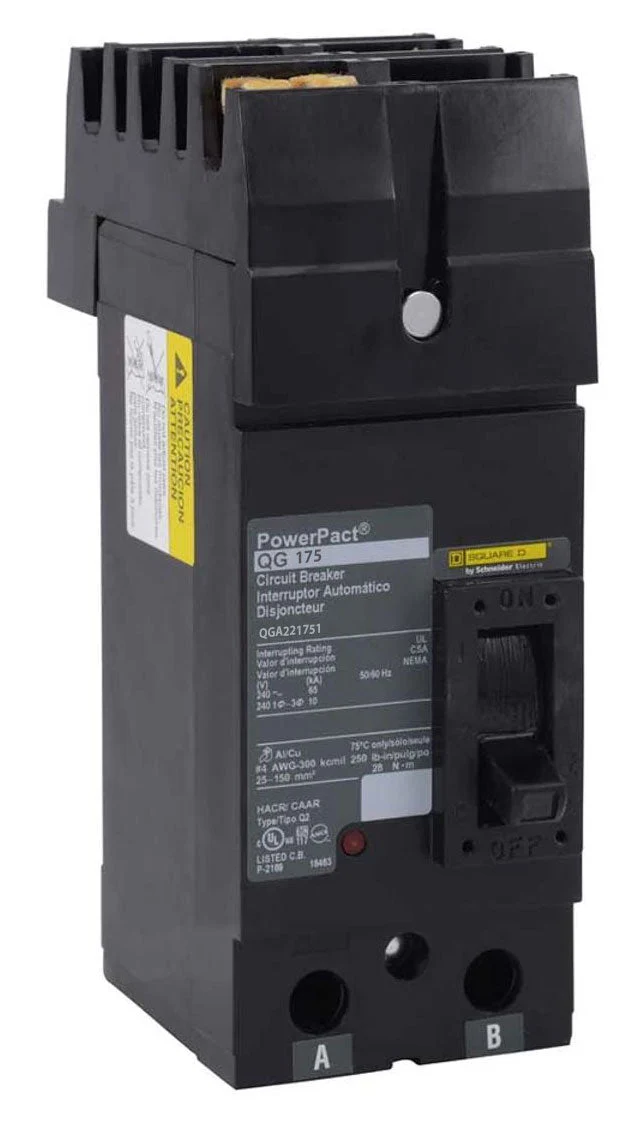

QGA221751 - Square D - Molded Case Circuit Breaker

Overview

Product Specifications - QGA221751 - Square D I-Line Circuit Breaker

Part Number:

QGA221751
Manufacturer:

Schneider Electric / Square D
Family:

I-Line
Pole:

2
Amp

175
Volt:

240
Phase:

1

Category:

Molded Case / 2-Pole
Connection:

I-Line Style Plug-In
Type:

QGA
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

65kA@240V

Dimensions

Dimensions (HxWxD):

4.25" x 7.44" x 12.31"

Weight:

4.9 lbs

Standards

Additional Details

Frame Type:

Q-Frame
Trip Unit Technology:

Thermal-magnetic
Line Rated Current:

175 Amp
Mounting Mode:

I-Line bracket

Breaking Capacity Code:

G
Electrical Connection:

TI-Line connection line/Lugs load
Magnetic Hold Current:

1200 Amp
Continuous Current Rating:

80%
Control Type:

Operating handle

Product Description - QGA221751 - Square D I-Line Circuit Breaker

Square D, I-Line, type QGA, 2P, A & C phase connection, 1PH, 125A, 240V, 65kA@240V, UL listed, high interrupting capacity, i-line style plug-in, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, thermal magnetic.

Documentation

Catalogue

Technical Specifications

Installation Instructions
