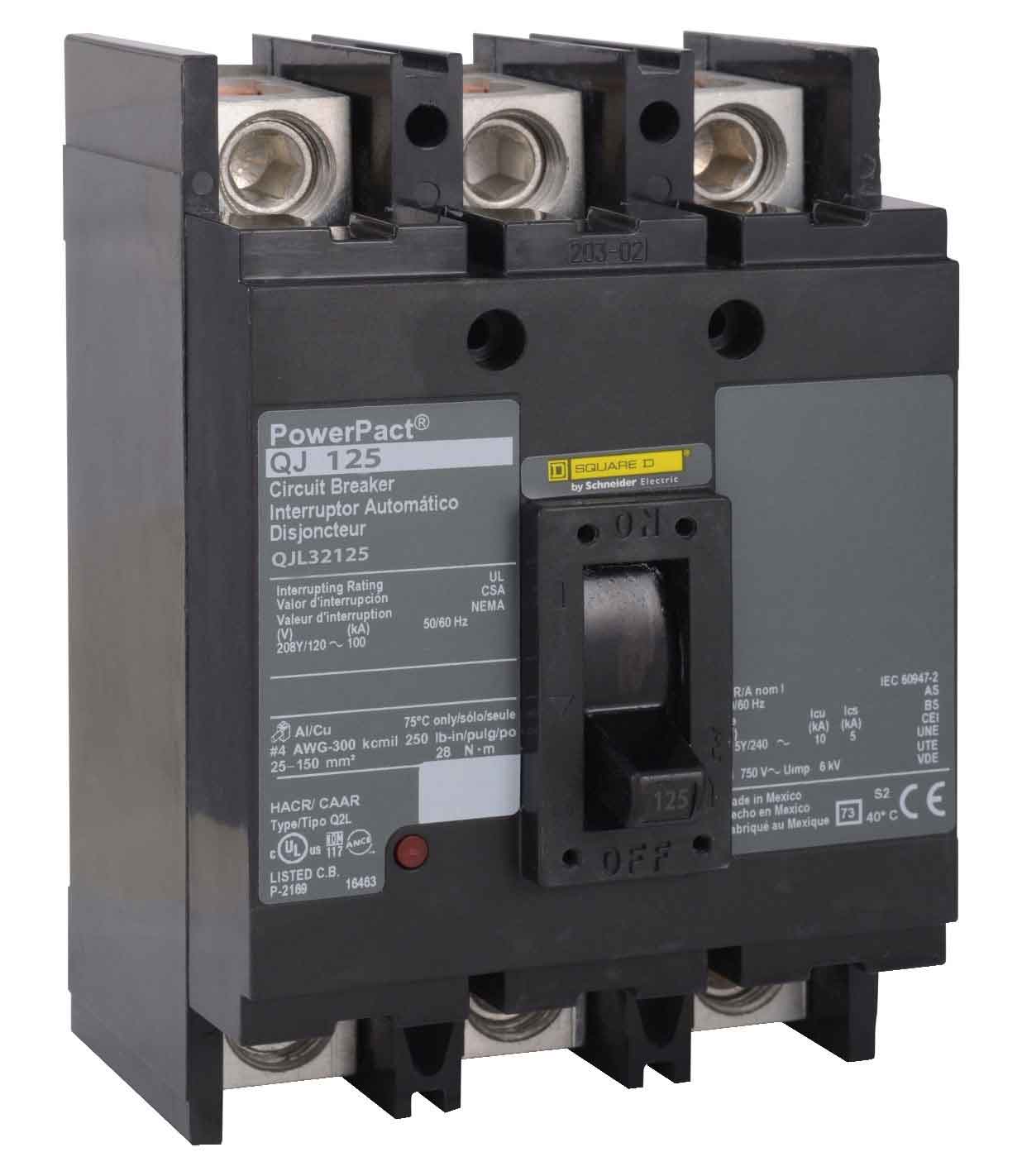

QJL32125 - Square D - Molded Case Circuit Breaker

Overview

Product Specifications - QJL32125 - Square D Powerpact Circuit Breaker

Part Number:

QJL32125
Manufacturer:

Schneider Electric / Square D
Family:

Powerpact
Pole:

3
Amp

125
Volt:

240
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

Feed-Thru
Type:

QJL
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

100kA@240V

Dimensions

Dimensions (HxWxD):

6.47" x 4.5" x 3.93"

Weight:

6.65 lbs

Standards

Additional Details

Frame Type:

Q-Frame
Trip Unit Technology:

Thermal-magnetic
Line Rated Current:

125 Amp
Mounting Mode:

Unit mount lug

Breaking Capacity Code:

J
Electrical Connection:

Lugs load/Lugs line
Magnetic Hold Current:

1200 Amp
Continuous Current Rating:

80%
Control Type:

Operating handle

Product Description - QJL32125 - Square D Powerpact Circuit Breaker

Schneider Electric / Square D, Powerpact, type QJL, 3P, 3PH, 125A, 240V, 100kA@240V, UL listed, extra high interrupting capacity, feed-thru, complete with non-interchangeable trip.
