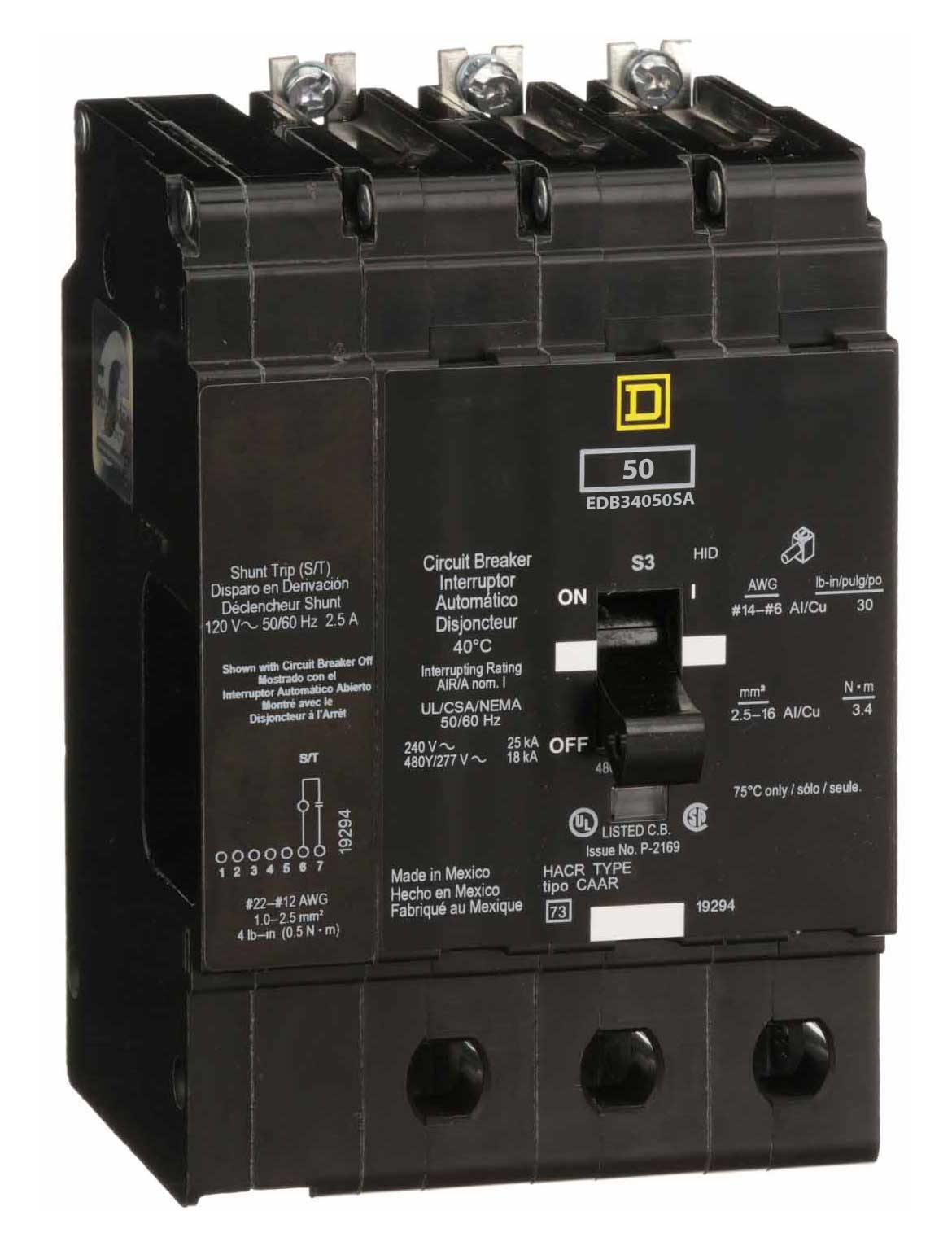

EDB34050SA - Square D - Molded Case Circuit Breakers

Overview

Product Specifications - EDB34050SA - Square D Molded Case Circuit Breakers

Part Number:

EDB34050SA
Manufacturer:
Schneider Electric / Square D
Family:

EDB Series
Pole:

3
Amp

50
Volt:

480
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

Bolt-On
Type:

EDB
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

18kA@480V

Dimensions

Dimensions (HxWxD):

5.66" x 3.92" x 4.05"

Weight:

4 lbs

Standards

Additional Details

Protection Type:

Short-Circuit / Overload
Module Type:

E-Frame
Trip Unit Technology:

Thermal-magnetic
Line Rated Current:

50 Amp
Maximum Operating Voltage:

480Y/277 V AC
Mounting Mode:

Bolt-on

Breaking Capacity Code

D
Electrical Connection:

Lugs aluminium
AWG Gauge:

AWG 12...AWG 2/0 aluminium / AWG 14...AWG 2/0 copper

Product Description - EDB34050SA - Square D Molded Case Circuit Breakers

Square D / Schneider Electric, EDB Series, type EDB, 3P, 3PH, 50A, 18kA@480V, complete with 120V shunt trip, standard interrupting capacity, bolt-on, thermal magnetic

Documentation

Catalogue

Installation Instructions

Technical Specifications

Select Condition

From $647.99

EDB34050SA - Square D - Molded Case Circuit Breakers—

$647.99

Select Condition

From $647.99

EDB34050SA - Square D - Molded Case Circuit Breakers—

$647.99
