FAL3601513M - Square D - Molded Case Circuit Breakers
Overview
Product Specifications - FAL3601513M - Schneider Electric Molded Case Circuit Breakers
-
Part Number:
FAL3601513M -
Manufacturer:
-
Family:
FAL Series -
Pole:
3 -
Amp
15 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
F Frame -
Functions:
I - Instantaneous -
Protection:
Magnetic Only -
AIC Ratings:
18kA@480V
Dimensions
-
Dimensions (HxWxD):
4.13 x 4.5 x 6 -
Weight:
‎5 lb
Standards
Product Description - FAL3601513M - Schneider Electric Molded Case Circuit Breakers

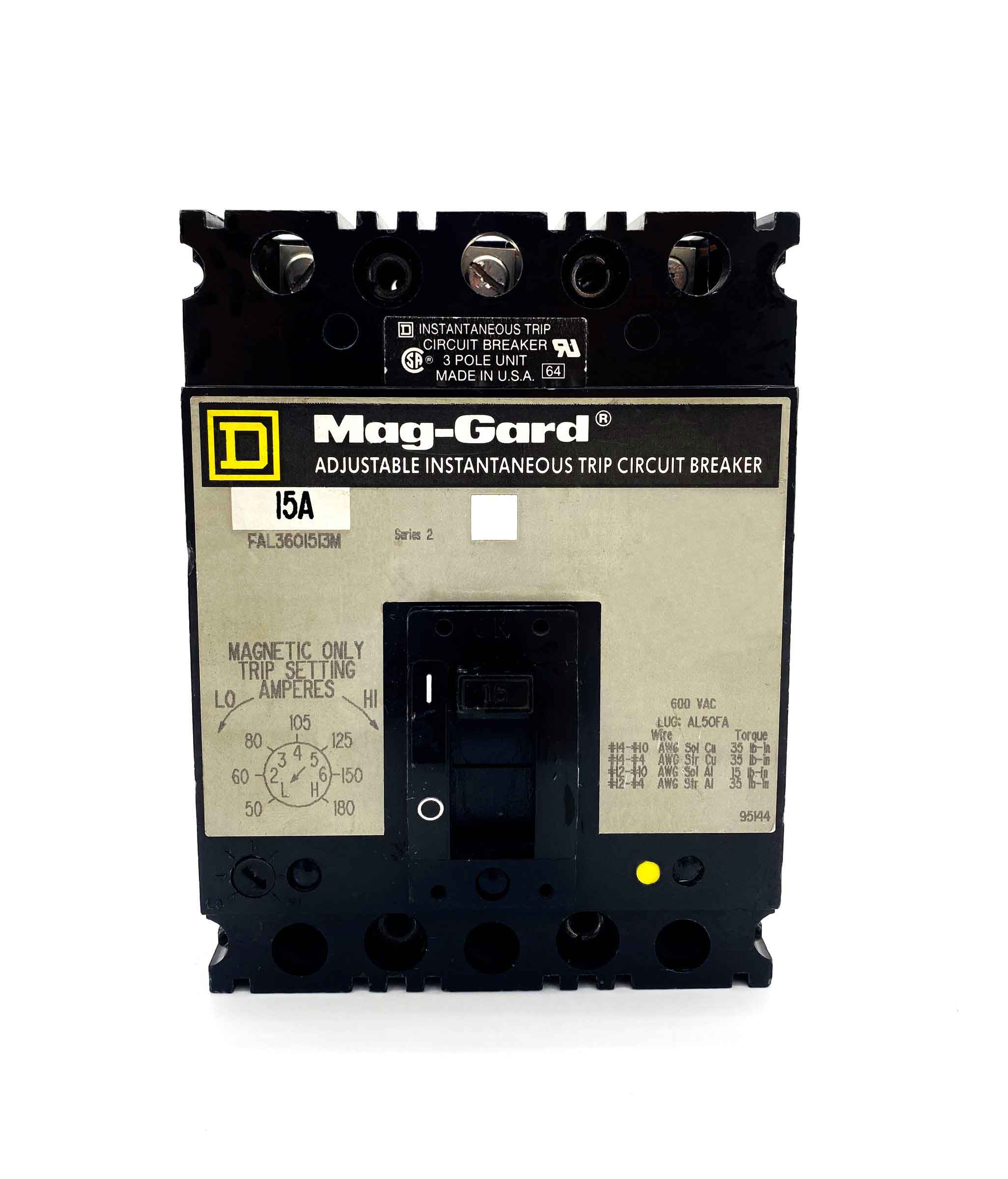

FAL3601513M, Square D, FAL Series, type FAL, 3P, 3PH, 15A, 600V, offers an 18kA@480V standard interrupting capacity and is UL listed. It operates as a Feed-Thru molded case circuit breaker complete with I - Instantaneous protection only, and line & load side lug terminals. It is a Mag-Gard MCP with a magnetic range of 50-180A and operates on Magnetic Only principles.
Original: $500.99
-70%$500.99
$150.30Product Information
