HDA260452 - Square D - Molded Case Circuit Breakers

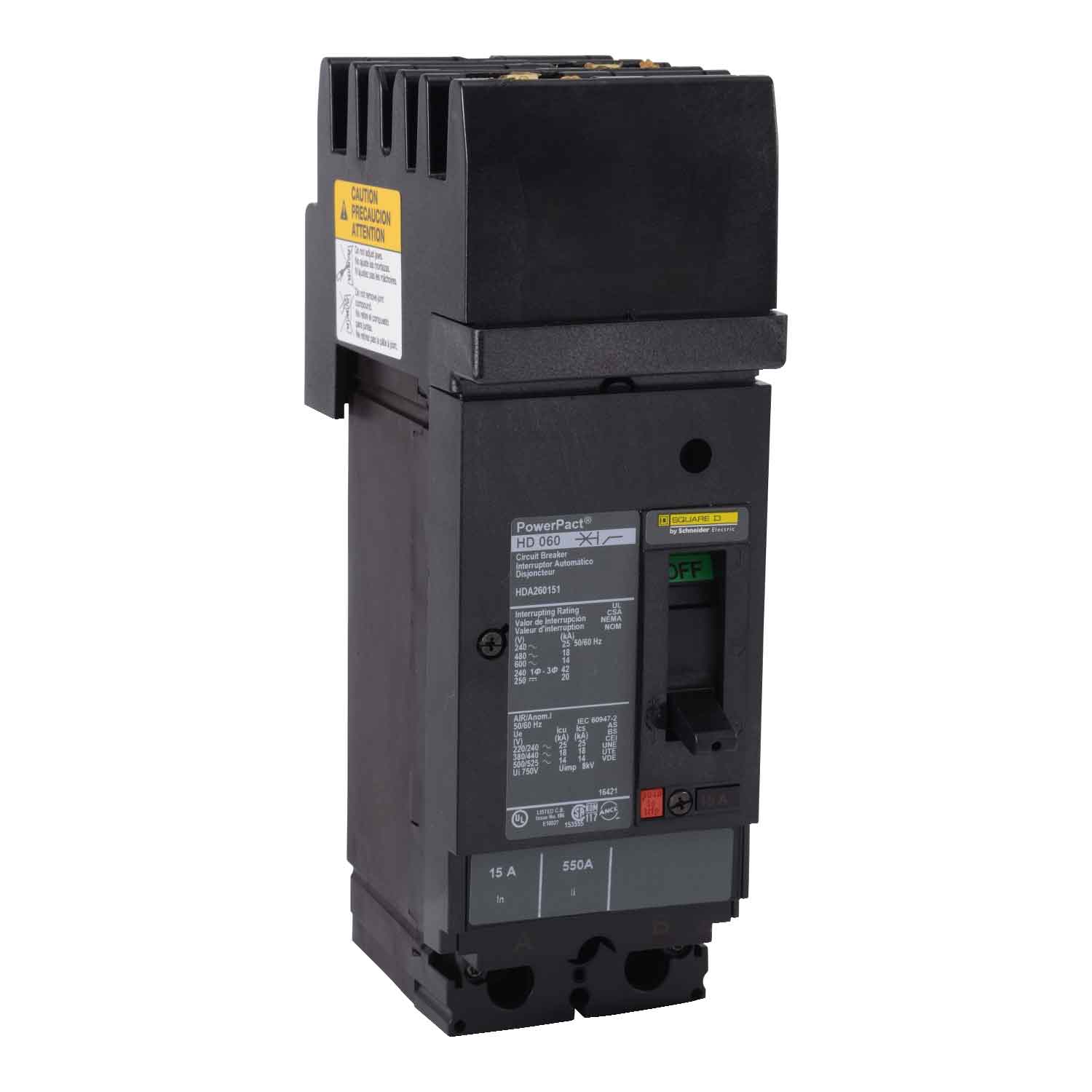

Product image 1

HDA260452 - Square D - Molded Case Circuit Breakers

Overview

Product Specifications - HDA260452 - Schneider Electric Molded Case Circuit Breakers

  • Category:

    Molded Case Breakers / 2-Pole

  • Connection:

    I-Line Style Plug-In

  • Type:

    H Frame

  • Functions:

    LI - Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    18kA@480V

Dimensions

  • Dimensions (HxWxD):

    3.39 x 4.09 x 6.42

  • Weight:

    4.85 lb

Standards

CSA Approved logo

Product Description - HDA260452 - Schneider Electric Molded Case Circuit Breakers

Continuing in the Powerpact series, Square-D presents a 1-phase (1PH) molded case circuit breaker configured for A & C phase connection. This 2-pole (2P) breaker boasts a 45A rating at 600V, with a standard interrupting capacity of 18kA@480V. UL listed and suitable for reverse fed applications, it offers reliable electrical protection. Complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, this Thermal Magnetic molded case circuit breaker ensures safety across diverse applications.

Select Condition
From $176.10

Original: $586.99

-70%
HDA260452 - Square D - Molded Case Circuit Breakers—

$586.99

$176.10
