HLA36060U44X - Square D - Molded Case Circuit Breakers
Overview
Product Specifications - HLA36060U44X - Schneider Electric Molded Case Circuit Breakers
-
Part Number:
HLA36060U44X -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
60 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
H Frame -
Functions:
LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault -
Protection:
Solid State -
AIC Ratings:
100kA@480V
Dimensions
-
Dimensions (HxWxD):
3.39 x 4.09 x 6.42 -
Weight:
4.85 lb
Standards
Product Description - HLA36060U44X - Schneider Electric Molded Case Circuit Breakers

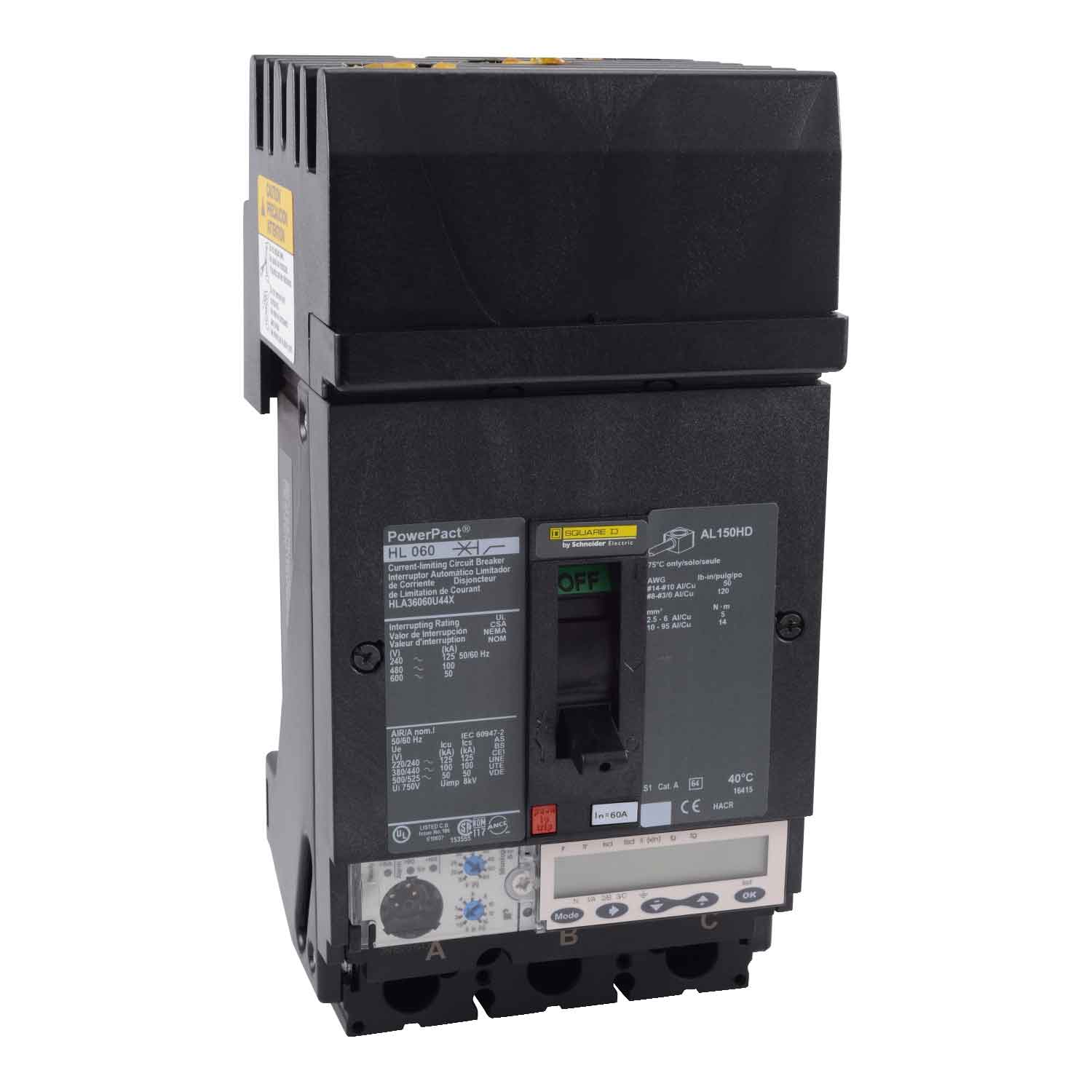

Square D's Powerpact HLA36060U44X is a three-phase, 60A molded case circuit breaker, part of the HLA series. Designed for ABC phase connection, it operates at 600V with an interrupting capacity of 100kA at 480V. The I-Line Style Plug-In design enhances its flexibility, and its suitability for reverse connection is complemented by the option for 2P applications. The micrologic ammeter trip unit provides non-interchangeable trip settings, including LSIG (Long-Time, Short-Time, Instantaneous, and Ground Fault) functions. Solid State electronic technology ensures reliable and precise operation.
