HLA36100U31X - Square D - Molded Case Circuit Breakers
Overview
Product Specifications - HLA36100U31X - Schneider Electric Molded Case Circuit Breakers
-
Part Number:
HLA36100U31X -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
100 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
H Frame -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
100kA@480V
Dimensions
-
Dimensions (HxWxD):
3.39 x 4.09 x 6.42 -
Weight:
4.85 lb
Standards
Product Description - HLA36100U31X - Schneider Electric Molded Case Circuit Breakers

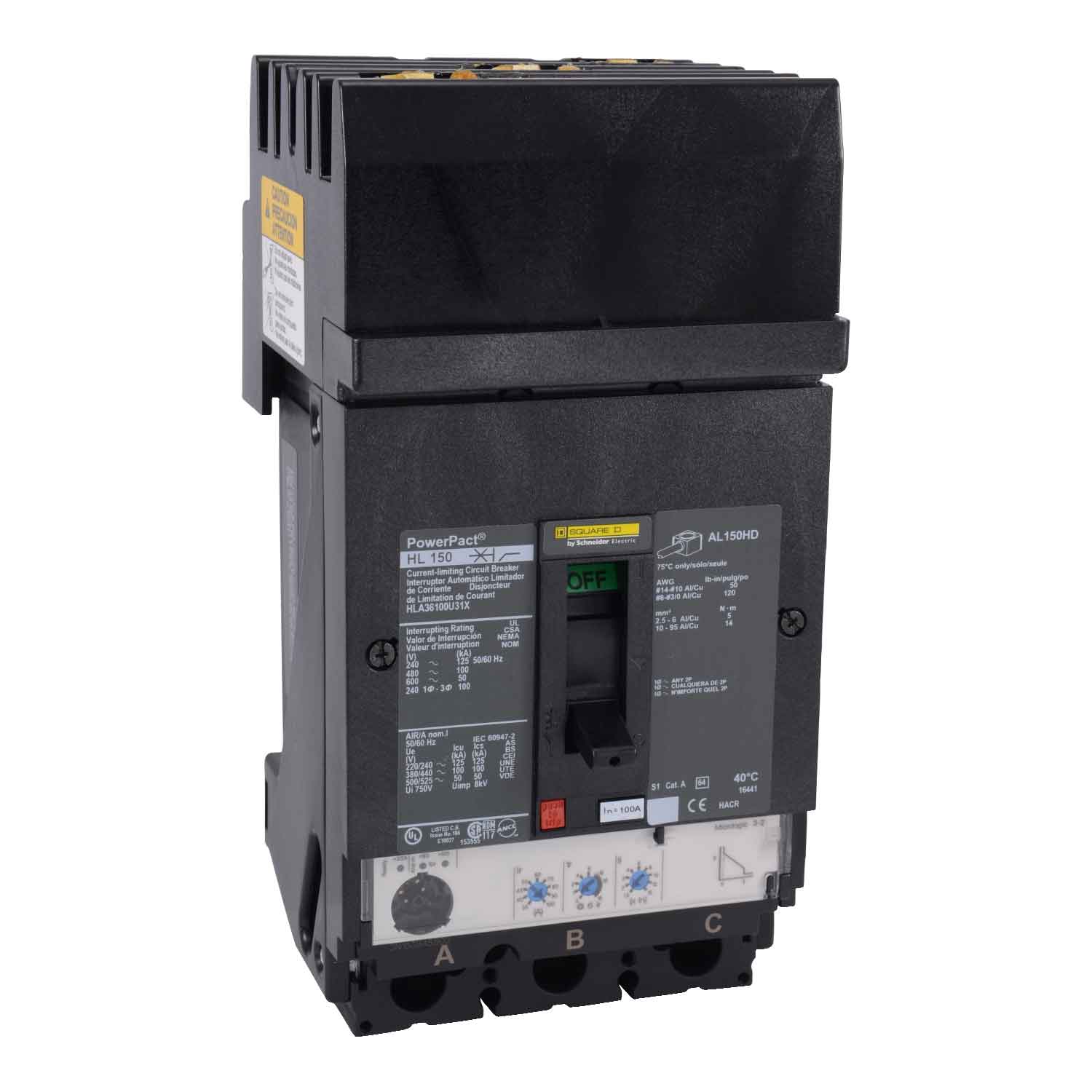

Square D's Powerpact HLA36100U31X is a 100A molded case circuit breaker, designed for three-phase applications with an ABC phase connection. Operating at 600V, it delivers reliable protection with an interrupting capacity of 100kA at 480V. The I-Line Style Plug-In design and UL listing enhance its versatility, making it suitable for reverse connection or 2P applications. Equipped with a micrologic standard 3.2 trip unit, providing non-interchangeable trip settings including Long-Time and Instantaneous functions, this breaker utilizes Solid State electronic technology for precise performance.
