HOMT220220 - Square D - Molded Case Circuit Breakers

Overview

Product Specifications - HOMT220220 - Square D Molded Case Circuit Breakers

Standards

Product Description - HOMT220220 - Square D Molded Case Circuit Breakers

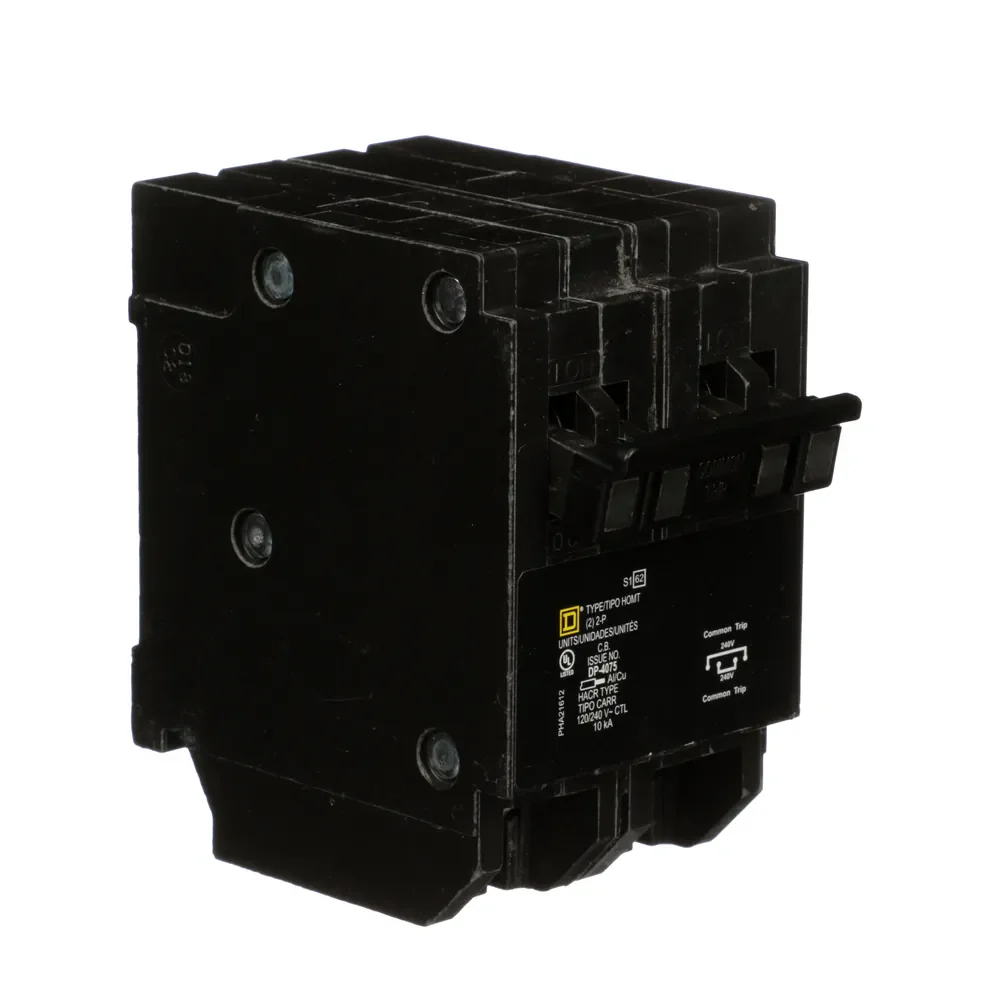

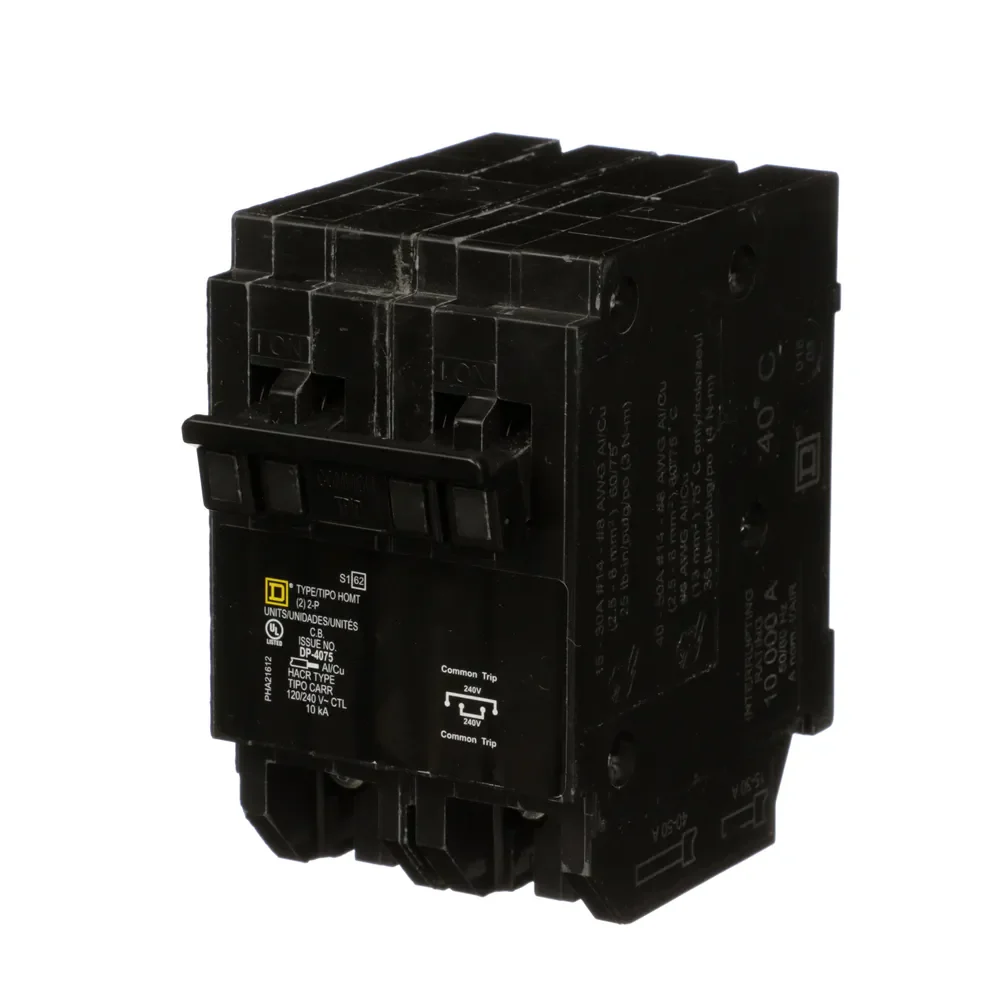

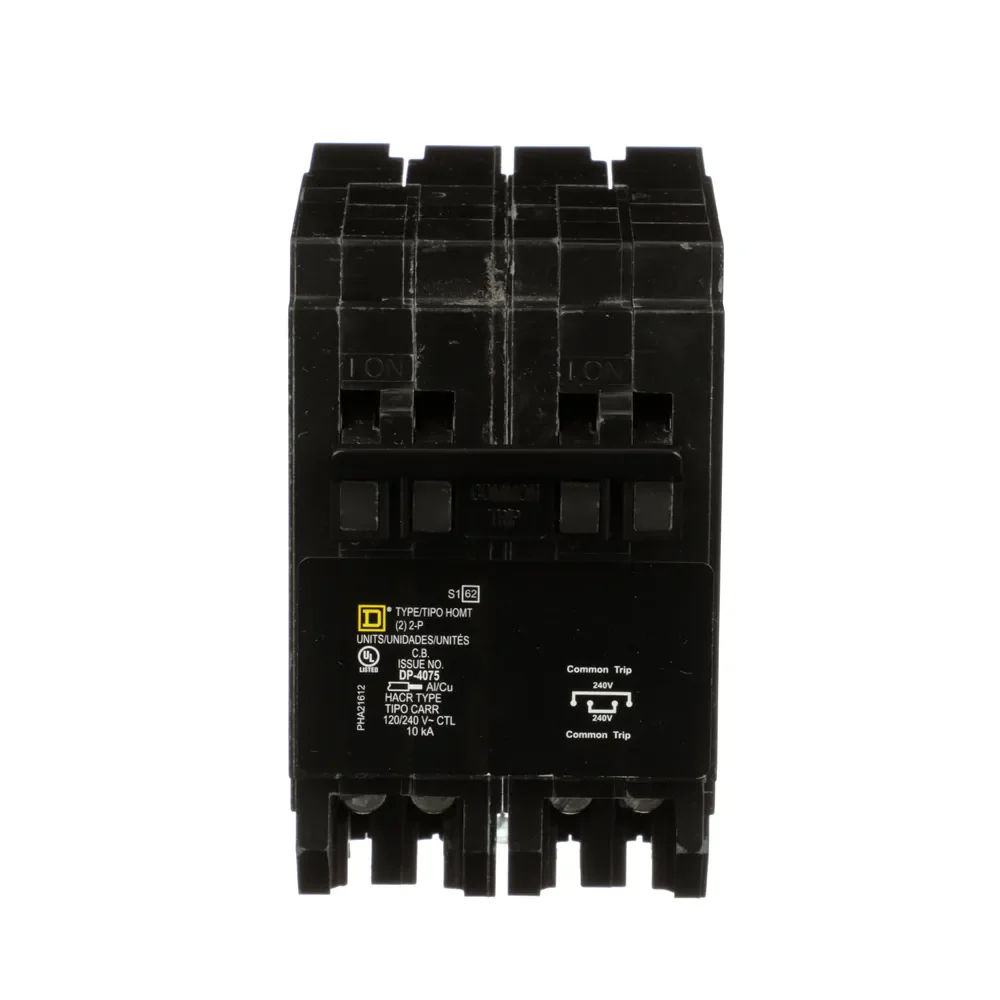

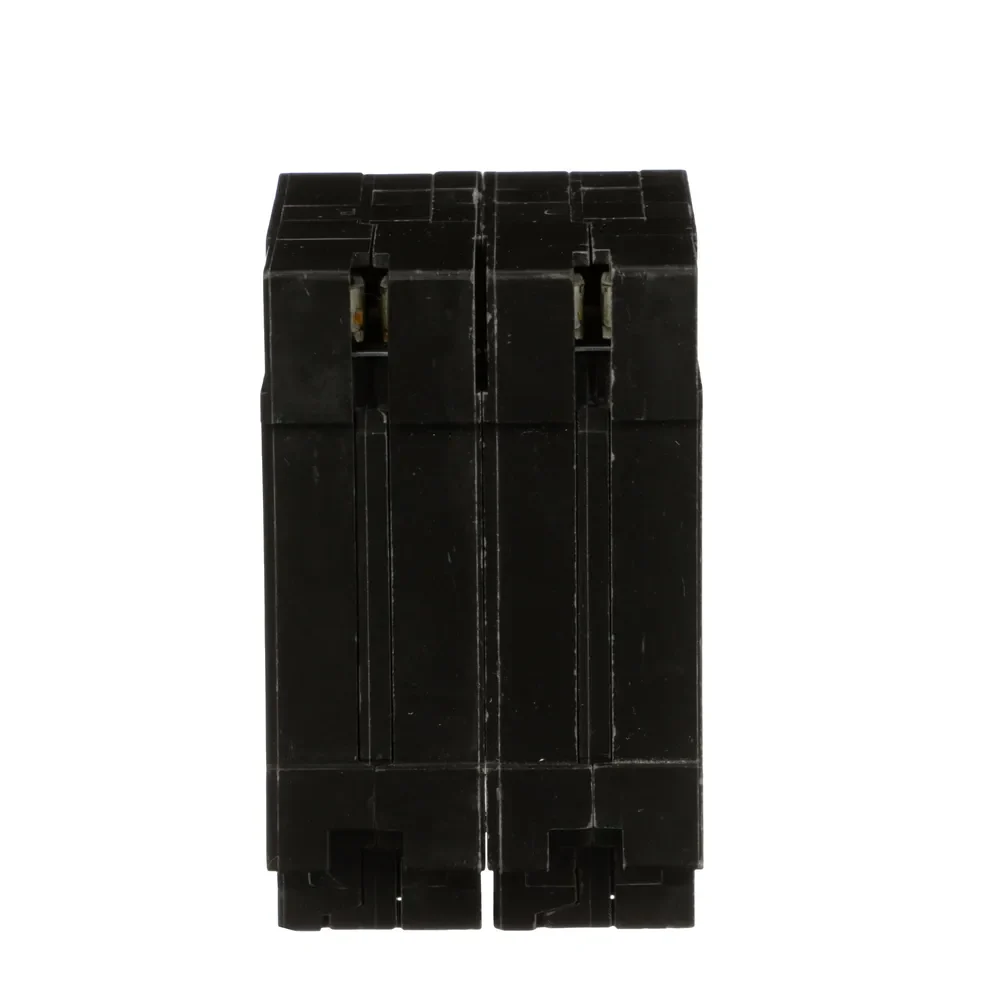

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. The HOMT circuit breaker is two tandem 2 pole thermal magnetic circuit breakers manufactured in tandem. This quad tandem breaker occupies two HOM pole spaces. This quad tandem circuit breaker consists of a two pole breaker and a two pole breaker. This quad tandem circuit breaker provides a standard circuit protection and is HACR rated. One of the two pole breaker is rated 20A at 120/240 VAC and other two pole breaker is rated 20A at 120/240 VAC. This circuit breaker provides 10 kA breaking capacity. The 2 pole breakers of this quad tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The tandem breaker is 3.13 inches tall, 2.00 inches wide and 2.98 inches deep. HOMT tandem breakers are UL Listed
