JDA36250U33X - Square D - Molded Case Circuit Breakers
Overview
Product Specifications - JDA36250U33X - Schneider Electric Molded Case Circuit Breakers
-
Part Number:
JDA36250U33X -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
250 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
J Frame -
Functions:
LSI - Long-Time, Short-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
18kA@480V

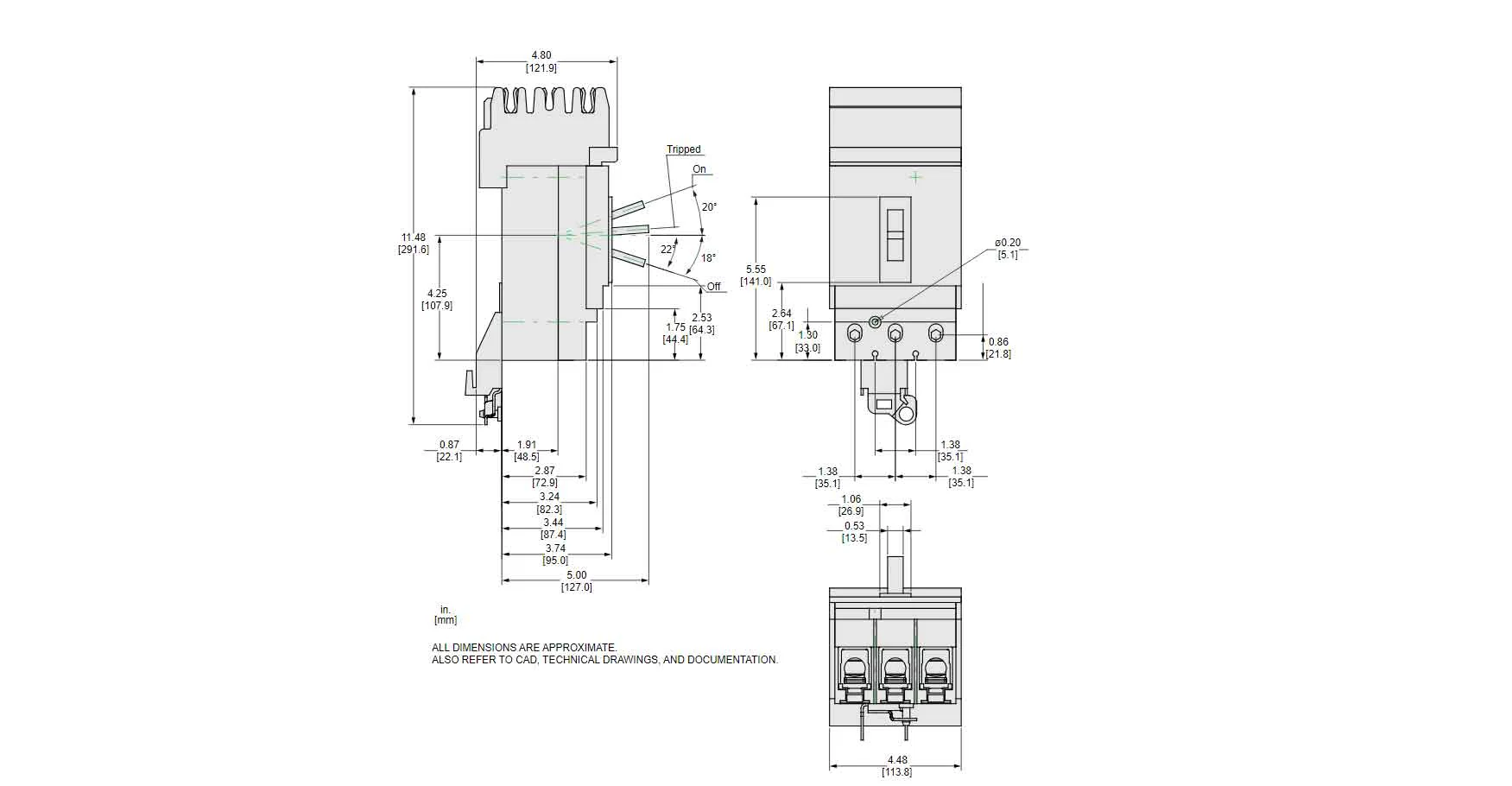

Dimensions
-
Dimensions (HxWxD):
3.39 x 4.09 x 7.52 -
Weight:
5.29 lb
Standards
Product Description - JDA36250U33X - Schneider Electric Molded Case Circuit Breakers

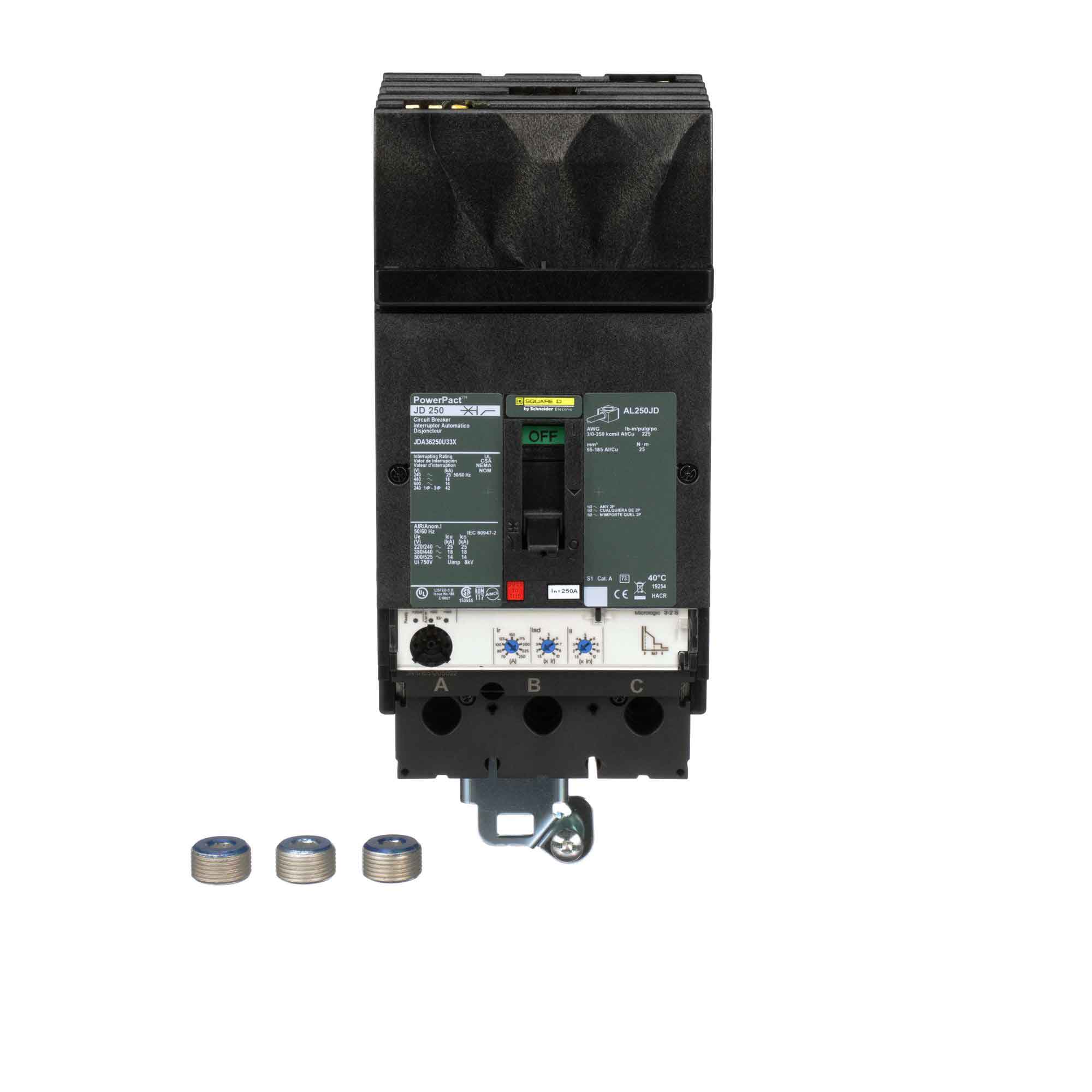

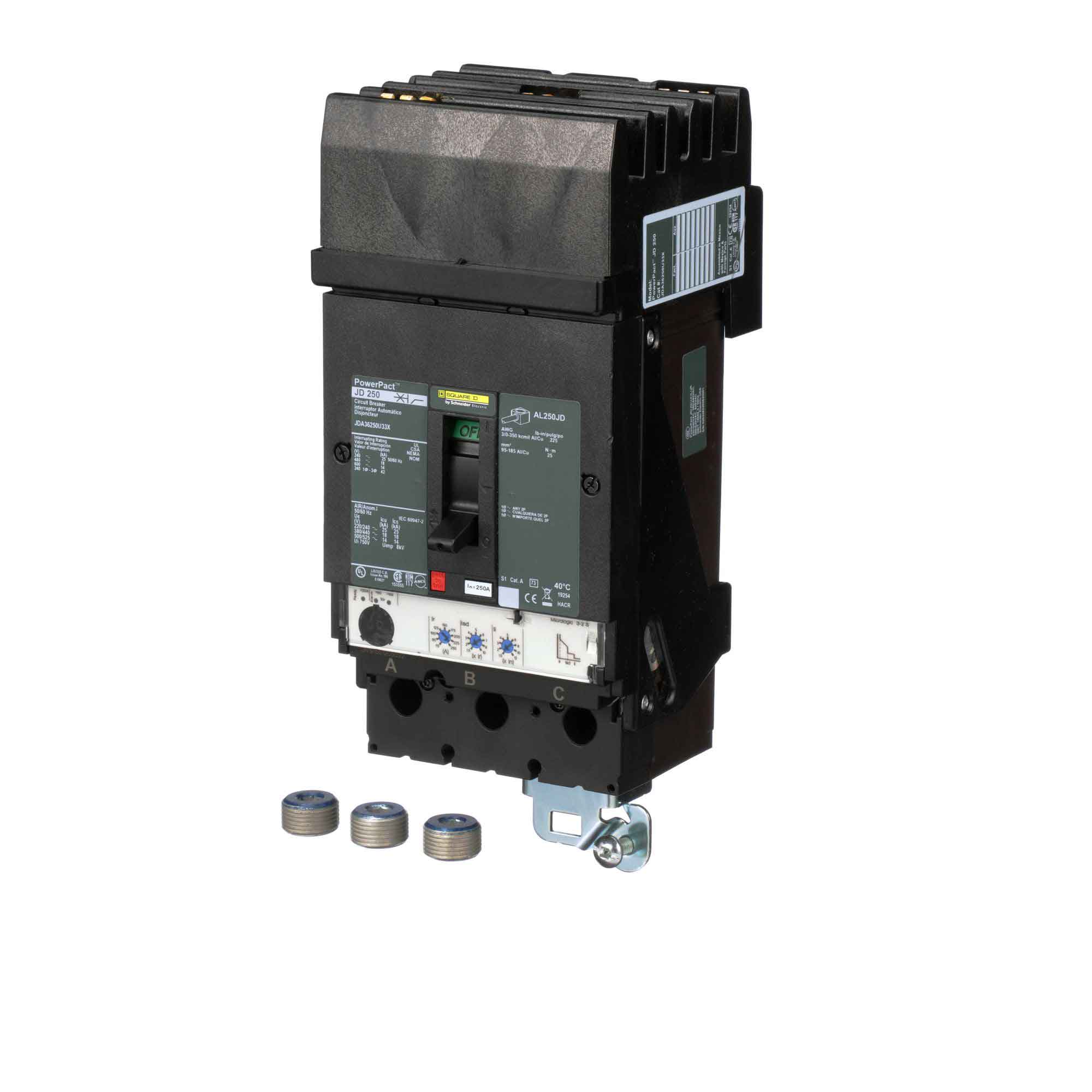

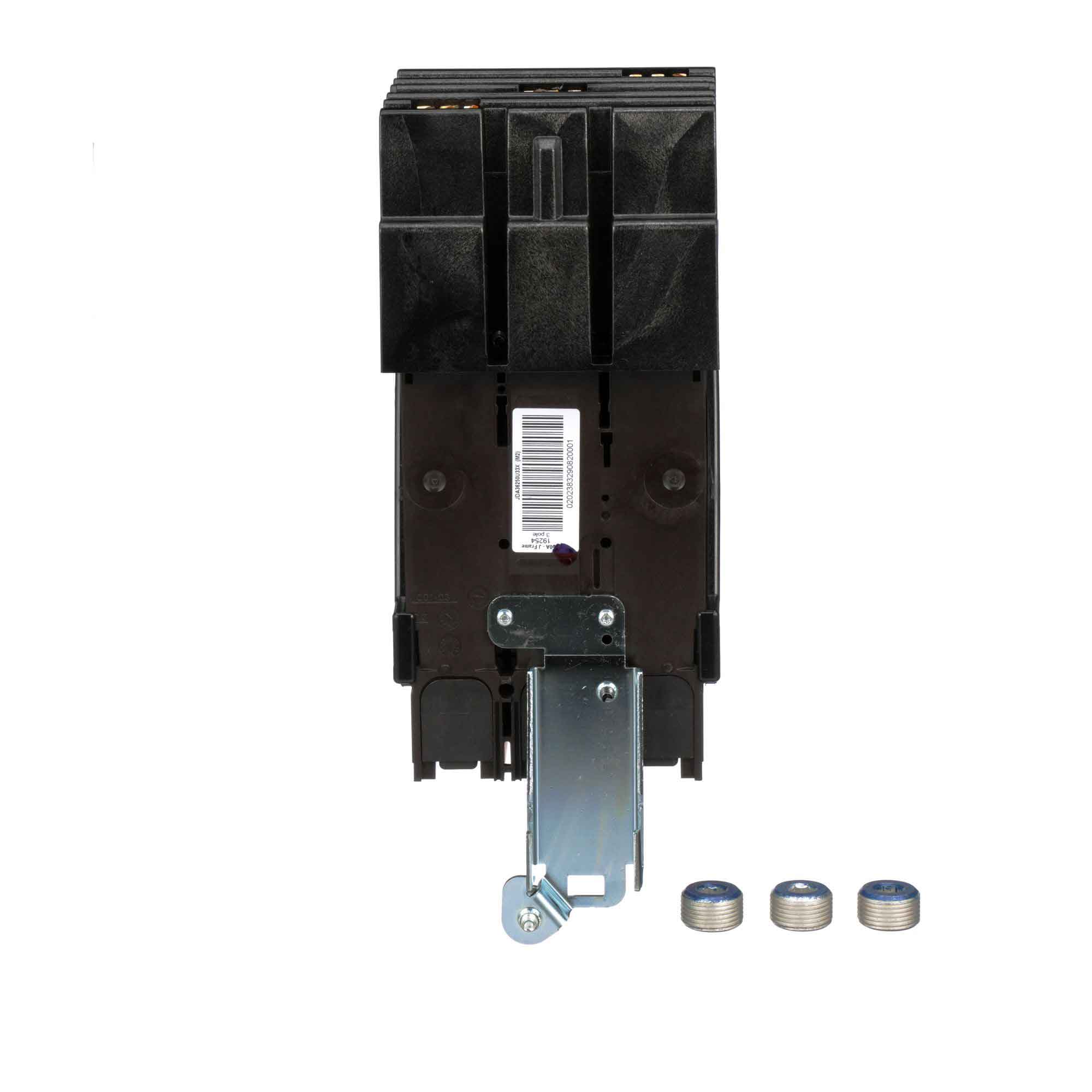

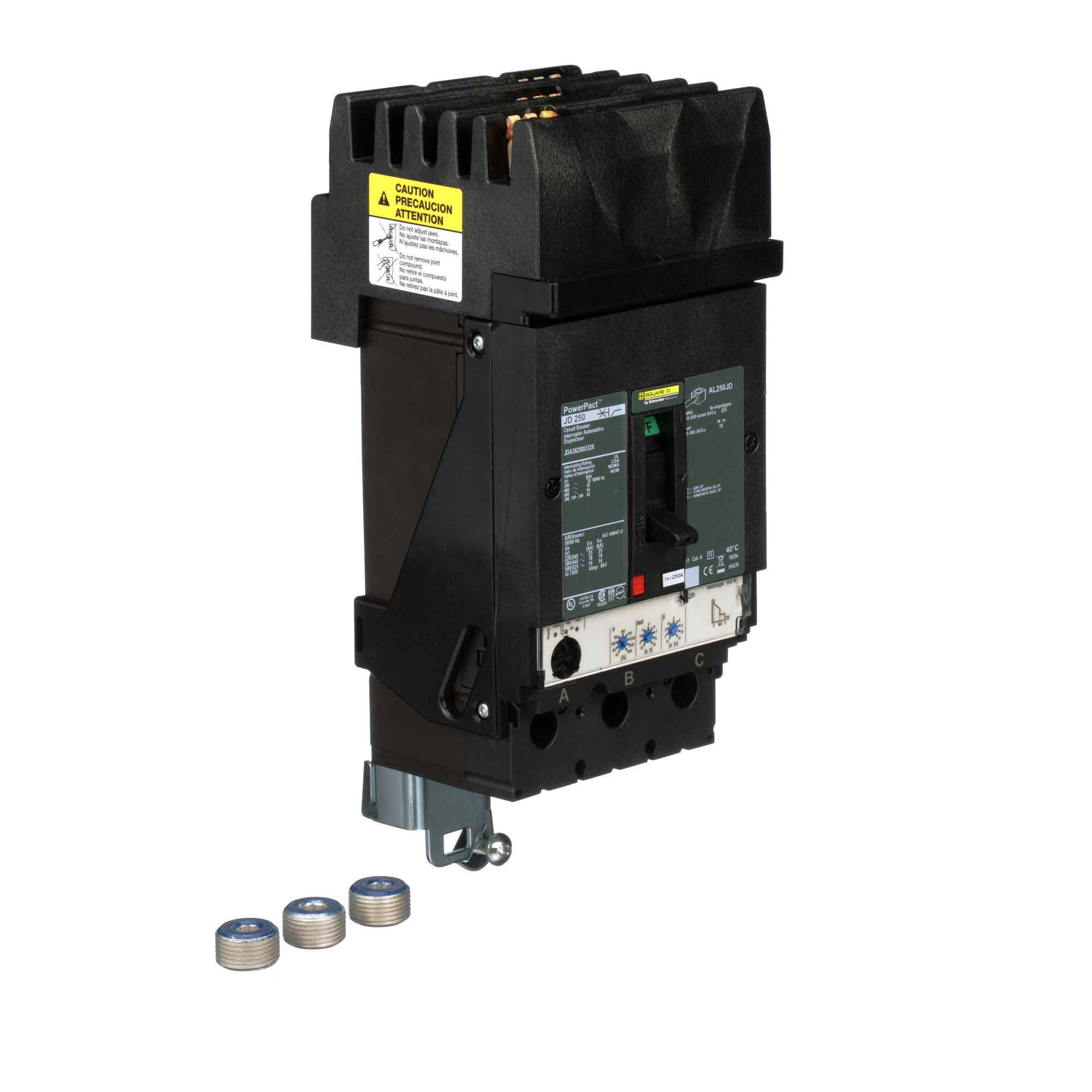

Square D, Powerpact type JDA, 3P, ABC phase connection, 3PH, 250A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse connection and can be used for 2P applications. It is equipped with a micrologic standard 3.2S non-interchangeable trip, providing LSI (Long-Time, Short-Time, and Instantaneous) trip functions. The molded case circuit breaker incorporates Solid State electronic technology.
Original: $1,799.99
-70%$1,799.99
$540.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Overview
Product Specifications - JDA36250U33X - Schneider Electric Molded Case Circuit Breakers
-
Part Number:
JDA36250U33X -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
250 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
J Frame -
Functions:
LSI - Long-Time, Short-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
18kA@480V
Dimensions
-
Dimensions (HxWxD):
3.39 x 4.09 x 7.52 -
Weight:
5.29 lb
Standards
Product Description - JDA36250U33X - Schneider Electric Molded Case Circuit Breakers
Square D, Powerpact type JDA, 3P, ABC phase connection, 3PH, 250A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse connection and can be used for 2P applications. It is equipped with a micrologic standard 3.2S non-interchangeable trip, providing LSI (Long-Time, Short-Time, and Instantaneous) trip functions. The molded case circuit breaker incorporates Solid State electronic technology.
