JDA36250U44X - Square D - Molded Case Circuit Breakers

Overview

Product Specifications - JDA36250U44X - Square D Molded Case Circuit Breakers

Part Number:

JDA36250U44X
Manufacturer:
Schneider Electric / Square D
Family:

Powerpact
Pole:

3
Amp

250
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

I-Line Style Plug-In
Type:

JDA
Functions:

LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
Protection:

Solid State
AIC Ratings:

18kA@480V

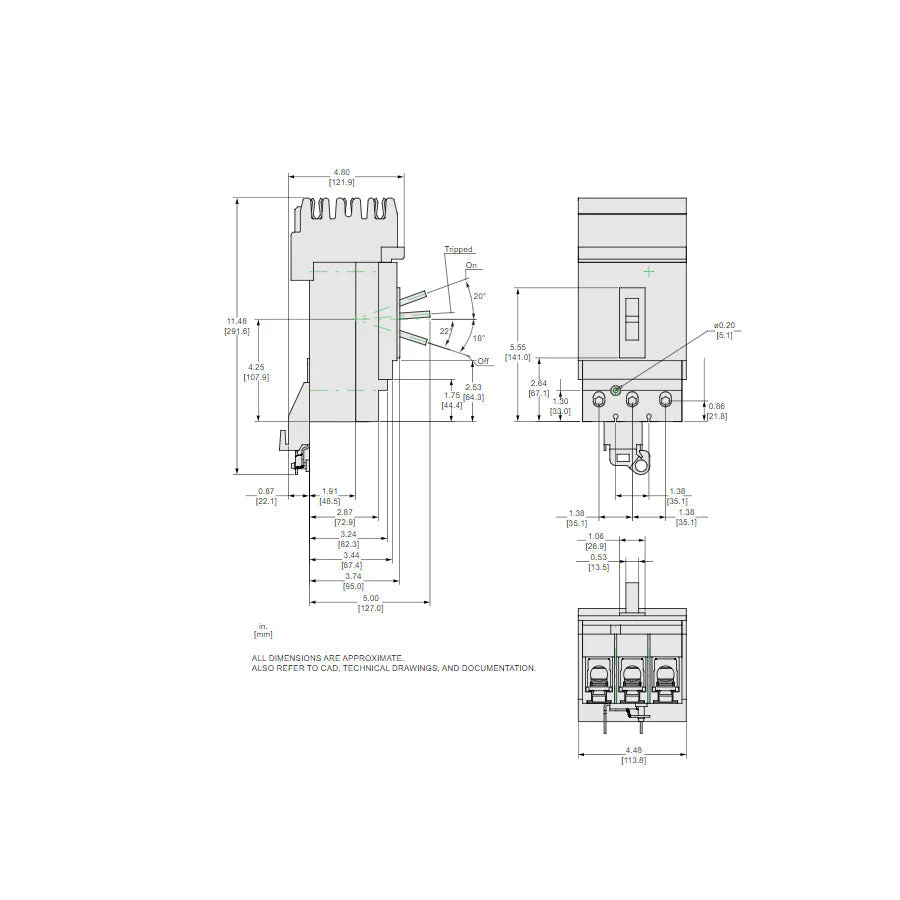

Dimensions

Dimensions (HxWxD):

7.52" x 4.09" x 3.39"

Weight:

5.29 lbs

Standards

Additional Details

Protection Type:

Short-Circuit / Overload
Trip Unit Technology:

Electronic, ammeter, MicroLogic 6.2 A, LSIG
Line Rated Current:

250 Amp
Mounting Mode:

I-Line bracket

Breaking Capacity Code

D
Electrical Connection:

I-Line connection line / Lugs load
Magnetic Hold Current:

1250 Amp
Continuous Current Rating

80%
Control Type:

Toggle
AWG Gauge:

AWG 3/0...350 kcmil aluminium/copper terminals

Product Description - JDA36250U44X - Square D Molded Case Circuit Breakers

Square D, type JDA, 3P, ABC phase connection, 3PH, 250A, 600V, 18kA@480V, standard interrupting capacity, suitable for reverse connection, complete with micrologic ammeter 6.2A non-interchangeable trip, LSIG - Long-Time, Short-Time, solid state electronic, Molded Case Circuit Breaker
