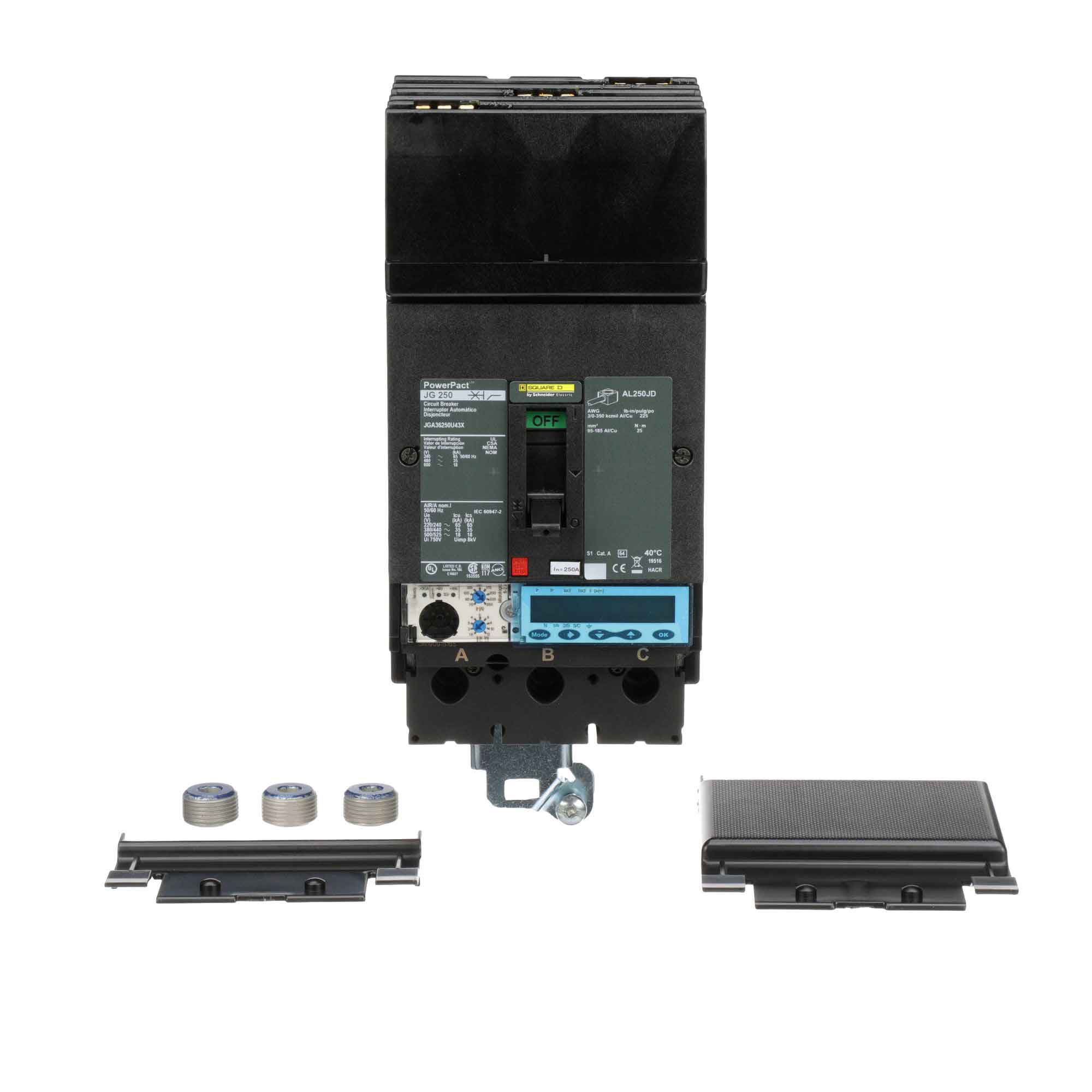

JGA36250U43X - Square D - Molded Case Circuit Breakers
Overview
Product Specifications - JGA36250U43X - Schneider Electric Molded Case Circuit Breakers
-
Part Number:
JGA36250U43X -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
250 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
I-Line Style Plug-In -
Type:
J Frame -
Functions:
LSI - Long-Time, Short-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
3.39 x 4.09 x 7.52 -
Weight:
5.29 lb
Standards
Product Description - JGA36250U43X - Schneider Electric Molded Case Circuit Breakers
3P, ABC phase connection, 3PH, 250A, 600V, 35kA@480V, high interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse connection. It comes complete with a micrologic ammeter 5.2A non-interchangeable trip, providing LSI (Long-Time, Short-Time, and Instantaneous) trip functions. The breaker incorporates Solid State electronic technology and comes in a molded case.
Original: $2,097.99
-70%$2,097.99
$629.40Product Information
