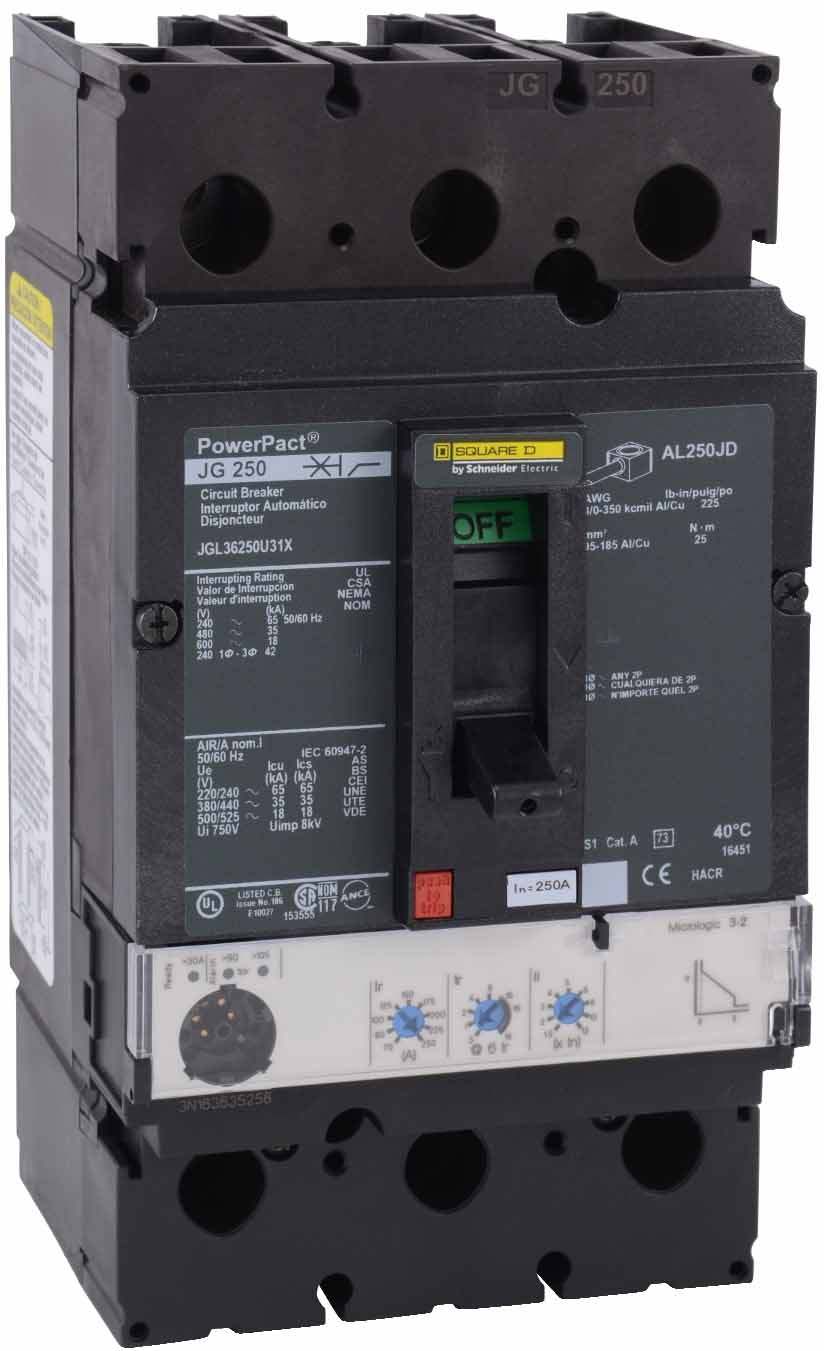

JGL36250U31X - Square D - Molded Case Circuit Breakers

Overview

Product Specifications - JGL36250U31X - Square D Molded Case Circuit Breakers

Part Number:

JGL36250U31X
Manufacturer:
Schneider Electric / Square D
Family:

Powerpact
Pole:

3
Amp

250
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

Feed-Thru
Type:

JGL
Functions:

LI - Long-Time and Instantaneous
Protection:

Solid State
AIC Ratings:

35kA@480V

Dimensions

Dimensions (HxWxD):

7.52" x 4.09" x 3.39"

Weight:

5.29 lbs

Standards

Additional Details

Protection Type:

Short-Circuit / Overload
Trip Unit Technology:

Electronic, standard, MicroLogic 3.2, LI
Line Rated Current:

250 Amp
Mounting Mode:

Unit mount lug

Breaking Capacity Code

G
Electrical Connection:

Lugs line / Lugs load
Continuous Current Rating

80%
Control Type:

Toggle
AWG Gauge:

AWG 3/0...350 kcmil aluminium/copper terminals

Product Description - JGL36250U31X - Square D Molded Case Circuit Breakers

Schneider Electric / Square D, Powerpact, type JGL, 3P, 3PH, 250A, 600V, feed-thru, UL listed, suitable for reverse fed applications, can be used for 2P applications, complete with micrologic standard non-interchangeable trip, line & load side lug terminals, solid state

Documentation

Catalogue

Installation Instructions

Technical Specifications

Select Condition

From $1,479.99

JGL36250U31X - Square D - Molded Case Circuit Breakers—

$1,479.99

Select Condition

From $1,479.99

JGL36250U31X - Square D - Molded Case Circuit Breakers—

$1,479.99
