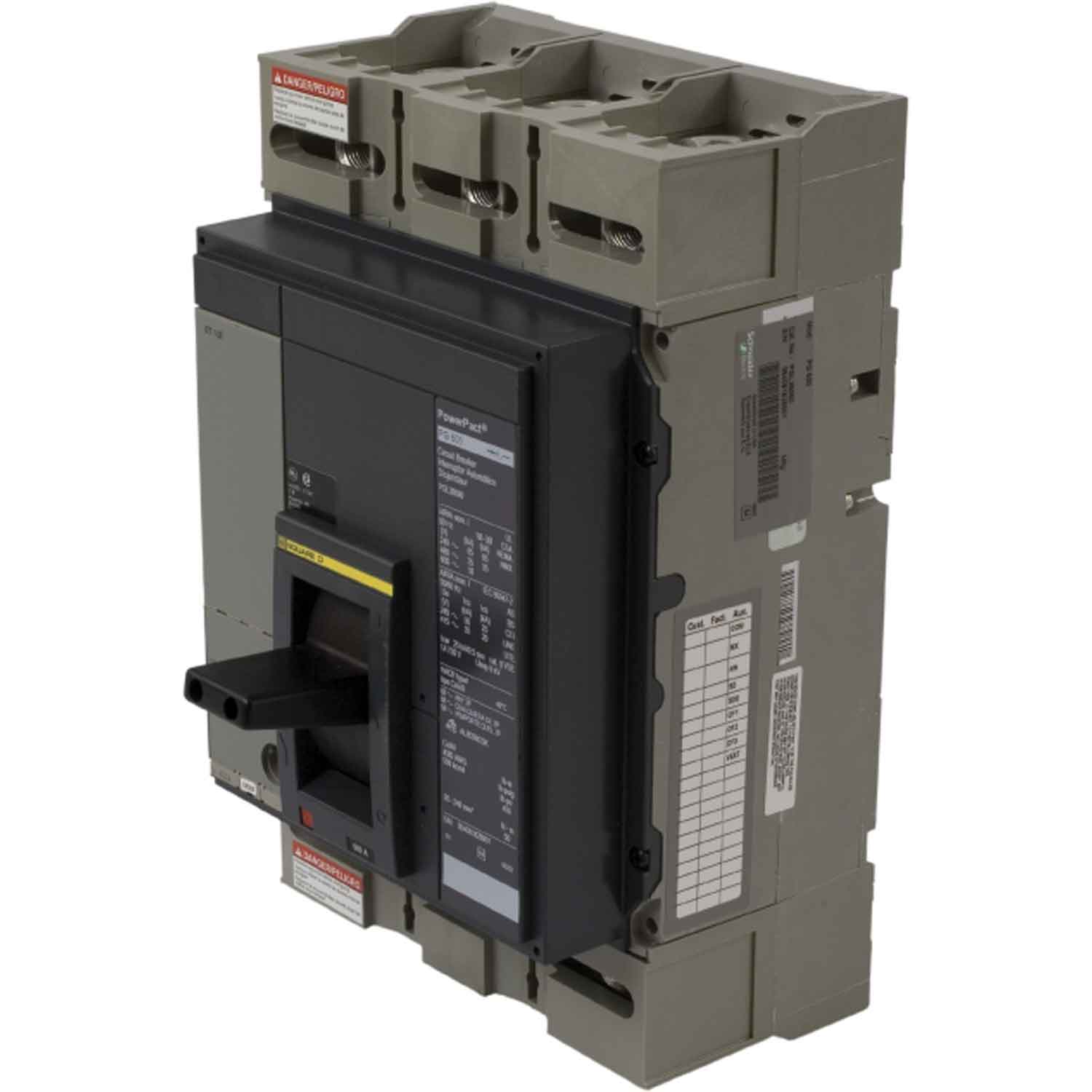

PGL36060 - Square D - Molded Case Circuit Breakers
Overview
Product Specifications - PGL36060 - Schneider Electric Molded Case Circuit Breakers
-
Part Number:
PGL36060 -
Manufacturer:
-
Family:
Powerpact -
Pole:
3 -
Amp
600 -
Volt:
600 -
Phase:
3
-
Category:
-
Connection:
Feed-Thru -
Type:
P Frame -
Functions:
LI - Long-Time and Instantaneous -
Protection:
Solid State -
AIC Ratings:
35kA@480V
Dimensions
-
Dimensions (HxWxD):
8.05 x 8.27 x 12.86 -
Weight:
32 lb
Standards
Product Description - PGL36060 - Schneider Electric Molded Case Circuit Breakers
Square D, Schneider Electric, Powerpact, type PGL, 3P, 3PH, 600A, 600V, 35kA@480V, UL listed, standard interrupting capacity, Feed-Thru. Complete with basic non-interchangeable ET 1.0I trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals. Solid State electronic, molded case circuit breakers.
