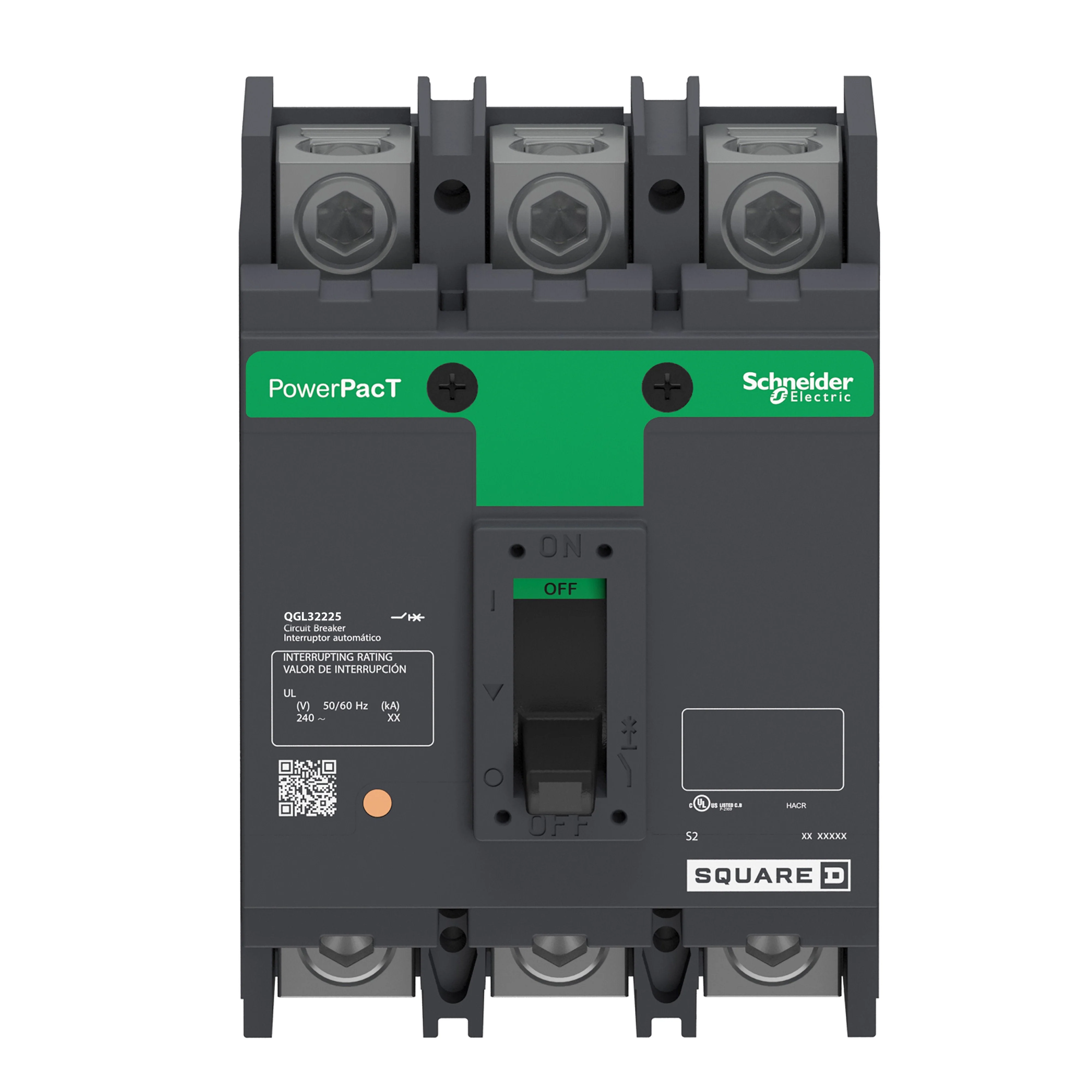

QGL32225 - Square D - Molded Case Circuit Breakers

Overview

Product Specifications - QGL32225 - Square D Molded Case Circuit Breakers

Part Number:

QGL32225
Manufacturer:
Schneider Electric / Square D
Family:

Powerpact
Pole:

3
Amp

225
Volt:

240
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

Feed-Thru
Type:

QGL
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

65kA@240V

Dimensions

Dimensions (HxWxD):

6.47" x 4.5" x 3.93"

Weight:

4 lbs

Standards

Additional Details

Trip Unit Technology:

Thermal-magnetic
Line Rated Current:

225 Amp
Mounting Mode:

Unit mount lug

Breaking Capacity Code

G
Electrical Connection:

Lugs load / Lugs line
Magnetic Hold Current:

1200 Amp
Continuous Current Rating

80%
Control Type:

Operating handle

Product Description - QGL32225 - Square D Molded Case Circuit Breakers

Schneider Electric / Square D, Powerpact, type QGL, 3P, 3PH, 225A, 240V, 65kA@240V, high interrupting capacity, complete with non-interchangeable trip, and line & load side lug terminals, thermal magnetic

Documentation

Catalogue

Installation Instructions

Technical Specifications
