9001BG305 - Square D - Motor Control Part And Accessory

Overview

Product Specifications - 9001BG305 - Square D Motor Control Part And Accessory

Dimensions

Standards

Product Description - 9001BG305 - Square D Motor Control Part And Accessory

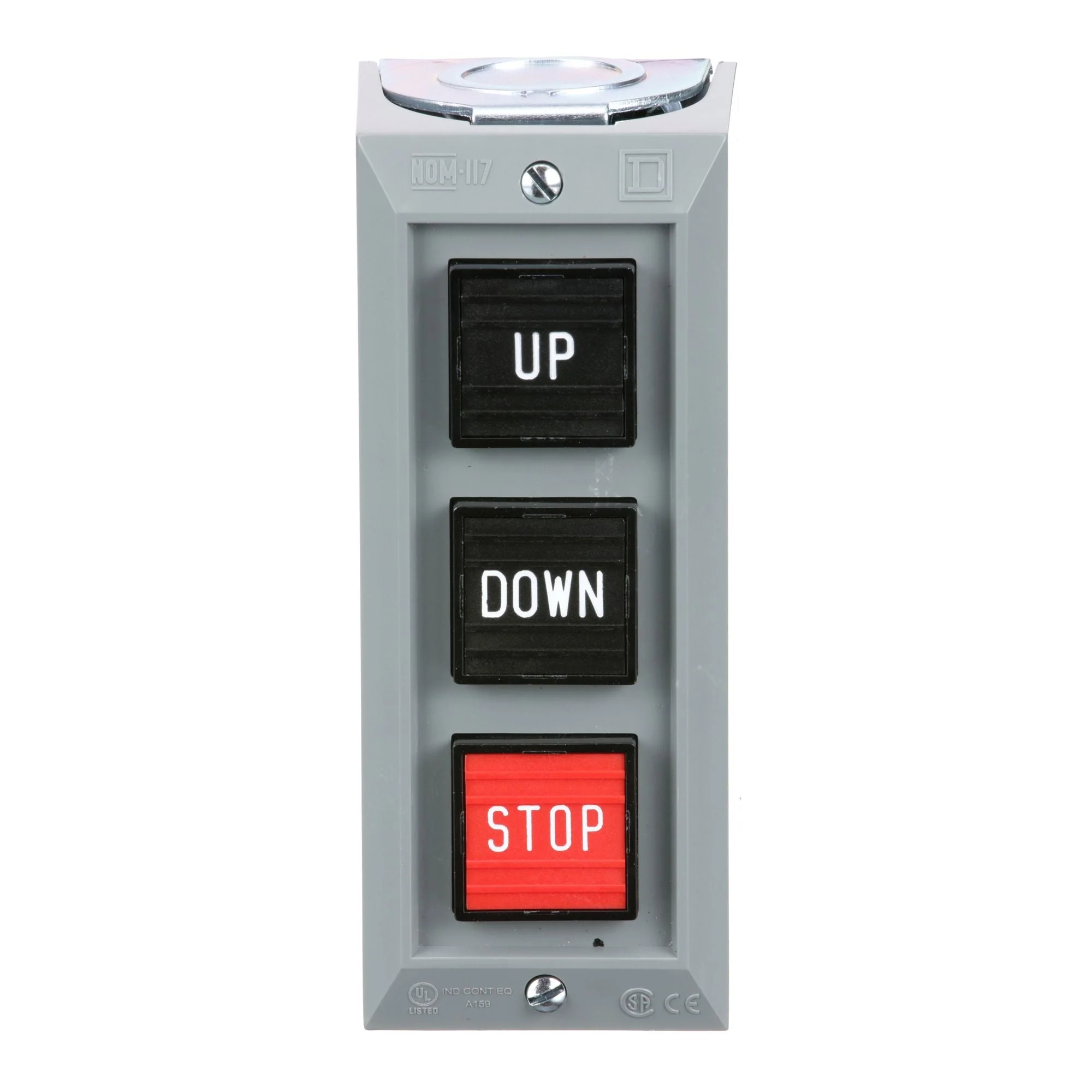

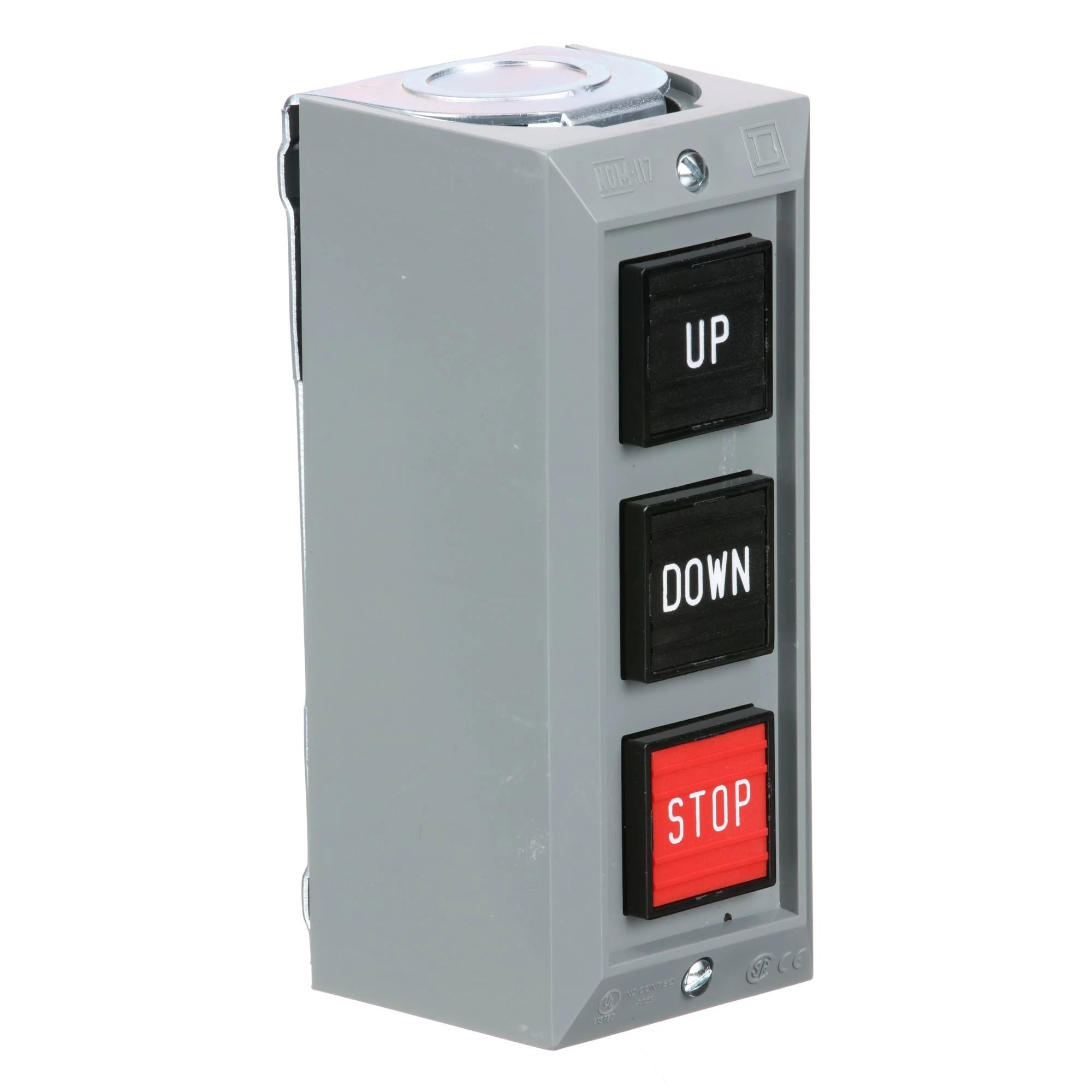

These standard duty control stations come complete with an enclosure, operators and contacts. This control station has three square momentary push buttons. It has a UP push button with a normally open and a normally closed contact. It has a DOWN push button with a normally open and a normally closed contact. It also has a STOP push button with a normally closed contact. This NEMA 1 general purpose control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. Control station is UL Listed and CSA certified.
