CA3KN22BD - Square D - Motor Control Part And Accessory
Overview
Product Specifications - CA3KN22BD - Square D Motor Control Part And Accessory
-
Part Number:
CA3KN22BD -
Manufacturer:
-
Family:
CA3K Series
-
Category:
-
Type:
CA3KN
Dimensions
-
Dimensions (HxWxD):
2.08 x 1.77 x 2.24 -
Weight:
0.50 lbs
Standards
Product Description - CA3KN22BD - Square D Motor Control Part And Accessory

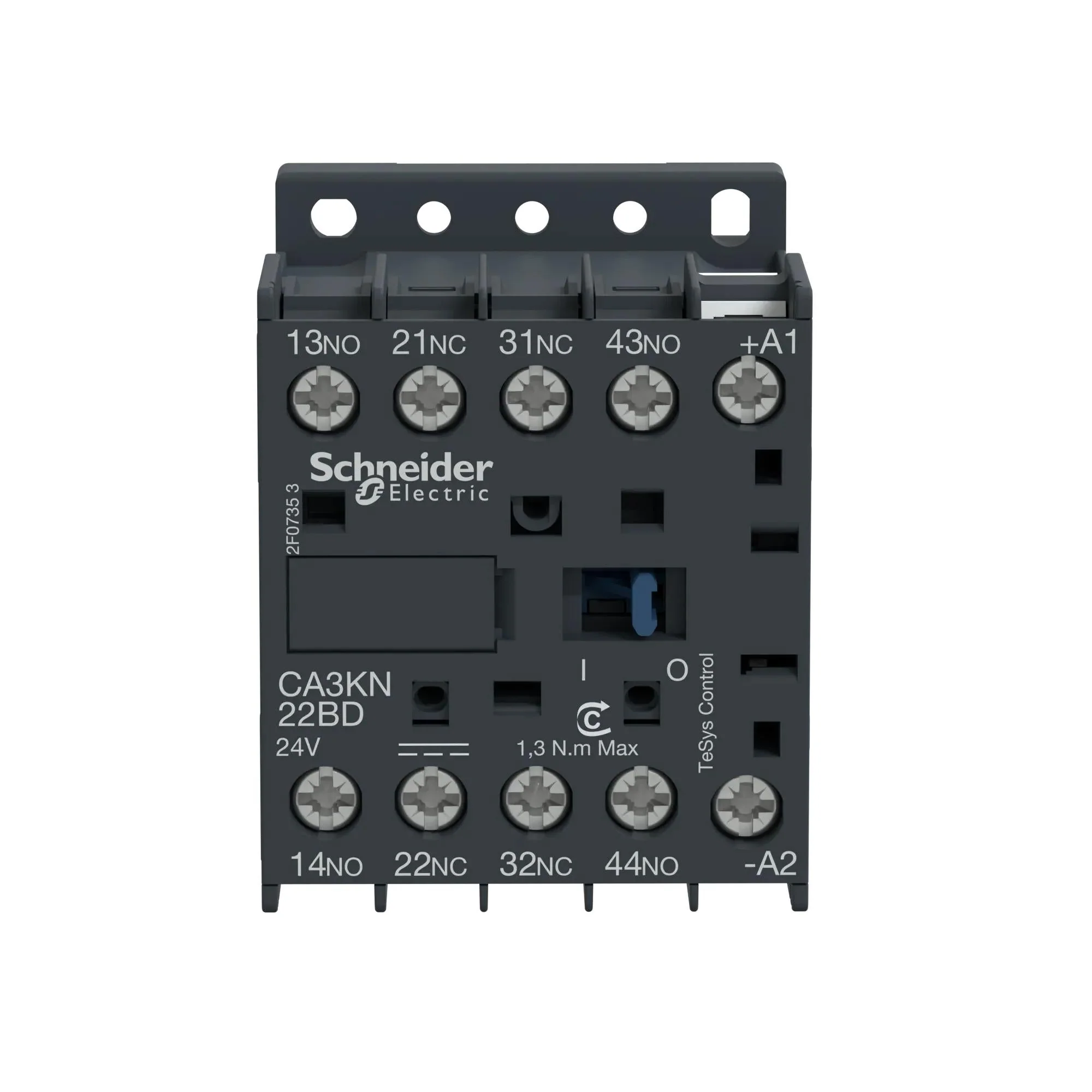

TeSys K control relay, 4 contacts (2NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 24V DC control circuit with no inrush consumption, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -25/+50°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh).
