8536SAO12V02H30S - Square D - Motor Starter
Overview
Product Specifications - 8536SAO12V02H30S - Square D Motor Starter
-
Part Number:
8536SAO12V02H30S -
Manufacturer:
-
Family:
Class 8536 -
Pole:
3 -
Amp
9 -
Volt:
600 -
Phase:
3
-
Category:
-
Type:
SAO
Dimensions
-
Dimensions (HxWxD):
6.81 x 3.50 x 4.22 -
Weight:
4 lb
Standards
Product Description - 8536SAO12V02H30S - Square D Motor Starter

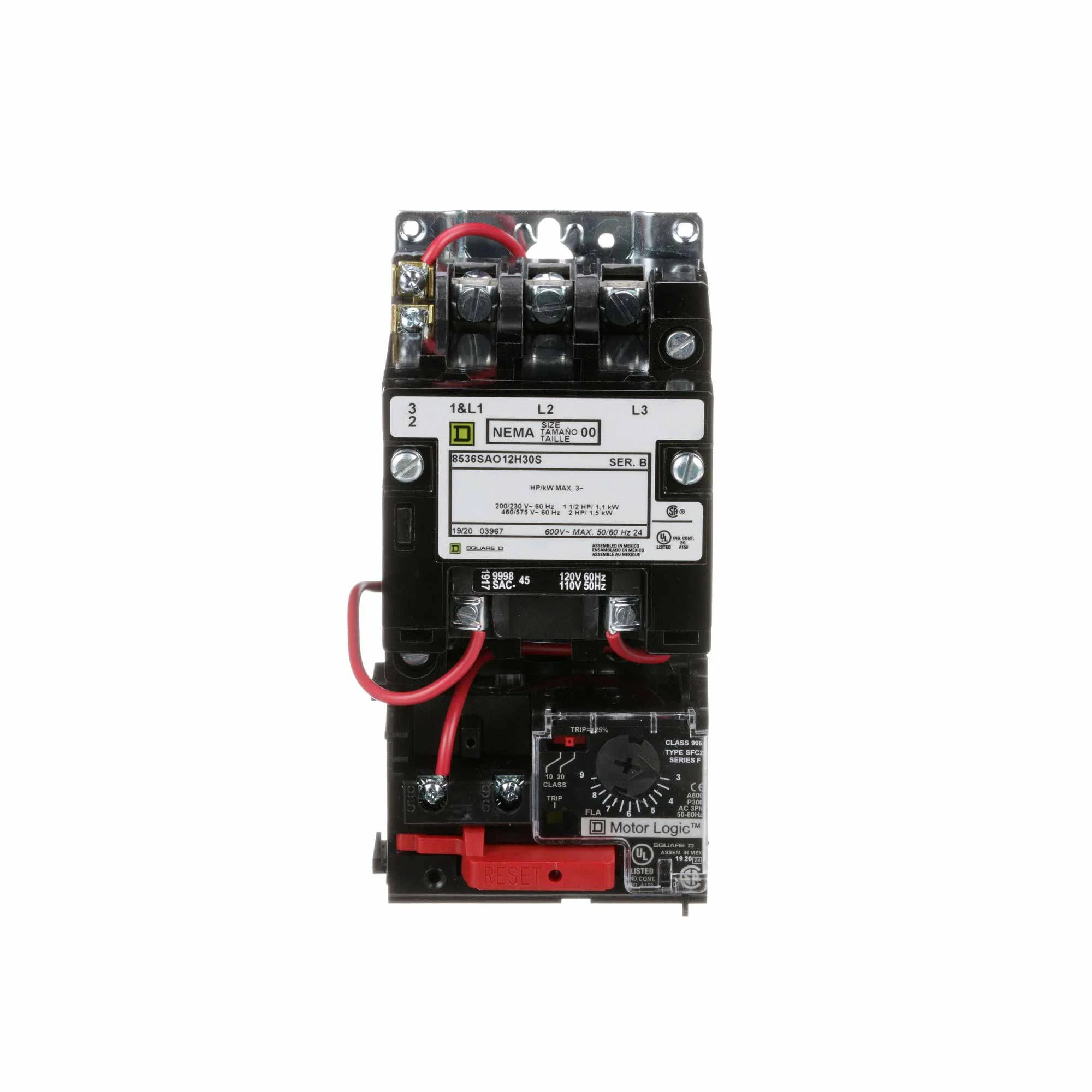

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 00 non-reversing starter has an 9 ampere rating. This NEMA Size 00 motor starter has 3 phase ratings of 1.5 HP at 220 and 230 VAC and 2 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a Motor Logic overload relay with a 3A to 9A range to sense over current conditions. This NEMA starter has a 100 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This NEMA starter is an open device without an enclosure. This starter is 6.77 inches tall, 3.50 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
