HL4IMA16C - Square D - Part And Accessory
Overview
Product Specifications - HL4IMA16C - Square D Part And Accessory
-
Part Number:
HL4IMA16C -
Manufacturer:
-
Family:
SURGELOGIC
-
Category:
-
Type:
HL4
Dimensions
-
Dimensions (HxWxD):
12.16 x 13.46 x 5.59 -
Weight:
4.85 lbs
Standards
Product Description - HL4IMA16C - Square D Part And Accessory

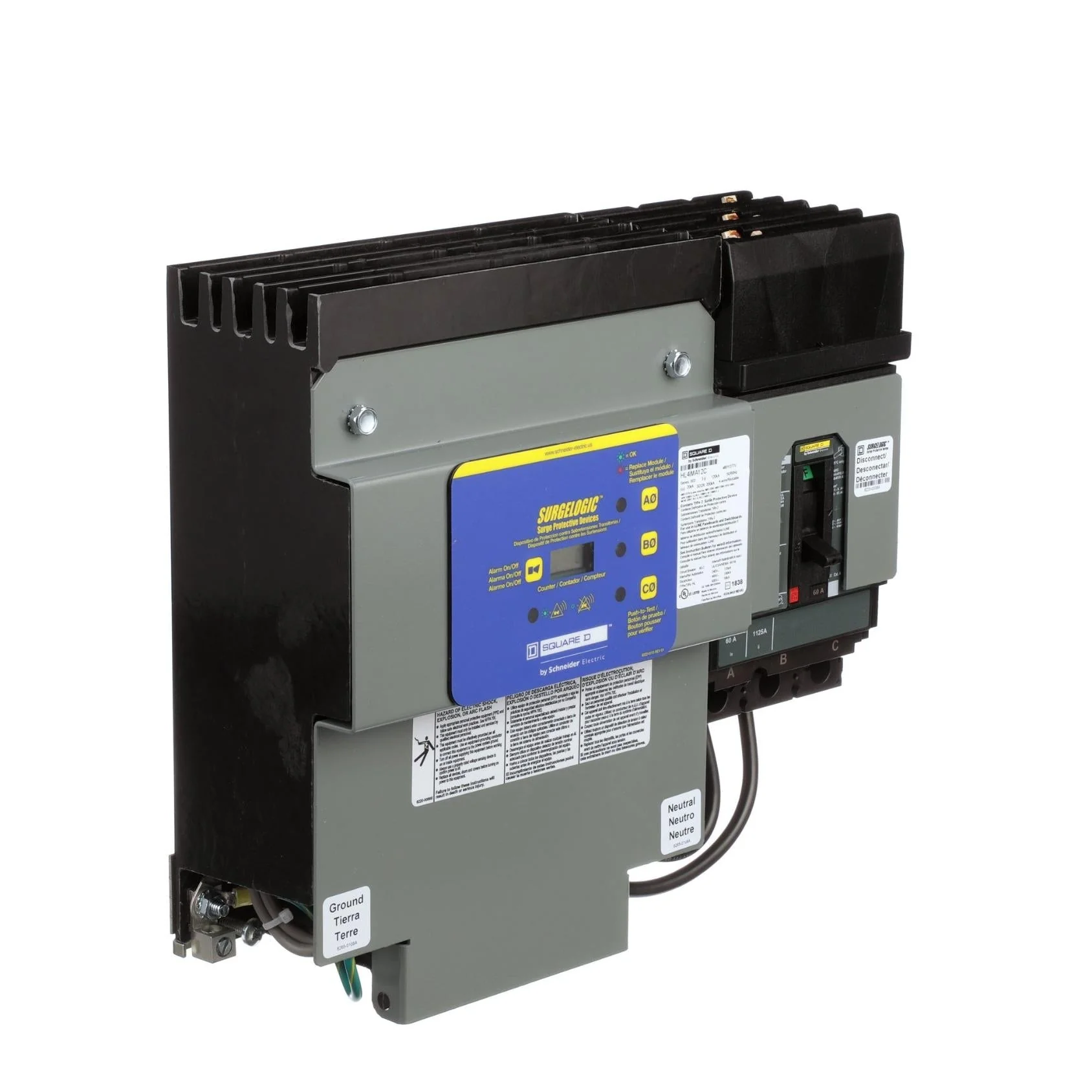

Surgelogic™ EMA and EBA series SPDs offer a full range of externally mounted surge suppression solutions. These units are designed to provide surge suppression from service entrance panels to point-of-use equipment. US and Canadian UL® Listed to the UL 1449 standard. Complies with requirements of NEC® Article 285 and CSA 22.2 No. 8- M1986 as appropriate. Complies with UL 96A 12th Edition Master Label requirements for Lightning Protection Systems. This Surelogic SPD device is a three phase, 4-wire grounded wye system that has a peak surge current rating of 160 kA. This device has operational voltage of 208Y/120 Vac and has a short circuit rating of 200 kA. This SPD is in a NEMA 2 enclosure that is 308.9 tall, 341.9 mm wide and 142.1 mm deep.
