9080LBA362101 - Square D - Power Distribution Block
Overview
Product Specifications - 9080LBA362101 - Square D Power Distribution Block
-
Part Number:
9080LBA362101 -
Manufacturer:
-
Pole:
3 -
Volt:
600
-
Category:
Dimensions
-
Dimensions (HxWxD):
2.88 x 1.94 x 1.78 -
Weight:
0.46 lbs
Standards
Product Description - 9080LBA362101 - Square D Power Distribution Block

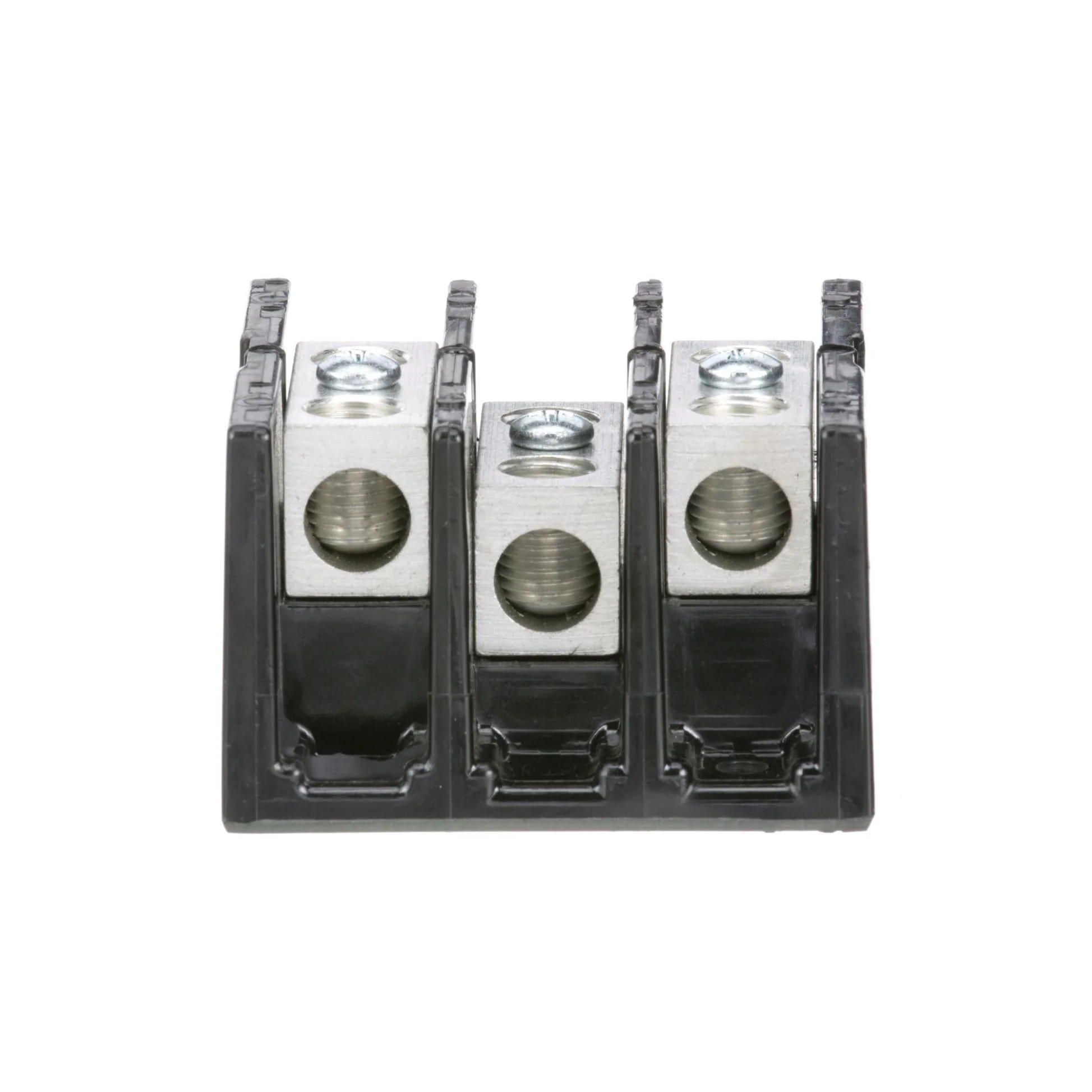

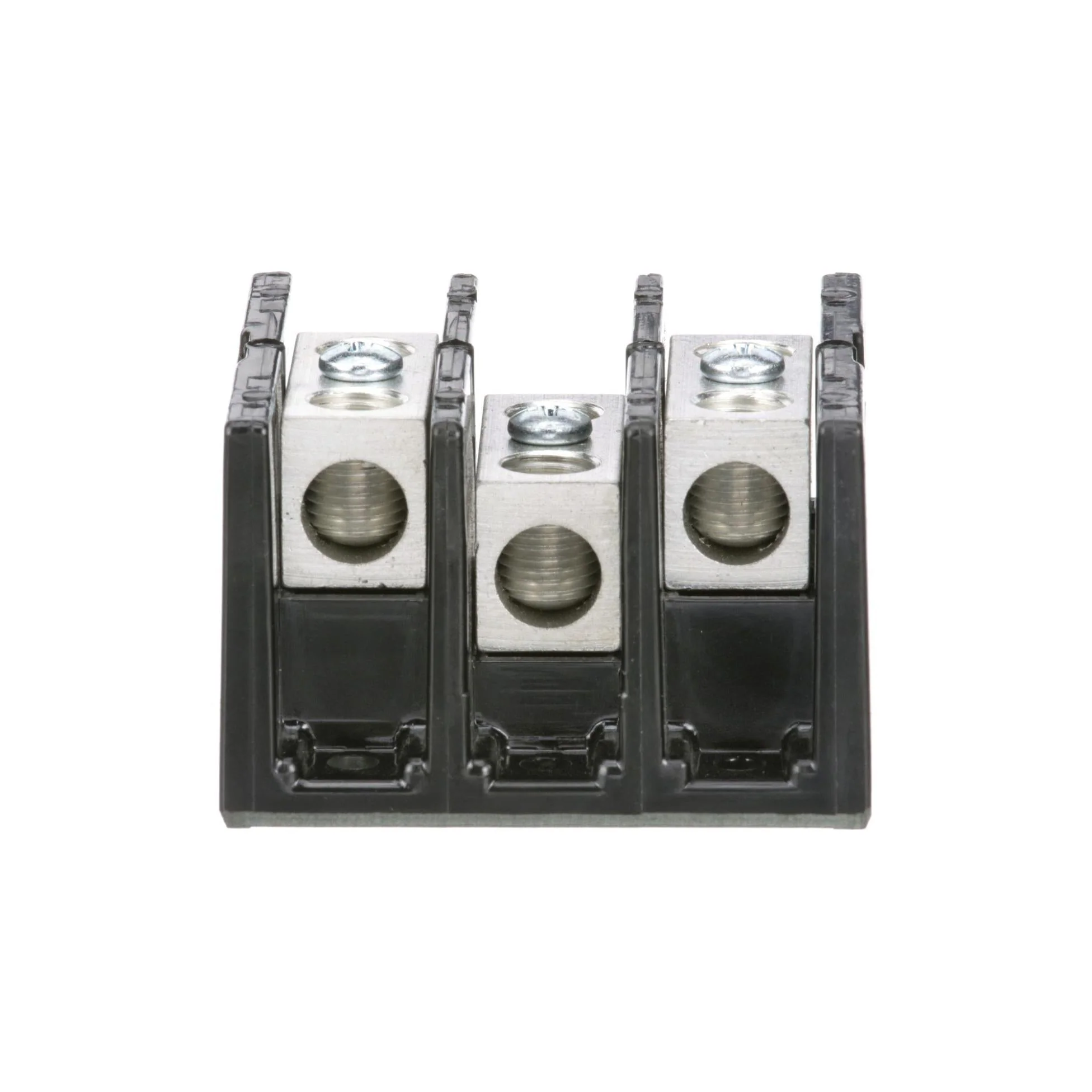

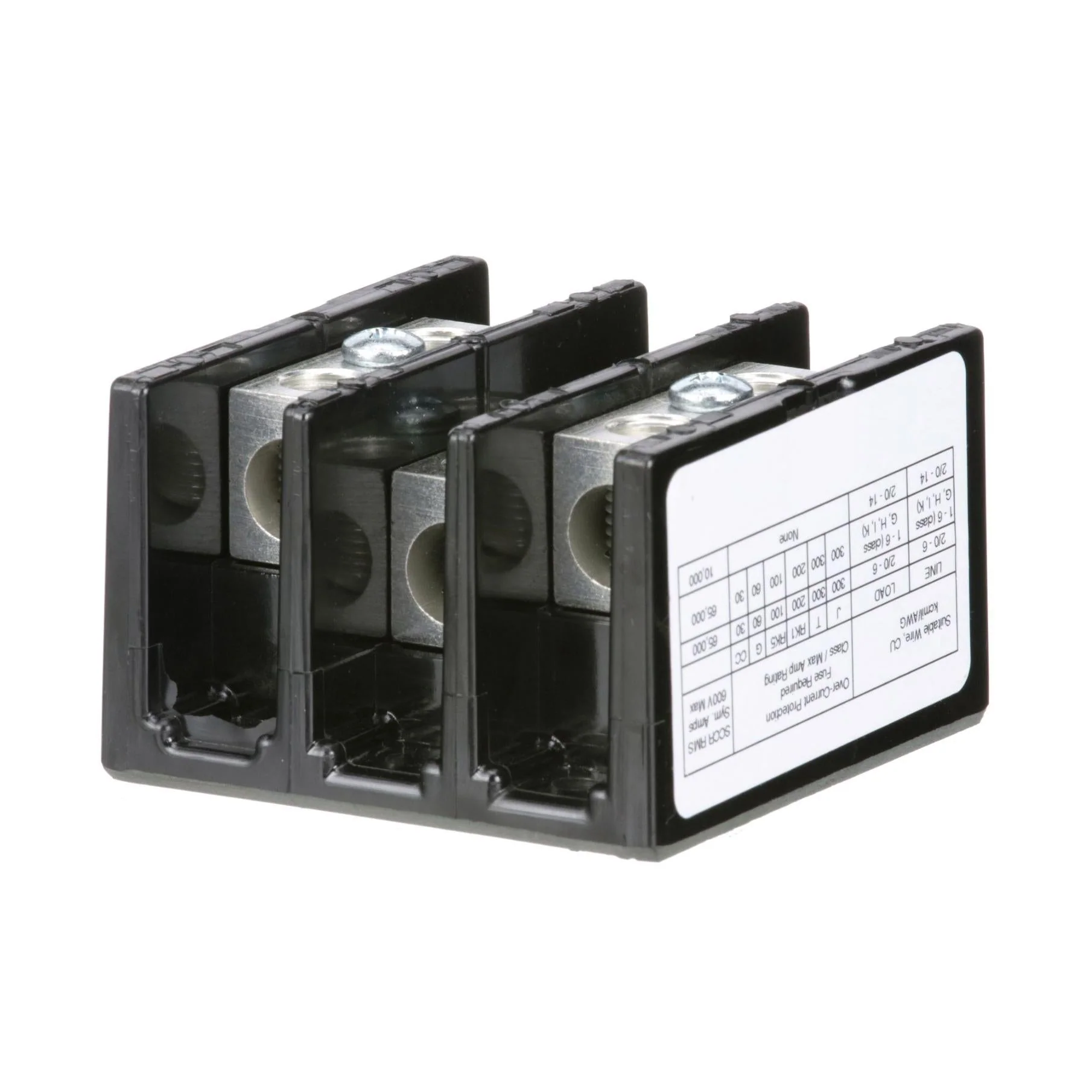

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has one lug opening on the line (main) side and one lug opening on the load (branch) side. The line side lug is rated to accept one or two #14 to 2/0 copper or aluminum wire. The load side lug is rated to accept one #14 to 2/0 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 175 amperes with copper wire and 135 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.
